AMF THERMATEX® Alpha One - Ceiling Tile
Verified by manufacturer 3 months ago
Tegular 15/90
Tegular 15/90
Mineral ceiling tile offering excellent sound absorption.
Application
Particularly suitable for offices, classrooms and learning applications.
Description
AMF THERMATEX® Alpha One offers a modern, white appearance and is the optimal solution for spaces that need excellent sound absorption.
Features and benefits:
- Excellent sound absorption (1.00 αw).
- Excellent light reflectance (88%).
- Clean room: ISO 4 as per ISO 14644-1.
- Indoor air comfort: GOLD status.
General information
Color | White |
Finish | Smooth |
Material | Mineral wool |
Shape | Square |
Length | 600 mm 1200 mm |
Width | 600 mm |
Height | 24 mm |
Warranty description | Manufacturer guidanceplease refer to EPD |
Uniclass | |
CAWS | K40/270 Boards K40/115 Unit/ modular suspended ceiling system K40/105 Suspended ceiling system K40/265 Infill units K40/10 Unit/ modular suspended ceilings |
Specification data - Mineral fibre infill units
Standard | ISO 4 as per EN ISO 14644-1. |
Third-party certification | Indoor Air Quality Class A+. |
Fire performance | |
Reaction to fire | To EN ISO 13501-1, Euroclass A2-s1, d0.Guidance for specification option: Class A as per ASTM E 84. |
Unit type | Thick board tile. |
Material | Mineral fibre. |
VOC emissions | A+. |
Recycled content | 50.8%. |
Unit size | |
Face dimensions | 600 x 600 mm.625 x 625 mm.1200 x 600 mm. |
Thickness | 24 mm. |
Surface texture | Flocked. |
Colour | White. |
Edge profile | Tegular. |
System | Exposed demountable - System C. |
Weight | 4.0 kg/m². |
Sound absorption | To EN ISO 11654 and EN ISO 354, αw = 1.00 (Class A). |
Sound attenuation | To EN ISO 10849-2 and EN ISO 717-1, Dn,f,w = 29 dB. |
Sound reduction | To EN ISO 10849-2 and EN ISO 717-1, Dn,f,w = 17 dB. |
Light reflectance | 88%. |
Thermal conductivity (to EN 12667) | λ = 0.040 W/mk. |
Air permeability | To DIN 18177, PM1 (≤ 30 m³/hm²). |
Constant humidity resistance | 95% RH. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany Manufacturer guidanceplease refer to EPD |
Country of product manufacture | Germany |
Material | Mineral wool |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidancePlease refer to EPD. |
Recyclability | Manufacturer guidancePlease refer to EPD. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50.8 % |
Literature
MINERAL Ceiling Solutions
AMF THERMATEX® Alpha One
Case studies

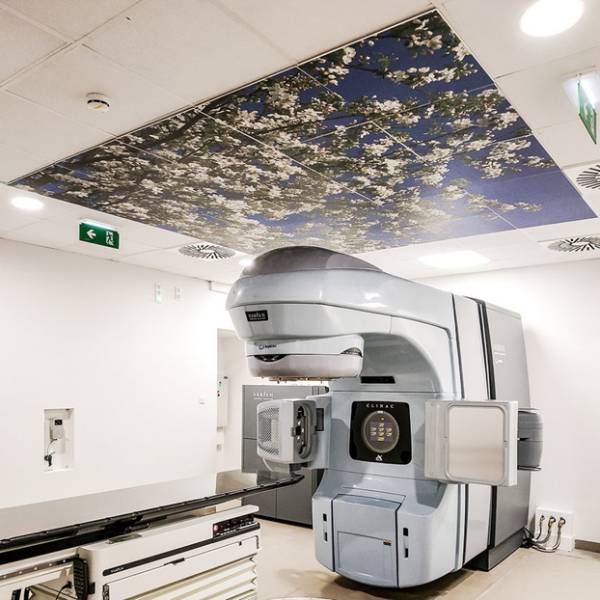

Institute of Oncology and Radiology
