Application

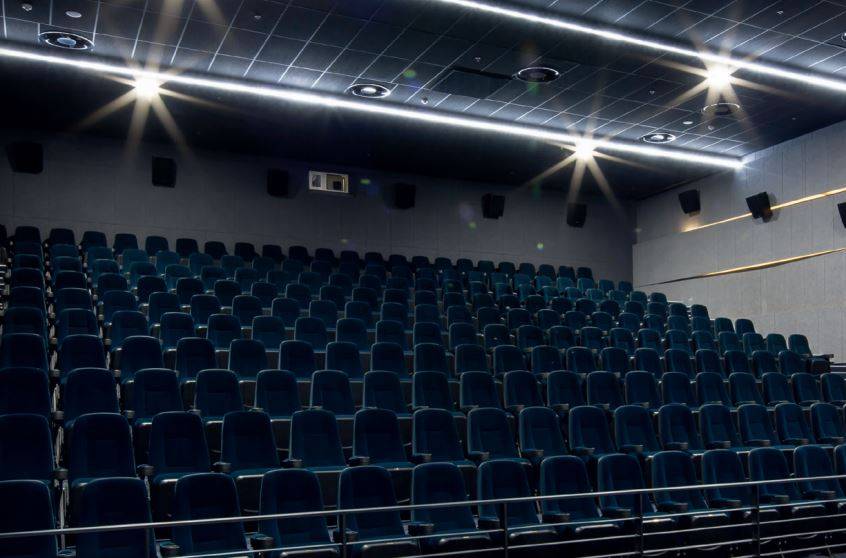

Can be applied in offices, restaurants, cinemas, classrooms and learning applications.

Description

AMF THERMATEX® Alpha Colour provides a modern appearance and is a good solution for spaces that require sound absorption qualities.


Features and benefits:

  • High performance.
  • Multiple colours available.
  • Designed for use with Knauf AMF suspended ceiling system C.
  • Wet-felt mineral tile with physical properties to assist installation.

General information

Color

Blue

Grey

Black

Silver

Green

Show more

Finish

Smooth

Material

Mineral wool

Shape

Square

Rectangle

Length

600 mm

1200 mm

Width

600 mm

Height

19 mm

Warranty description

-

Manufacturer guidance

please see EPD

Uniclass

Pr_35_93_13_53 Mineral fibre infill unitsPrimary

CAWS

K40/10 Unit/ modular suspended ceilings

K40/105 Suspended ceiling system

Specification data - Mineral fibre infill units

Unit type

High performance mineral ceiling tile with Class A sound absorption. Exposed Ventatec grid system.

Material

Felt.

Recycled content

43%.

Unit size

-

Face dimensions

600 x 600 mm.

610 x 610 mm.

625 x 625 mm.

1200 x 600 mm.

1220 x 610 mm.

1250 x 625 mm.

Thickness

19 mm.

Surface texture

Wet felt.

Colour

Black.

Silver.

Cream.

Granite.

Steel.

Green marble.

Copper.

Oak.

Brass.

Sandstone.

Concrete.

Edge profile

Square.

Sound absorption

To BS EN ISO 354 and EN ISO 11654, αw = 1 (Class A) black; To BS EN ISO 354 and EN ISO 11654, αw = 0.95 (Class A) other colours.

Weight

3.3 kg/m².

Sound attenuation

To EN ISO 10848-2 and EN ISO 717-1, Dn,f,w = 28 dB.

Reaction to fire

To EN 13501-1, Euroclass A2-s1, d0.

Edge detail

Board.

System

Exposed demountable - System C.

Sound reduction

To EN ISO 10140-2 and EN ISO 717-1, Rw = 14 dB.

ThermalConductivity

To EN 12667, λ = 0.040 W/mk.

Air permeability

To DIN 18177, PM1 (≤ 30 m³/hm²).

Constant humidity resistance

95% RH.

Third-party certification

Indoor Air Quality Rating A+.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Material

Mineral wool

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

Please refer to EPD

Recyclability

-

Manufacturer guidance

Please see EPD

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

43 %
