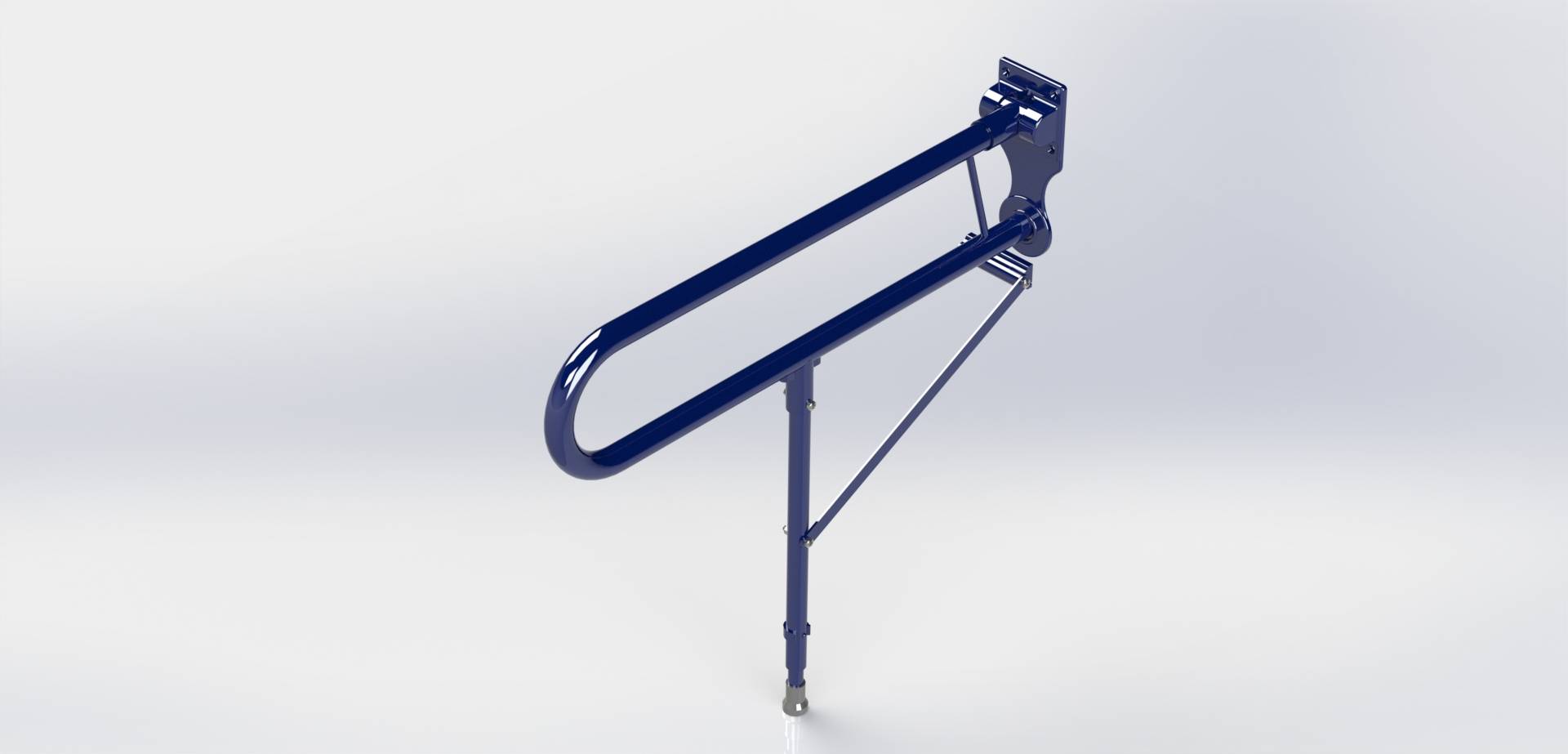

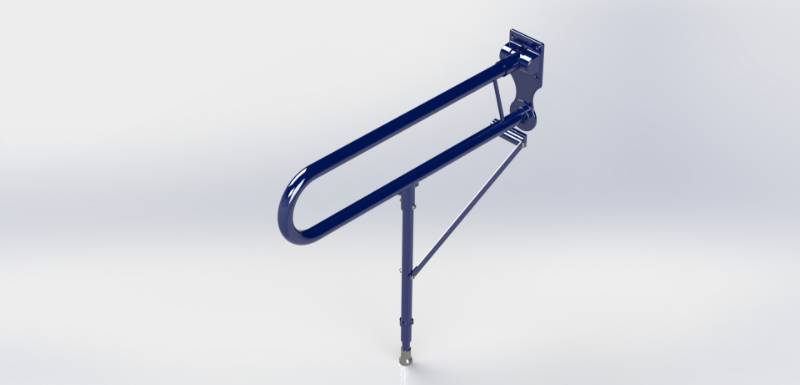

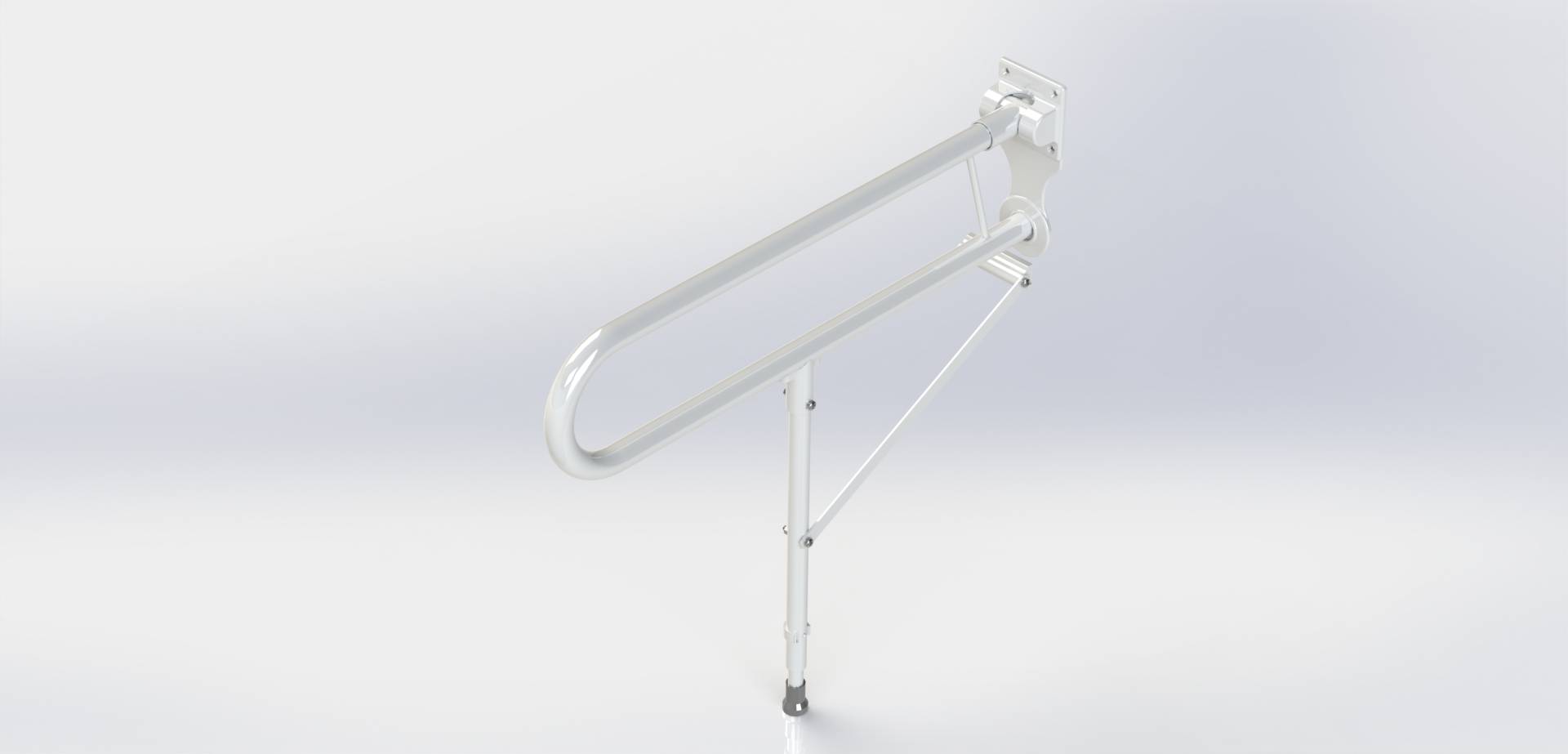

Alutec Hinged Support Rail
Verified by manufacturer 17 days ago
HSR 760
HSR 760
Hinged, aluminium support rail with various accessories.
Application
For use in bathrooms
Description
A hinged grab rail which provides sure and positive grip in the shower and ease of movement in and out of a bath. Designed to support the hand and arm, the rails are available with a range of accessories. Fixings not included.
Features and benefits:
- Smooth finish to ensure user comfort.
- Concealed ABS (acrylonitrile butadiene styrene) flanges to ensure insulation and no earthing required.
- Two standard finishes in line with Equality Act 2010.
- Tested in accordance with BS4592 part1:2006. Maximum recommended user load 75 kg. Tested up to 150 kg.
- Manufactured from 6063T4 aluminium which is a non-corrosive metal.
General information
Color | White Blue |
Finish | Powder-coated |
Material | Aluminium |
Length | 760 mm 850 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | N13/436 Handrails and grab bars N13/69 Support rails and grab bars |
Product range |
Specification data - Support rails
Form | Hinged. |
Materials | |
Body | Aluminium. |
Finish and colour | Powder-coated, dark blue.Powder-coated, white. |
Accessories | Not required. |
Length | 760 mm. |
Standard | To BS4592-1. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 77 % |
Literature
Neaco Bathing Range
