Aluprof MB-TT50 - 50 mm wide Curtain Wall System (PassivHaus Certified)

Verified by manufacturer 29 days ago

Aluprof MB-TT50 Standard - capped system

Aluprof UK Variant:
Third party certifications:
  • Passivhaus

    Passivhaus

    Certificate type

  • Qualicoat approval

    Qualicoat approval

    Certificate type

  • Cradle to Cradle Certified

    Cradle to Cradle Certified

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • EPD

    EPD

    Certificate type

Aluminium stick curtain wall facade and roof glazing system with exceptional weather and thermal performance confirmed by certificates granted by the Passive House Institute PHI Darmstadt.

Jump to:
+44 (0)161 9414005 Website

Application

External glazed curtain walling / facade system suitable for:

  • New build
  • Refurbishment
  • Passiv Haus schemes
  • Low-rise and high-rise buildings
  • Commercial
  • Public sector
  • Industrial
  • Residential
  • Retail
  • Leisure
  • Hospitality
  • Education

Description

The facade system offers exceptional insulation and weather performance, achieved by a special three-zone cascade drainage and ventilation design with efficient fabrication methods.

The standard configuration of the system can be enhanced to conform to security requirements.


Features and benefits:

  • PASSIV HAUS certified system to PhA+
  • Enhanced thermal insulation.
  • Glazing up to 64 mm thick available.
  • A wide variety of angular connections to allow greater design flexibility.
  • High-capacity mullion-transom connections, coupled with wide range of glazing to allow the use of large-size, heavy glazing panes up to 600 kgs.
  • Three-zone drainage and ventilation system, reinforced with a set of gaskets to provide protection against the most extreme weather conditions.
  • Selection of windows and doors available, including roof vents, concealed vents and parallel windows.
  • Semi-structural EFEKT glazing option.
  • Centre for Window and Cladding Technology (CWCT) tested and CE marking compliant.


Performance:

  • Air permeability to EN 12153:2004 and EN 12152:2004: Class AE 1350 Pa.
  • Wind load resistance to EN 12179:2004 and EN 13116:2004: 2700 Pa.
  • Water tightness to EN 12155:2004 and EN 12154:2004: Class RE 1800 Pa.
  • Impact resistance to EN 13049:2004 and EN 14019:2006: Class I5/E5.

General information

Color

Other

Finish

Anodized

Powder-coated

Manufacturer guidance

Anodized or polyester powder coated to Qualicoat or Qualideco standards (including 'seaside' standard).

Material

Aluminium

Glass

Shape

Square

Rectangle

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

25 year

Guidance for specification option:

Polyester powder coating. Consult manufacturer for details for marine and industrial environments.

Ten year

Guidance for specification option:

Anodized.

Uniclass

Ss_25_10_20_85 Stick curtain walling systemsPrimary

CAWS

H11/110 Curtain walling

Specification data - Stick curtain walling systems

Framing

-

Frame members

See 'Internal framing member' below for details.

Frame accessories

See 'External cover cap' below for details.

Fasteners

Manufacturer's standard.

Cladding units

-

Glass units

See 'Glazing' below for details.

Glazing accessories

See 'Glazing system' below for details.

Panels and facings

-

Material

-

Manufacturer guidance

Consult manufacturer for details and insert requirements, including required finish.

Thermal insulation

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Internal linings

-

Manufacturer guidance

Consult manufacturer for details and insert requirements, including required finish.

System accessories

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Type

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Glazing system

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Recyclability

Cradle to Cradle

EPD

Third party certifications

Passivhaus

Passivhaus

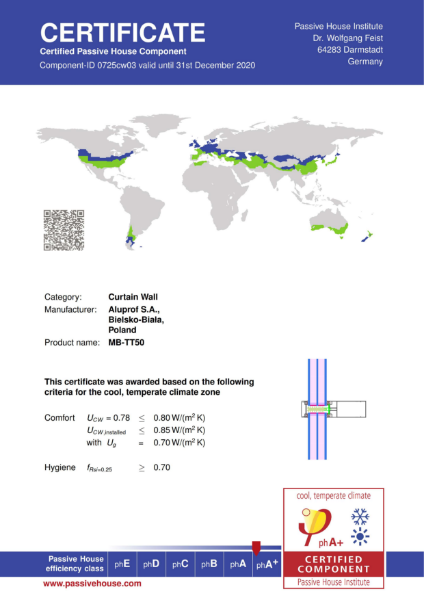

Aluprof MB-TT50 Passivhaus Certificate phA+

Qualicoat approval

Qualicoat approval

Aluprof Qualicoat Certificate 2022

Cradle to Cradle Certified

Cradle to Cradle Certified

Cradle to Cradle Certified™ - Bronze

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

Aluprof ISO 14001 Certificate

ISO 9001 Quality Management

ISO 9001 Quality Management

Aluprof ISO 9001 Certificate

EPD

EPD

Aluprof Environmental Product Declaration to EN 15804 - Facade Systems
