Aluminium Ventilation Grille 381
Description

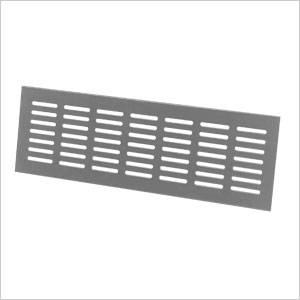

Rectangular, slotted-plate aluminium ventilator with toothed rear flanges for push-in interior wall or panel recess mounting.

  • Enables secure ventilation.
  • Choice of material and finish.
  • Choice of standard dimensions.
  • Faceplate overlaps wall opening by (maximum) 7 mm, each edge.

General information

Material

Aluminium alloy: AlMgSi 0.5 to DIN 1748

Uniclass 2015

Pr_35_93_13_51 Metal infill unitsPrimary

CAWS

K10/115 Metal stud partition system

K10/125 Metal stud partition system

K10/145 Wall lining system (metal studs)

K10/165 Wall lining system (metal framing)

K10/175 Wall lining system (metal furrings)

K10/185 Wall lining system (adhesive)

K10/205 Lining on timber

K11/796 Metal stud partition system

K11/815 Plywood

K11/890 Board

K13/110 Wood panelling

K13/120 Wood-veneered panel lining

K13/140 Proprietary laminated plastics-veneered panel lining

K13/145 Proprietary plastics cladding

K13/150 Purpose-made

K13/160 Proprietary

K13/170 Acoustic panel lining

K20/230 Timber board

K20/30 Timber board

K21/150 Wood lining

K21/160 Wood lining on battens

K21/30 Wood lining on battens

K30/110 Relocatable partition system

K30/130 Relocatable partition system

K30/135 Relocatable partition/ Ceiling system

K30/150 Plasterboard panel partitions

K30/160 Plasterboard laminated partitions

K32/140 Duct/ wall linings – panels only

K32/150 Duct/ wall linings – panels and proprietary frames

K32/160 Duct linings – preplumbed panels and proprietary frames

U90/320 External air intake grilles

Specification data - Metal infill units

Product Reference

Aluminium Ventilation Grille 381

Plate dimensions (w x h)

400 x 60 mm

Free area: 4,400 mm². Available Natural anodized, RAL 8022, RAL 9010.

500 x 60 mm

Free area: 5,900 mm². Available Brass, Natural anodized, RAL 8022, RAL 9010.

2000 x 60 mm

Free area: 24,400 mm². Available Natural anodized, RAL 8022, RAL 9010.

300 x 80 mm

Free area: 4,300 mm². Available Brass, Bronze anodized, Gold anodized, Natural anodized, RAL 8022, RAL 9010.

400 x 80 mm

Free area: 5,600 mm². Available Brass, Bronze anodized, Gold anodized, Natural anodized, RAL 8022, RAL 9005, RAL 9010.

500 x 80 mm

Free area: 7,400 mm². Available Brass, Bronze anodized, Gold anodized, Natural anodized, RAL 8022, RAL 9005, RAL 9010.

600 x 80 mm

Free area: 8,700 mm². Available Gold anodized, Natural anodized, RAL 8022, RAL 9010.

1000 x 80 mm

Free area: 14,900 mm². Available Natural anodized, RAL 8022, RAL 9010.

2000 x 80 mm

Free area: 30,500 mm². Available Gold anodized, Natural anodized, RAL 8022, RAL 9010.

300 x 100 mm

Free area: 6,100 mm². Available Bronze anodized, Natural anodized, RAL 8022, RAL 9010.

400 x 100 mm

Free area: 7,800 mm². Available Bronze anodized, Gold anodized, Natural anodized, RAL 8022, RAL 9010.

500 x 100 mm

Free area: 10,400 mm². Available Bronze anodized, Gold anodized, Natural anodized, RAL 8022, RAL 9010.

600 x 100 mm

Free area: 12,200 mm². Available Bronze anodized, Natural anodized, RAL 8022, RAL 9010.

1000 x 100 mm

Free area: 20,900 mm². Available Bronze anodized, Gold anodized, Natural anodized, RAL 8022, RAL 9010.

2000 x 100 mm

Free area: 42,700 mm². Available Gold anodized, Natural anodized, RAL 8022, RAL 9010.

500 x 130 mm

Free area: 14,900 mm². Available Natural anodized, RAL 8022, RAL 9010.

1000 x 130 mm

Free area: 29,800 mm². Available Natural anodized, RAL 8022, RAL 9010.

2000 x 130 mm

Free area: 61,000 mm². Available Natural anodized, RAL 8022, RAL 9010.

500 x 150 mm

Free area: 17,900 mm². Available Natural anodized, RAL 8022, RAL 9010.

2000 x 150 mm

Free area: 73,200 mm². Available Gold anodized, Natural anodized, RAL 8022, RAL 9010.

Finish (aluminium components)

Aluminium, anodized, bronze

20 µ.

Aluminium, anodized, gold

20 µ.

Aluminium, anodized, natural

20 µ. Type E6/ C34 to DIN 17611.

Brass

Aluminium, polyester powder coated, RAL 8022 (dark brown)

60–80 µ.

Aluminium, polyester powder coated, RAL 9005 (black)

60–80 µ.

Aluminium, polyester powder coated, RAL 9010 (white)

60–80 µ.

Standard product features

Material:

Aluminium alloy: AlMgSi 0.5 to DIN 1748.
