Aluminium Stair Nosings with Ribbed or Castellated Treads - Stair Edgings

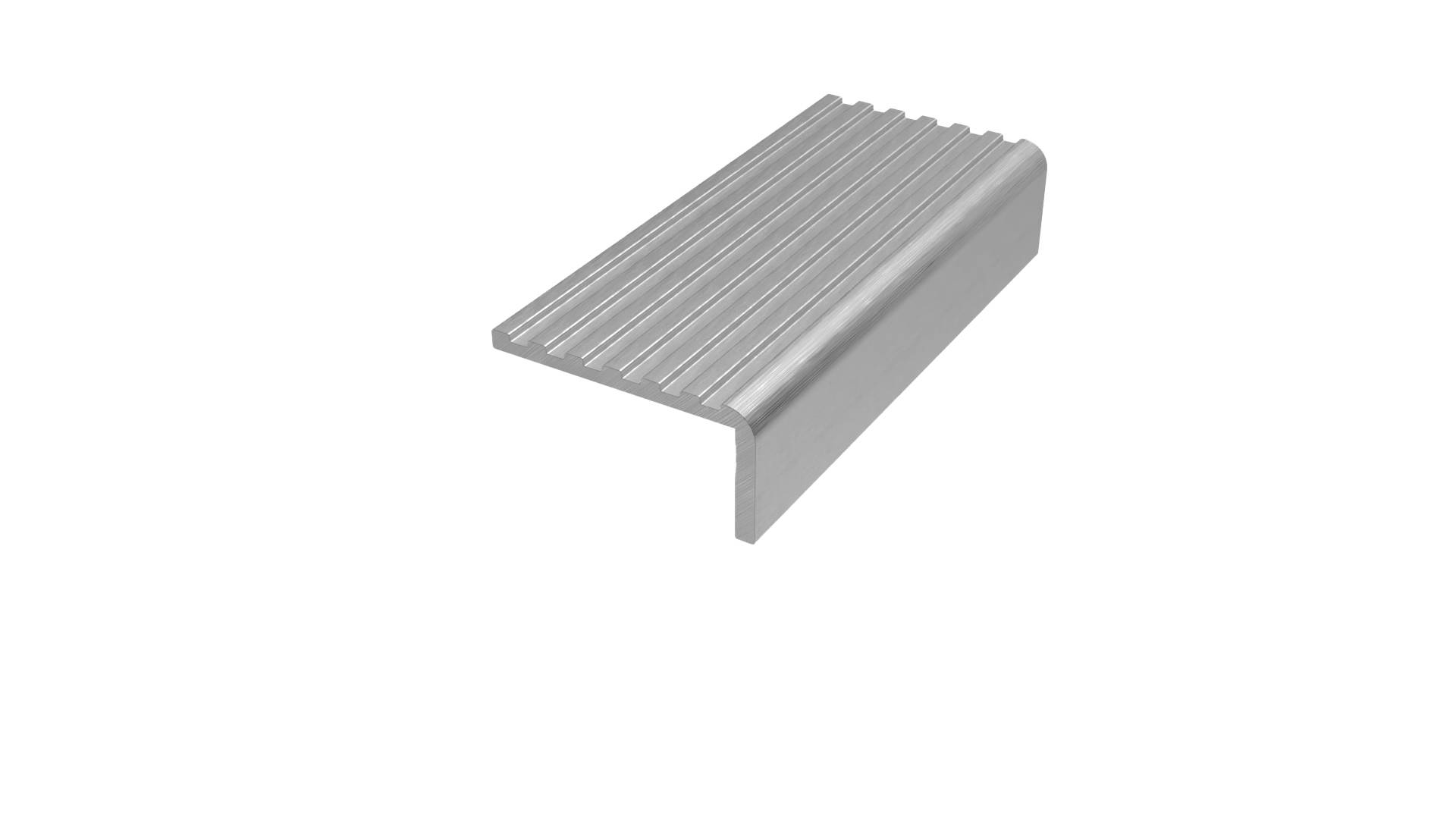

Name: Aluminium Stair Nosings with Ribbed or Castellated Treads - Stair Edgings
Brand: CAT (Carpet Accessory Trims) Limited
SKU: vtQEQLo5ZLoyeRGDkyZ17S

Verified by manufacturer today

AN4

CAT (Carpet Accessory Trims) Limited

A range of solid aluminium stair nosings with ribbed or castellated treads and ramped or square back edge.

Jump to:

Request BIM

+44 (0)1582 561500 Website

Application

Stair nosings suitable for a range of applications.

AN1SLR: With bevelled back edge for retrofitting onto steps.
AN1SLR-R: With bevelled back edge for retrofitting onto rake back steps.
AN4: With square back edge for abutting to flooring.

Suitable for finishing the nose edge of stone and timber stairs and stairs fitted with ceramics or hard flooring, e.g. laminates, LVT, vinyl, lino. These stair nosings are suitable for installations in medium to heavy foot traffic situations such as in:

Hotels
Theaters and cultural venues
Libraries and other public buildings
Galleries, museums and exhibition spaces
Cafes
Restaurants
Stadiums and sports establishments
Shops and other retail areas
Schools and other education establishments
Commercial offices
High-end residential buildings
Pubs
Clubs
Airports and other transport hubs
Healthcare facilities, hospitals and clinics

Description

A range of solid aluminium stair nosings with ribbed or castellated treads.

Features and benefits of stair nosings:

Can be cut to length up to the maximum stated.
Stair nosings can be supplied drilled countersunk or undrilled (to be specified when ordering).
Stair nosings are suitable to adhesive-only, adhesive and mechanical or mechanical only fixing. Stair nosings are drilled for size 6 screws.
A wide range of other stair nosings are available, specified separately.
AN4 stair nosing is also available in a black anodized finish (specified separately).

General information

Color	Silver Guidance for specification option: Mill Aluminium finish, LRV: 71.65 Satin Aluminium finish, LRV: 65.40 Polished Aluminium finish, LRV: 75.55 Black Guidance for specification option: Black Anodised finish, LRV: 4.80
Finish	Mill Satin Polished Anodized Guidance for specification option: Black Anodised, AN4 only.
Material	Aluminium Guidance for specification option: Base: Aluminium Alloy 6063 T6
Shape	Square Other
Length	3200 mm Guidance for specification option: Supplied in maximum lengths of 3.200m: AN1SLR in Mill, Satin & Polished Aluminium finishes AN1SLR-R in Mill, Satin & Polished Aluminium finishes AN4 in Mill, Satin & Polished Aluminium finishes Bespoke Guidance for specification option: AN1SLR, AN1SLR-R and AN4 stair nosings are supplied cut to customer lengths or in maximum (stock) lengths. 2700 mm Guidance for specification option: AN4 in Black Anodised finish

Uniclass	Pr_35_90_31_74 Rigid stair nosingsPrimary
CAWS	L30/30 Proprietary stairs L30/310 Proprietary stairs L30/590 Applied stair nosings M50/75 Stair nosings and trims M50/750 Stair nosings and trims M51/550 Stair nosings and trims

Product range	Aluminium Stair Nosings

Specification data - Rigid stair nosings

Classification data
Profile	Square riser, square back edge.
Base section	-
Material	Aluminium alloy 6063 T6.
Finish	Mill. Satin. Polished. Black anodized. Guidance for specification option: Black.
Size	-
Rise x going	21.5 x 44 mm.
Gauge	3.5 mm.
Installation	To be supplied pre-drilled and countersunk in the channel for concealed fixing and on-site retro fitting of the infill. To be supplied undrilled for adhesive fixing using F. Ball & Co. Ltd Stycco Flex Rapid Curing Flexible Adhesive.
Length	3200/ 2700 mm. Guidance for specification option: 3200 mm in mill, satin and polished and 2700 mm in black anodized. Manufacturer guidance Maximum.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	United Kingdom
Material	Aluminium Guidance for specification option: Base: Aluminium Alloy 6063 T6
Recyclability	100% recyclable at suitable disposal centres
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 %
