Aluminium Rail and Pedestal System for Decking
Adjustable pedestal and aluminium rail joist system for supporting decking.
For use with MegaPad and MiniPad Paving Support Pads.
Adjustable pedestal and aluminium rail joist system for supporting decking.

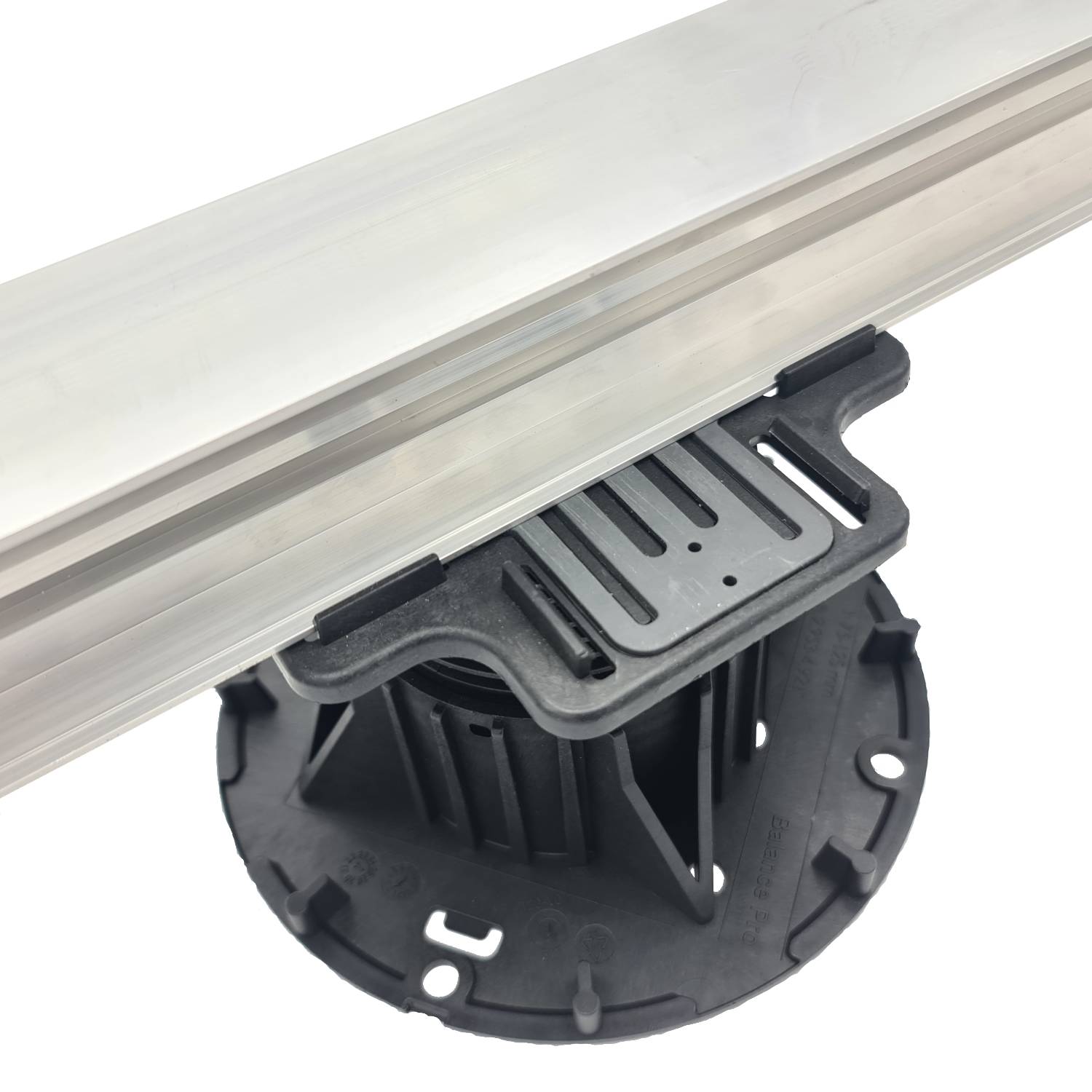

Includes integrated clip and locking mechanism for fixing the aluminium joist into adjustable height Minipads or Megapads. Deck boards are fixed to the rail/ joist.
Features and benefits:
- Includes aluminium box detailed rail, 20mm, 25mm or 50mm high - 60 mm wide.
- Rail length 2 m, 2.5 m as standard, up to 5 m lengths available.

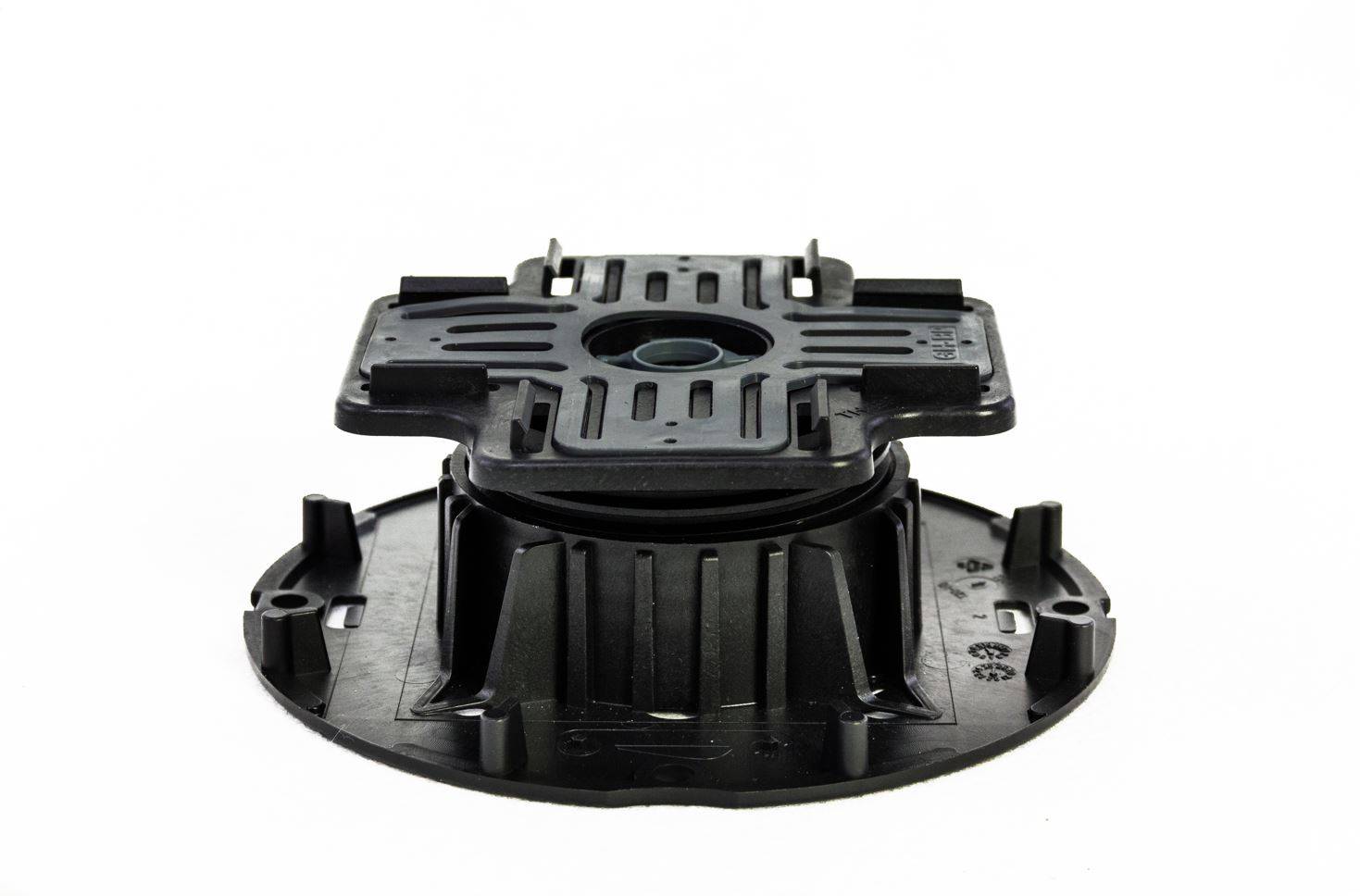

- Pedestal headpiece clips are installed on the headpiece of the pedestal.
- Fully integrated, mechanical fixing free substructure.
- Greatly enhances lateral stability.
- Allows pedestals to be placed at larger centres whilst maintaining weight tolerance.
- Ultra-low height threshold for decking; 30 mm from the floor to the underside of the deck board.
- Very high weight tolerance: 1560 kg, with a break point of 2057 kg.
Applications:
For use with MegaPad and MiniPad Paving Support Pads.
Uniclass 2015 | |
CAWS | J21/467 Support system for precast concrete paving slabs J21/85 Precast concrete paving slabs J31/370 Precast concrete paving slabs J31/375 Paving tiles J31/377 Support system for paving slabs or tiles J41/467 Support system for precast concrete paving slabs J41/90 Precast concrete paving slabs J42/467 Support system for precast concrete paving slabs Q37/460 Support pedestals Q55/110 Deck Q55/395 Support pedestals |
Product Reference | Aluminium Rail and Pedestal System for Decking |
Pedestal height | 10–20 mm10–25 mm22–30 mm28–40 mm35–50 mm50–75 mm75–120 mm115–220 mm215–320 mm315–420 mm415–520 mm515–620 mm615–720 mm715–820 mm815–920 mm915–1020 mm |
Accessories | Not requiredSlope corrector, 1%Slope corrector, 2%Slope corrector, 3% |
Standard product features | Rail: Aluminium box profiled rail with upper and lower horizontal ledges to fit into headpiece clips. Rail sizes:
Pedestal head diameter: 150 mm. Pedestal base plate diameter:
Pedestal to integrated rail clip height: 5 mm. Pedestal to integrated rail clip width: 60 mm. Pedestal loading:
Maximum span between pedestals:
|
Product Options | Accessories: - Slope correctors: Multiple slope correctors can be combined for larger falls. |
