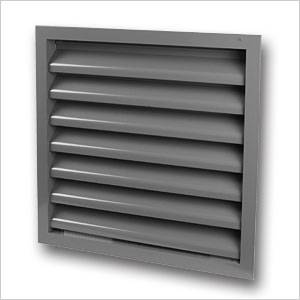

Aluminium Louvre Grille 453 Verified by manufacturer 4 months ago
Verified by manufacturer 4 months ago
Aluminium ventilator, for walls.
Description
Framed panel, single bank, inclined blade, fixed louvre aluminium ventilator with roll formed coil blades, for wall mounting.
- Enables secure, weather resistant ventilation with exclusion of insects. Physical free area: 41 %.
- Aluminium profiles with choice of finish. Blades at 66 mm centres.
- Suitable for insertion into wall openings from exterior with flange overlap.
- 5 mm projecting exterior flange projection.
- Interior reveal fixing.
- Dimensions (minimum): 300 x 300 mm. Made to measure.
- Panel thickness: 64.5 mm.
General information
Material | Aluminium alloy: AlMgSi 0.5 to DIN 1748 |
Uniclass | |
CAWS | L10/650 Metal louvres |
Product range |
Specification data - Aluminium louvre panel units
Product Reference | Aluminium Louvre Grille 453 |
Aperture (w x h) | ___ x ___ mmAs drawing ___ |
Mounting | BackframeNonstandard option. Required for panels larger than 3 m². Bracket type 429Standard option. Screw fix to reveal. As drawing ___ |
Finish (aluminium components) | Polyester powder coating, RAL colour ___, sheen ___ %60–70 µ. Polyester powder coating, Syntha Pulvin colour ___, sheen ___ %60–70 µ. |
Other requirements | NoneCoupling barFor multiple panel unit. Drainage profileProjecting drip for fixing to bottom flange. Dust filterWith aluminium frame. Fixes to interior of louvre panel. Mesh, 2.3 x 2.3 mmNonstandard option. Grade 304 stainless steel. Mesh, 6 x 6 mmStandard option. Grade 304 stainless steel. Water channelFor insertion behind bottom louvre. Projecting internal collection channel with drip to exterior. |
Standard product features | Material: Aluminium alloy: AlMgSi 0.5 to DIN 1748. |
Literature
Louvres
