Aluminium Gutter - Welland - Gutter
Verified by manufacturer 11 days ago
J57S UP (Anodised Finish)
J57S UP (Anodised Finish)
ISO 9001 Quality Management
Certificate type
Independent sustainability assessment
Certificate type
EN 13501-1 (Efectis)
Certificate type
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
Certificate type
Aluminium contemporary ogee profile gutter, 182 x 140 mm.
Application
- Residential.
- Education.
- Healthcare.
- Commercial.
- Leisure.
- Mixed Use.
- Infrastructure.
- Retail.
Description
Dales River range of aluminium gutters were developed in response to customer demand for a contemporary version of the ogee gutter profile. The systems are direct fixed to the fascia, eliminating the need for support brackets. Dales over-strap joint system with silicon sealant allows for aluminium’s high coefficient of expansion. There are four profiles in the range.
Features and benefits:
- Polyester powder coated to BS 12206-1:2004.
- Available in gloss, matt and satin (subject to availability).
- Also available anodized.
- A wide range of standard components are available.
- Purpose-made components can be manufactured to suit individual projects.
General information
Color | Beige Black Blue Bronze Brown Manufacturer guidanceAvailable in a range of colours, contact manufacturer for details. |
Finish | Powder-coated Guidance for specification option: PPC - Matt. PPC - Satin. PPC - Gloss. Also available in special effect: PPC - Timber grain. PPC - Corten. PPC - Simulated anodized. Metallic Guidance for specification option: PPC - Metallic. Anodized |
Material | Aluminium |
Shape | Other Guidance for specification option: Ogee. |
Length | 3000 mm |
Width | 182 mm |
Height | 140 mm |
Warranty description | 25 year Guidance for specification option: Contact manufacturer for further details. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
 IFC | - | 1 |
Third party certifications
ISO 9001 Quality Management
ISO 9001:2015 Quality Assurance
Independent sustainability assessment
CLOSED LOOP RECYCLING SCHEME (CAB)
EN 13501-1 (Efectis)
INTERPON-D PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
SYNTHA PULVIN PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION
Literature

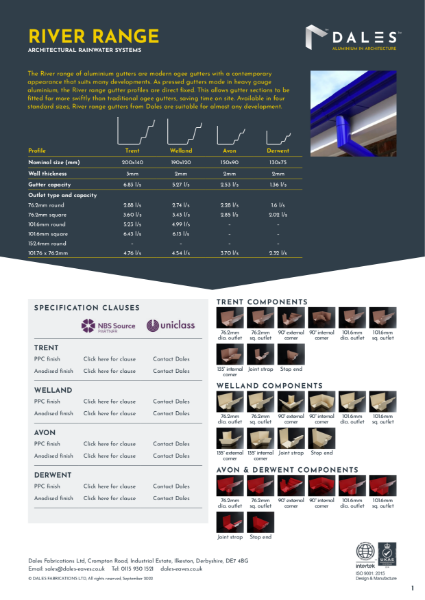

River Gutter Range
Syntha Pulvin Fire Certificate
