Aluminium Gutter - Nene 1 - Gutter
Verified by manufacturer 7 days ago
J57S UP (Anodised Finish)
J57S UP (Anodised Finish)
ISO 9001 Quality Management
Certificate type
Independent sustainability assessment
Certificate type
EN 13501-1 (Efectis)
Certificate type
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
Certificate type

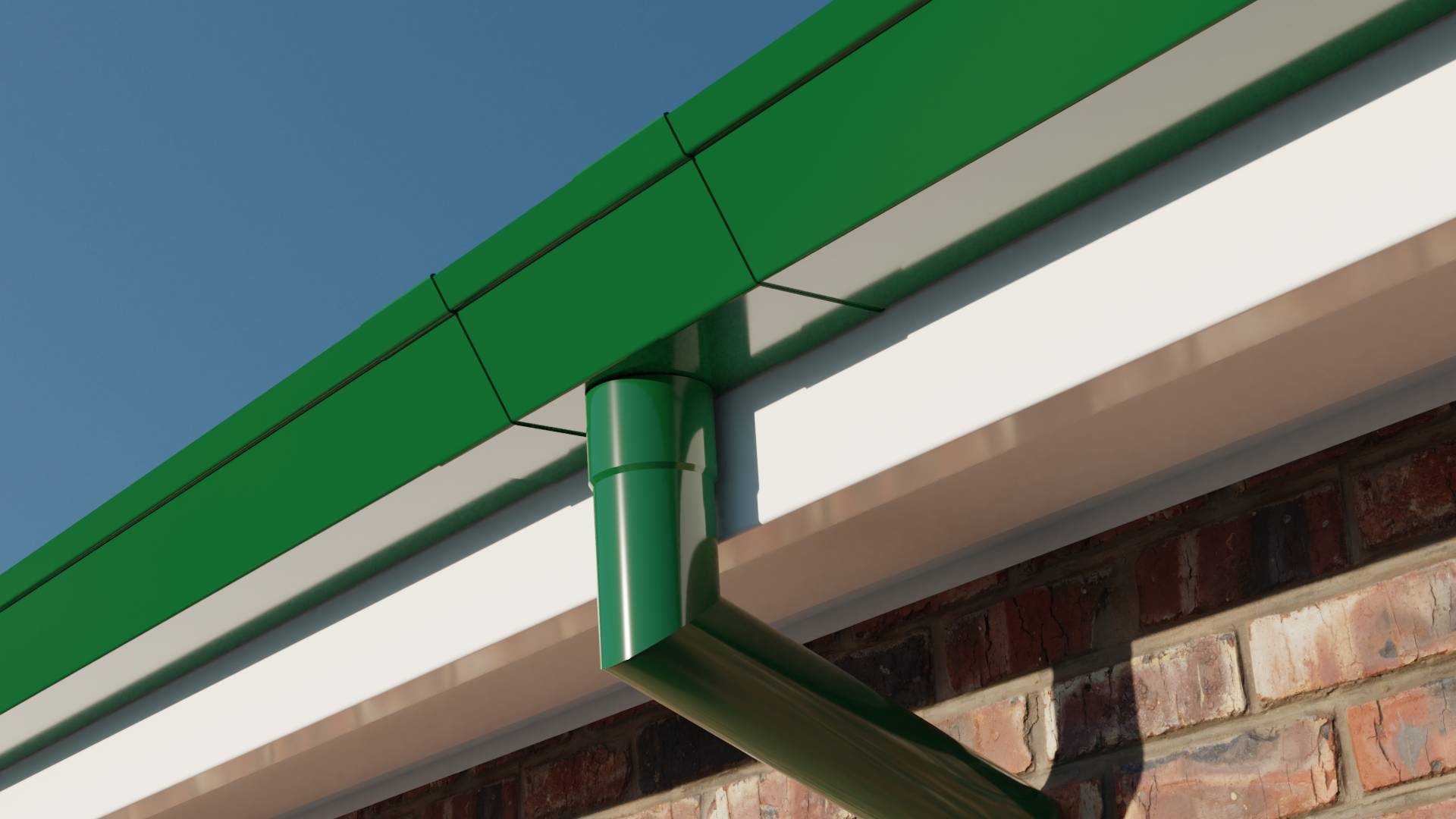

Heavy duty aluminium gutter, angled front, 150 x 100 mm.
Application
- Residential.
- Education.
- Healthcare.
- Commercial.
- Leisure.
- Mixed Use.
- Infrastructure.
- Retail.
Description
Dales Nene gutter system is a heavy-duty aluminium system combining functional requirements with many practical and design benefits. Its large throat means that a wide variety of eaves configurations can be accommodated, whilst its large cross-sectional area results in high hydraulic capacity. The system is direct fixed to the fascia, eliminating the need for support brackets. The Dales overstrap joint system results in no visible fixings on the seen faces.
Features and benefits:
- Polyester powder coated to BS 12206-1:2004.
- Available in gloss, matt and satin (subject to availability).
- Also available anodized.
- A wide range of standard components are available.
- Purpose-made components can be manufactured to suit individual projects.
General information
Color | Beige Black Blue Bronze Brown Manufacturer guidanceRefer to manufacturer's website for available colour choices. |
Finish | Powder-coated Guidance for specification option: PPC - Matt. PPC - Satin. PPC - Gloss. Also available in special effect: PPC - Timber grain. PPC - Corten. PPC - Simulated anodized. Metallic Guidance for specification option: PPC - Metallic. Anodized |
Material | Aluminium |
Shape | Rectangle Square |
Length | 3000 mm |
Width | 150 mm |
Height | 100 mm |
Warranty description | 25 year Guidance for specification option: Contact manufacturer for further details. |
Uniclass | |
CAWS | R10/11 Aluminium gutters R10/311 Aluminium gutters |
Product range |
Specification data - Aluminium eaves gutters
Form | Pressed to BS 9101:2017. |
Profile | Angled front. |
Size (nominal width) | 150 mm. |
Thickness or gauge | 2 mm. |
Finish | Anodized. |
Colour | ANOLOK BRONZE 541.ANOLOK BRONZE 543.ANOLOK BRONZE 545.ANOLOK BRONZE 547.ANOLOK BRONZE 549.ANOLOK BRONZE 54B.ANOLOK II BLUE-GREY B711.ANOLOK II BLUE-GREY B713.ANOLOK II BLUE-GREY B715.ANOLOK II BLUE-GREY B717.ANOLOK II STONE GREY.UA 100-0.Guidance for specification option: Lime green. UA 100-1.Guidance for specification option: Yellow. UA 100-2.Guidance for specification option: Dark grey / black. UA 100-A.Guidance for specification option: White / beige. UA 120-0.Guidance for specification option: Yellow / brown. UA 120-1.Guidance for specification option: Light brown. UA 120-2.Guidance for specification option: Brown. UA 130-0.Guidance for specification option: Light red. UA 130-1.Guidance for specification option: Red. UA 130-2.Guidance for specification option: Red /brown. UA 140-0.Guidance for specification option: Dark red. UA 140-1.Guidance for specification option: Pink. UA 150-0.Guidance for specification option: Light blue. UA 150-1.Guidance for specification option: Dark blue. UA 150-2.Guidance for specification option: Metallic. UA 160-1.Guidance for specification option: Dark blue. UA REGENCY GOLD 1.UA REGENCY GOLD 2.UA REGENCY GOLD 3. |
Film thickness (minimum) | 60 microns. |
Texture | Gloss. Guidance for specification option: Subject to availability: www.dales-eaves.co.uk/finishes/ Matt. Guidance for specification option: Subject to availability: www.dales-eaves.co.uk/finishes/ Satin. Guidance for specification option: Subject to availability: www.dales-eaves.co.uk/finishes/ |
Corners | Not required. N1-05-090-E 90° external corner. N1-05-090-I 90° internal corner. N1-05-135-E 135° external corner. N1-05-135-I 135° internal corner. Manufacturer guidanceFittings. |
Outlets | N1-04-076-D 76.2 mm round outlet. N1-04-076-S 76.2 mm square outlet. ___ mm round outlet. ___ mm square outlet. As drawing ___. Manufacturer guidanceFittings. |
Stop end | N1-03-000-L left hand stop end. N1-03-000-R right hand stop end. As drawing ___. Contractor's choice. Manufacturer guidanceFittings. |
Joint strap | N1-02-000-X. Manufacturer guidanceFittings. |
Length | 3 m. Manufacturer guidanceGutter length. |
Size | 150 x 100 mm. Manufacturer guidanceProfile size. |
Capacity | 3.29 L/s. Guidance for specification option: Gutter. 2.46 L/s. Guidance for specification option: 76.2 mm round outlet. 3.06 L/s. Guidance for specification option: 76.2 mm square outlet. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 2 |
Third party certifications
ISO 9001 Quality Management
ISO 9001:2015 Quality Assurance
Independent sustainability assessment
CLOSED LOOP RECYCLING SCHEME (CAB)
EN 13501-1 (Efectis)
INTERPON-D PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
SYNTHA PULVIN PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION
