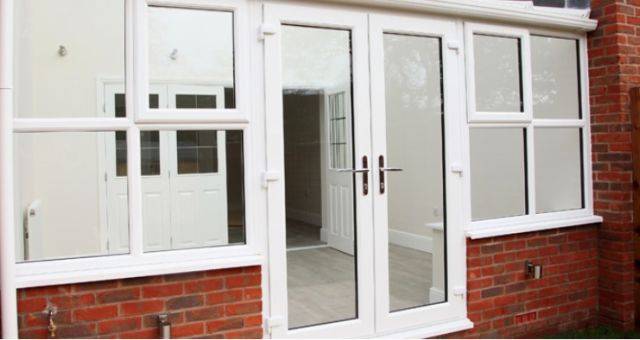

Aluminium flush French door.
Aluminium flush, French door, available outward or inward opening, internally beaded, and in a range of colours.
Features and benefits:
Accreditations:
Uniclass 2015 | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Product Reference | Aluminium Flush French Door |
Opening | InwardOutwardStandard. |
Size | - |
Height | Up to 2500 mm. Consult manufacturer and insert requirements. |
Opening width | 1200–2400 mm. Consult manufacturer and insert requirements. |
Sills | 85 mm, LSL085150 mm, ASL150165 mm, LCL165180 mm, LSL180 |
Threshold | 23.5, aluminiumLow threshold. 23.5 mm, Part M aluminiumLow threshold and half tray. 26.5 mm, Part M aluminiumLow threshold and full tray. 62 mm, aluminiumFrame only. 92 mm, aluminiumFrame and sill. |
Glazing | 28 mm double glazingThermal transmittance (U-value): 1.5 W/m²k. 36 mm triple glazingThermal transmittance (U-value): 1.2 W/m²k. 40 mm triple glazingThermal transmittance (U-value): 1.2 W/m²k. |
Colour/ Finish | 7016 greyRAL powder-coated. 7016 grey foilBlackRAL powder-coated. Black foilChartwell green foilCream foilGolden oak foilIrish oak foilRosewood foilWhiteRAL powder-coated. White foil |
Beading | AGB001Square bead. AGB002Sculptured bead. LCW041Chamfered bead. LPD08340 mm sculptured bead. LSW041Sculptured bead. LSW04236 mm bead. |
Gaskets | ABF194Sash-to-sash gasket. ABF196Threshold gasket. AGA001Glazing gasket. AGA002Wedge gasket. AGA192No. 1, corner gasket. AGA292No. 2, corner gasket. AGA392No. 3, corner gasket. AGA492No. 4, corner gasket. AGA592No. 5, corner gasket. AGA692No. 6, corner gasket. AGA792No. 7, corner gasket. LBF197Q-Lon. LGA412Button strip. LPD483Meeting style brush plate. MBF194Closing jamb seal. |
Cylinders | MBF034N45/ 45 Anti-bump nickel, including three folding keys. MBF034N3S45/ 45 Anti-bump nickel (three-star cylinder). MBF035N2 x Key alike, 45/ 45 anti-bump nickel, including three folding keys. MBF035N3S2 x Key alike, 45/ 45 anti-bump nickel (three-star cylinder). |
Locks | ABF045LLarge non-locking espagnolette. ABF045SSmall non-locking espagnolette. ABF045LLLarge non-locking espagnolette. ABF045LSSmall non-locking espagnolette. ABF047LLarge main door lock. ABF047SSmall main door lock. |
Ironmongery/ Hardware | ABF050Double roller. ABF072'C' handle. LBF041Door magnets. LBF081Slim door handle. LBF082Extra-slim door handle. MBF042Escutcheon/ lock plate. MBF060Single roller. MBF080Door handle. |
Accessories | A range of accessories is available; see 'Options' below and insert requirements. |
Standard product features | Transom: 87 mm, LSW026. Midrail: 117 mm, LSW029. Frame profile: Sculptured. Bead: Internal. |
Product Options | Colour/ Finish: Other colours are available as a special order; consult manufacturer for information. Accessories:
|
