Aluminium Entrance Door Standard

Aluminium Entrance Door Standard

SOMMER DOCO Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Aluminium residential doorset.

Jump to:
+44(0)1904 608787 www.sommer.eu

Application

Residential front door.

Description

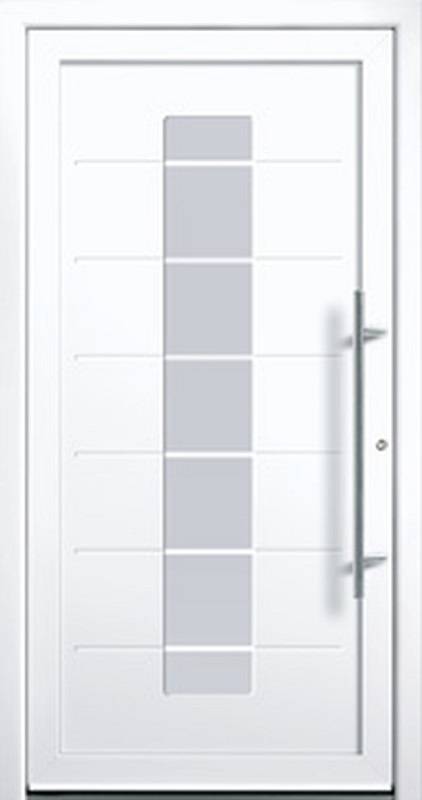

Aluminium doorset with 42 mm thick leaf and flush door frame. The filling of the door leaf is offset, creating a traditional door design.

As a standard feature, three sealing layers along the entire edge of the door provide a highlevel of wind and weather proofing.


Features and benefits:

  • Various model designs are available.
  • Stable corner joints: Mitred profiles are screwed, glued and bolted together.
  • Security pins: Two pin retainers in the upper and lower part of the hinge side prevent the door from being levered out of the frame in the event of attempted burglary.
  • Many RAL colours are available, with seven standard colours.
  • 16 types of highly realistic powder coated wood-grain finishes.
  • Six types of glazing and a variety of glazing designs are available.
  • Compliant with BS EN 14351-1.

General information

Color

Custom Colour Options: Any choice of RAL / BS numbers.

Grey

Goosewing Grey BS10A05, Merlin Grey BS18B25 or Anthracite - RAL7016.

Blue

Sapphire Blue RAL5003, Gentian Blue - RAL5010 or Cornflower Blue BS18E53.

Green

Olive Green BS12B27.

Red

Flame Red BS04E54.

Yellow

Show more

Finish

Polyester powder-coated

Wood effect

Material

Aluminium

Shape

Rectangular

Size

Made to measure.

-

Uniclass 2015

Pr_30_59_24_52 Metal doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Product range

Doorsets

Specification data - Metal doorsets Enhanced data

Standard

To BS EN 14351-1.

Configuration

Single leaf.

Double leaf.

Doorset size

As drawing.

Insert reference.

As schedule.

Insert reference.

Performance

-

Thermal

1.15 W/m²K.

Dependent on chosen design. Consult manufacturer for details.

Intruder resistance

-

Minimum requirement

To DIN EN 1627, RC2.

Frame

-

Material

Aluminium.

Finish

-

Coating

Polyester powder-coated.

Wood effect.

Colour

Anthracite grey.

Standard colours - Similar to RAL 7016.

Brown.

Standard colours - Similar to RAL 8077.

Grey aluminium.

Standard colours - Similar to RAL 9007.

Spec-effect varnish.

Standard colours - DB 703.

White aluminium.

Standard colours - Similar to RAL 9006.

Wine red.

Standard colours - Similar to RAL 3005.

Ash.

Wood effect - FD008.

Cherry.

Wood effect - FD005.

Cherry rustic.

Wood effect - FD009.

Douglas Fir.

Wood effect - FD003.

Golden Oak.

Wood effect - FD017.

Golden oak dark.

Wood effect - FD011.

Mahogany.

Wood effect - FD016.

Mature timber.

Wood effect - FD024.

Oak board.

Wood effect - FD023.

Oak dark.

Wood effect - FD013.

Oak gold.

Wood effect - FD006.

Oak light.

Wood effect - FD019.

Oak rustic dark.

Wood effect - FD018.

Rusted.

Wood effect - FD021.

Sapeli.

Wood effect - FD020.

Wenge.

Wood effect - FD012.

Custom RAL.

Custom RAL colours: Available in fine texture, glossy or matt finishes on both sides of door and panel (exterior and interior), or custom RAL on door and panel exterior with interior in Traffic white, similar to RAL 9016.

Door leaf

-

Thickness

42 mm.

Core

Manufacturer's standard.

Material

Aluminium.

Perimeter seals

Three-sided exterior seal along edge.

Four-sided continuous centre bar and interior seals along entire edge.

Glazing

-

Type

Triple thermal insulation glazing.

P4A / WSG 9.5 mm thick on exterior, decorative pane in middle and float on interior.

Finish

-

Coating

Polyester powder-coated.

Wood effect.

External colour

Anthracite grey.

Standard colours - Similar to RAL 7016.

Brown.

Standard colours - Similar to RAL 8077.

Grey aluminium.

Standard colours - Similar to RAL 9007.

Spec-effect varnish.

Standard colours - DB 703.

White aluminium.

Standard colours - Similar to RAL 9006.

Wine red.

Standard colours - Similar to RAL 3005.

Ash.

Wood effect - FD008.

Cherry.

Wood effect - FD005.

Cherry rustic.

Wood effect - FD009.

Douglas Fir.

Wood effect - FD003.

Golden Oak.

Wood effect - FD017.

Golden oak dark.

Wood effect - FD011.

Mahogany.

Wood effect - FD016.

Mature timber.

Wood effect - FD024.

Oak board.

Wood effect - FD023.

Oak dark.

Wood effect - FD013.

Oak gold.

Wood effect - FD006.

Oak light.

Wood effect - FD019.

Oak rustic dark.

Wood effect - FD018.

Rusted.

Wood effect - FD021.

Sapeli.

Wood effect - FD020.

Wenge.

Wood effect - FD012.

Custom RAL.

Custom RAL colours: Available in fine texture, glossy or matt finishes on both sides of door and panel (exterior and interior), or custom RAL on door and panel exterior with interior in Traffic white, similar to RAL 9016.

Internal colour

As External.

Accessories

Not required.

18903.

Security door fitting

22055.

ENTRAsys finger scanner.

26020.

Security identify card.

699523.

Classic handheld transmitter.

699626.

Slider handheld Transmitter.

900088/89.

Scratch guard for profile cylinder face.

Base trim.

Insert requirement.

Special order.

Insert requirements.

Execution

Installing hardware.

Product Reference

Aluminium Entrance Door Standard

Design

Insert requirement from manufacturer's literature.

Glazing

Chinchilla white.

Float sandblasted.

Mastercarré white.

Masterpoint white.

Mastershine white.

Show more

Over/ side panels

Insert requirements.

Interior handle

18600.

Standard, RAL 9016, EV1, C34.

18600/0053.

Stainless steel.

18900.

DALLAS, stainless steel.

18120/9016.

With long plate.

18120/0053.

With long stainless steel plate.

Show more

Locking

20027.

GU Security automatic lock with three-point deadlocked latchbolt.

20028.

GU Security automatic lock with three-point deadlocked latchbolt and A-opener function.

20066.

Standard, three-point hook bolt lock.

20070.

Five-point hook bolt lock, includes solid bolt.

Hinges

23040.

Standard, RAL 9016, EV1, C34.

23061.

Concealed hinge.

23091.

Roller hinge, RAL 9016, EV1, C34.

Door sill

Thermally insulated aluminium door sill.

Standard, for older buildings.

Polyvinyl chloride (PVC) floor recess profile, 25 mm.

For new builds.

Polyvinyl chloride (PVC) floor recess profile, 50 mm.

For new builds.

Polyvinyl chloride (PVC) floor recess profile, 100 mm.

For new builds.

Type

26105.

As standard.

26050.

Knob cylinder.

Knob

Not required.

For standard cylinder.

27701, RAL 9016.

EV1, C34.

27701, stainless steel.

27900.

DALLAS, stainless steel.

27901.

STOCKHOLM, stainless steel.

Rosette

19023.

Standard.

190XX.

Armoured rosette, cylinder overlay.

Third party certifications

  • Security tested to RC2 standard: DIN EN1627
