Aluminium CW 86 Unitised Curtain Wall System
Verified by manufacturer 12 days ago
ISO 9001 Quality Management
Certificate type
Unitized curtain wall facade system.
Application
Unitized curtain wall system that complies with all requirements for large building projects.
Can be constructed in two different ways: As mullion-transoms or as completely finished unitized systems
Description

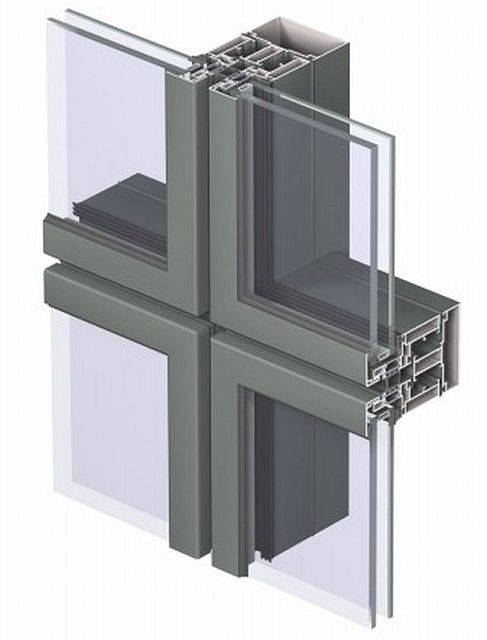

Curtain Wall 86 is a unitized curtain wall system that complies with all requirements for large building projects. CW 86 offers a special solution, where cassettes or elements can be pre-assembled in the workshop. On the building site, the cassettes can either be hooked on to a traditional stick structure (CW 86) or the facade can be built up element by element according to the modular curtain wall principle (CW 86-EF).
Features and benefits:
- Pressure equalized and drained unitized curtain wall.
- Available in beaded or silicone glazed options.
- Internal and external visible width of 86 mm.
- Infills include vision and spandrel panels, and outward opening windows and doors.
- Concealed casement options for open out configurations.
- Drained and ventilated glazing with EPDM synthetic rubber gaskets.
- Choose from a full range of polyester powder coat colours and anodized finishes.
- Dual colour available offering a different colour inside and out.
- Ten-year systems guarantee provided as standard.
- Corresponds to the BRE Global Green Guide online generic specification for curtain wall and achieves a summary rating of B or C.
- CAD and BIM details available on request.
Can be constructed in two different ways:
- As mullion-transoms: Assembly on the building site of suspension profiles and transoms by means of T-brackets. Transoms are assembled in the same level as the vertical suspension profiles by means of T- or L-shaped connection pieces. Sealing of mullion-transom connections is done with elastic silicones. Filling elements are assembled on the building site.
- As completely finished unitized systems: The assembly of suspension profiles and transoms into a frame is done in the workshop. This frame is called 'main frame'. On this main frame are fixed filling elements. This frame is called 'glass frame'. The assembly of glass frames on the main frame can be done in the workshop or on the building site. As a special application, it is also possible to assemble fixed filling elements directly in the main frame. The inner and outer aspect of this adjusted main frame is identical, except for the seal gasket of the glass frames. Finally the different main frames are connected by means of three wind- and water-tight gaskets continuing in the corners.
General information
Color | Manufacturer guidanceReynaers offers more than 450 colour AAMA finishes for their frames, including natural, champagne, bronze, and black 12. The AAMA classifications refer to durability and humidity exposure resistance, with higher numbers indicating longer-lasting finishes 2. Please contact us direct for further information. |
Finish | Anodized Powder-coated |
Material | Aluminium Glass |
Shape | Square Other |
Length | Bespoke |
Width | Bespoke Guidance for specification option: Frame width 86 mm. |
Height | Bespoke Guidance for specification option: Frame. |
Warranty description | Ten year Guidance for specification option: Standard system guarantee (five-year guarantee for wearing parts). Manufacturer guidanceReynaers guarantees that its systems meet the highest technical specifications and standards. We therefore issue a 10-year system guarantee. This is an insurance on the aluminium profiles, lacquer or anodisation layer, as well as on the insulation. On the accessories, we grant a 5-year system guarantee. |
Uniclass | |
CAWS | H11/110 Curtain walling |
Specification data - Unitized curtain walling systems
Framing | |
Framing members | Aluminium curtain wall frame sections, colour/ finish.Guidance for specification option: Colour/ finish:
Consult manufacturer and insert requirements. |
Fasteners | Manufacturer's standard. |
Cladding units | |
Glass units | Double glazed.Guidance for specification option: Insert requirements; 4–50 mm. Include details of spandrel and/ or vision panels as required. Triple glazed.Guidance for specification option: Insert requirements; 4–50 mm. Include details of spandrel and/ or vision panels as required. Single glazed.Guidance for specification option: Insert requirements; 4–50 mm. Include details of spandrel and/ or vision panels as required. Manufacturer guidanceContact the glass supplier for details of the glazing unit including, spacer type and dimension, glass type (emissivity, safety, solar, G-value and energy factors), thickness and weight. Glass to be set against extruded EPDM rubber gaskets retained in undercut grooves within the aluminium profile. |
Panels and facings | |
Material | Manufacturer guidanceInsert requirements, including: Panel type, external material/ finish/ colour and core insulation. Finish/ colour:
|
Thermal insulation | Manufacturer guidanceInsert requirements. |
Internal linings | Manufacturer guidanceInsert requirements (internal material/ finish/ colour). Can be powder coated in a range of RAL or ‘Coatex’ colours to APA Qualicoat standard or BS EN 12206-1:2004, or anodized in satin or bronze colours to EWAA/ EURAS-Qualanod standard or BS 3987:1991. |
Fasteners | Manufacturer guidanceInsert requirements. |
Perimeter seals | Not required.Perimeter flashings. |
Curtain Wall | CW 86 Standard. Guidance for specification option: 86 mm solution. CW 86-EF. Guidance for specification option: Unitized modular cassette. CW 86-EF/HI. Guidance for specification option: High insulation unitized modular cassette. CW 86-EF/SG. Guidance for specification option: Silicone bonded unitized modular cassette. Manufacturer guidanceUnitized system, drained and ventilated. |
External cover cap | Aluminium, colour/ finish. Guidance for specification option: Colour/ finish:
Insert 'As Framing members.' or consult manufacturer and insert requirements. |
Assembly type | Mullion-transoms. Guidance for specification option:
Completely finished unitized system. Guidance for specification option: The assembly of suspension profiles and transoms into a frame is done in the workshop. This frame is called 'main frame'. On this main frame is fixed filling elements. This frame is called 'glass frame'. The assembly of glass frames on the main frame can be done in the workshop or on the building site. As a special application, it is also possible to assemble fixed filling elements directly in the main frame. The inner and outer aspect of this adjusted main frame is identical, except for the seal gasket of the glass frames. Finally the different main frames are connected by means of three wind- and water-tight gaskets continuing in the corners. |
Incorporated components | None. Doors. Opening lights. Sun screens. Guidance for specification option: Sun screen systems from a range of Brise Soleil components; consult the manufacturer and insert requirements. Manufacturer guidanceIncludes CW 86 concealed inserts, top hung, parallel opening options. Consult the manufacturer for details and insert requirements. |
Air permeability | Up to 900 Pa (class AE900). Guidance for specification option: Refer to manufacturer's product CE Passport certificates for clarification. |
Watertightness | Up to 1200 Pa (class RE1200). Guidance for specification option: Refer to manufacturer's product CE Passport certificates for clarification. |
Resistance to wind load | Up to 2000 Pa (class C5). Guidance for specification option: Refer to manufacturer's product CE Passport certificates for clarification. |
Acoustic performance | Rw (C;Ctr) = 41 (-2;-5) dB. Guidance for specification option: Consult manufacturer for details. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Aluminium Glass |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceOn a project specific basis Reynaers can offer 75% + post-consumer scrap. Please contact Reynaers direct for further information. |
Recyclability | 100% Manufacturer guidanceAluminium is one of the most recycled materials on Earth and can be recycled endlessly into itself. It is 100% recyclable and retains its properties indefinitely. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceOn a project specific basis Reynaers can offer 75% + post-consumer scrap. Please contact Reynaers direct for further information. Aluminium is one of the most recycled materials on Earth and can be recycled endlessly into itself. It is 100% recyclable and retains its properties indefinitely. Reynaers guarantees that its systems meet the highest technical specifications and standards. We therefore issue a 10-year system guarantee. This is an insurance on the aluminium profiles, lacquer or anodisation layer, as well as on the insulation. On the accessories, we grant a 5-year system guarantee. Due to the global limited availability of recycled aluminium, the objective to increase recycled content to 75% doesn't have any environmental benefit. Increasing recycled content for 1 project or product only means other projects/products contain less. However, Reynaers Aluminium works closely together with its suppliers to ensure a correct % of recycled content. As there is a variation between the recycled content provided by these suppliers, we communicate the annual averages. For specific projects, Reynaers Aluminium can select a supplier with high recycled content, possibly with price impact and extended delivery times. To improve the environmental impact of aluminium, Reynaers Aluminium focusses on following important aspects: • Use recycled content: work together with suppliers to ensure the use of recycled content. • Purchase low carbon primary aluminium: decrease the CO2 impact of the primary aluminium, which is necessary to produce extrusion billets, by using low carbon primary aluminium, produced by green electricity (primarily hydro power). • Work closely together with European Aluminium to improve the global impact of aluminium production and improve sorting and recycling. This approach has the most impact as it combines short term with long term improvements of the aluminium industry, to make a clear environmental shift. |
Third party certifications
ISO 9001 Quality Management
QMS ISO 9001
Literature

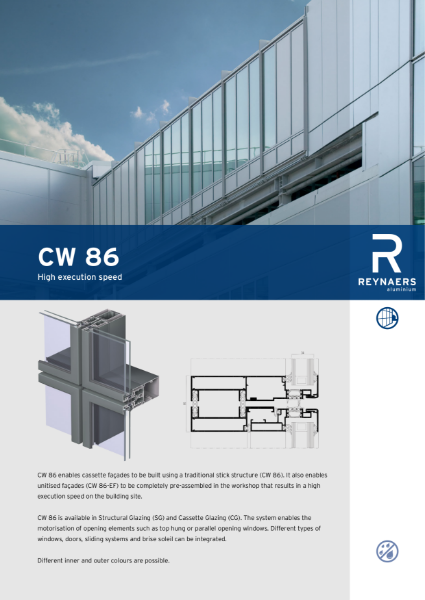

Aluminium Unitised Curtain Wall - CW 86

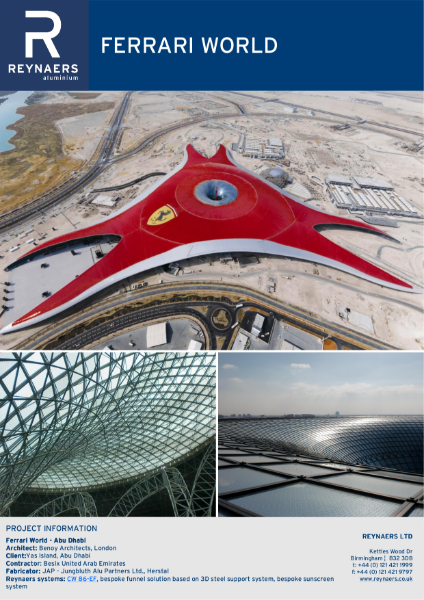

Case Study: Ferrari World, featuring CW 86 unitised curtain wall

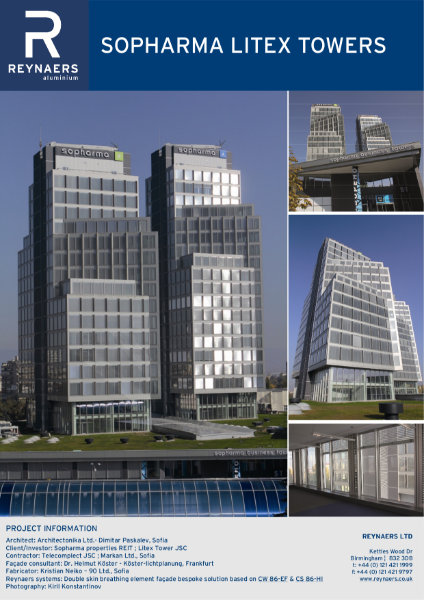

Case Study: Sopharma Litex Towers, featuring CW 86 unitised curtain wall
