Verified by manufacturer 2 months ago
Single Leaf: Anodized.
Secured By Design
Certificate type
QA Certificate
Certificate type

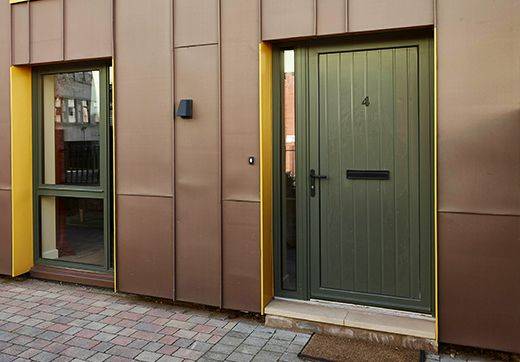

Aluminium residential hinged flush door system.
Suitable for use with residential new build and refurbishment projects, ideal for light and medium traffic environments.
Aluminium residential hinged flush door system.
Features and benefits:
Color | Other Insert RAL colour requirement or type 'Not applicable' for anodized. |
Finish | Anodized To a minimum 15 micrometres thickness. Powder-coated Polyester powder coated to a minimum 60 micrometres thickness (with marine environment guarantee where applicable). |
Material | Aluminium Glass |
Shape | Rectangle |
WidthRecommended size limits (maximum). | 1000 mm Single leaf: Hardware limits. 1200 mm Single leaf: Hardware limits. 2000 mm Double leaf: Tested limits. 2400 mm Double leaf: Hardware limits. |
HeightRecommended size limits (maximum). | 2200 mm Single leaf: Hardware limits. Double leaf: Tested limits. 2400 mm Single leaf: Hardware limits. Double leaf: Hardware limits. |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Product range |
Configuration | Single, open in.Fully rebated. Single, open out.Fully rebated. |
Doorset size | 1200 x 2400 mm.Maximum size: Hardware limits. 1000 x 2200 mm.Maximum size: Hardware limits. As drawing.Insert reference. As schedule.Insert reference. |
Performance | - |
Thermal | 1.4 W/m²K. |
Intruder resistance | - |
Minimum requirement | Secured by Design certification and PAS 24. |
Frame | - |
Material | Aluminium. |
Finish | - |
Coating | Anodized.To a minimum 15 micrometres thickness. |
Texture | Not applicable.For anodized. |
Colour | Anodized. |
Door leaf | - |
Material | Aluminium. |
Glazing | - |
Type | Glass panels.24–40 mm glass look-a-like panels, insert requirements. Glass look-a-like panels incorporating two panes of minimum 6 mm-thick glass, with a 16 mm argon gas filled cavity and ceramic painted internal face with foil backed insulation to achieve a maximum 0.35 W/m²K centre pane. Exposed internal faces of insulation incorporate an internal polyester powder coated aluminium tray backing. Glazing.24–40 mm insulating glass units, insert requirements. Insulating glass units incorporating a clear low emissivity inner pane and a clear outer pane with an argon gas filled cavity and 'warm edge' spacer bar to achieve a maximum centre pane U-value of 1.0 W/m²K. All glass within 800 mm from FFL should be toughened or laminated (within 1500 mm from FFL if within 300 mm of a door). Infill panels.24–40 mm insulating glass units, insert requirements. Insulated sandwich panels incorporating two sheets of a minimum 2 mm-thick polyester powder coated aluminium sheet to match framing and minimum 24 mm non-combustible foam insulation core. |
Beading | - |
Type | Chamfered.Square. |
Material | Aluminium. |
Finish | - |
Coating | Anodized.To a minimum 15 micrometres thickness. |
Texture | Not applicable. |
External colour | Anodized. |
Internal colour | Anodized. |
Film thickness (minimum) | 15 micrometres. |
Accessories | Not required.AW712.Bay pole, for 58 mm frame. AW715.100–120° bay pole, for 70 mm frame. AW716.120–140° bay pole, for 70 mm frame. AW717.140–160° bay pole, for 70 mm frame. AW718.160–180° bay pole, for 70 mm frame. AW720.Integral corner post, for 70 mm frame. AW721.Integral corner post, for 58 mm frame. AW722.Bay pole, for 70 mm frame. AW724.20 mm frame extender, for 70 mm frame. AW725.20 mm frame extender, for 58 mm frame. AW728.40 mm frame extender, for 70 mm frame. Fanlight.Insert requirements. Laybar.Insert requirements. Letterplate.Insert requirements. Midrail.Insert requirements. Sidelight.Insert requirements. |
Execution | Installing hardware. |
Outer frame | AW600. 70 mm slim chamfered frame. AW601. 70 mm standard chamfered frame. AW602. 70 mm standard ovolo frame. AW603. 58 mm odd leg frame. AW604. 58 mm standard frame. |
Vent | AD400. Open in. AD401. Open out. |
Coupler | Not required. AW702. 15 mm coupler, for 70 mm frame. AW703. 15 mm coupler, for 58 mm frame. AW705. 26 mm coupler, for 70 mm frame. AW706. 26 mm coupler, for 58 mm frame. |
Sub sill | Not required. AW542. 150 mm sill AW543. 177 mm sill. AW544. 190 mm sill. AW570. 96 mm stub sill. |
Ironmongery | Insert requirements. |
Panel weightRecommended weight limits (maximum). | 100 kg. Two hinges per door. 125 kg. Three hinges per door. 150 kg. Four hinges per door. |
Air permeability | Class 2 (300 Pa). |
Watertightness | Class 9A (600 Pa). |
Wind resistance | A3 (1200 Pa). |
