AluExcel Aluminium Edge Restraint

Description

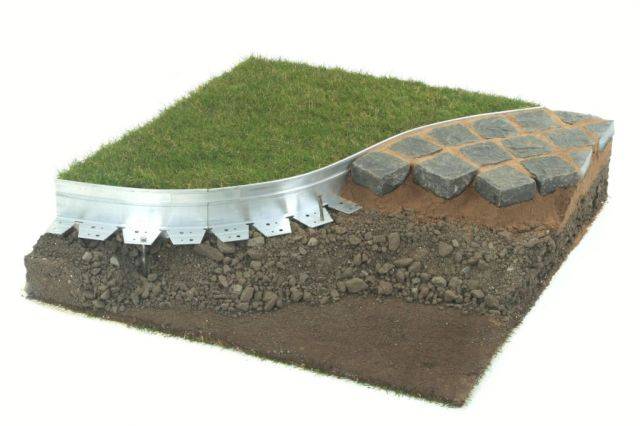

Aluminium angle edge restraint for hard landscape surfaces, available in flexible or rigid lengths of various heights and thicknesses.

General information

Finish

Mill finish (silver)

Standard.

Anodized

Optional.

Powder coated, RAL

Optional. Insert colour requirements (any RAL colour).

Features

Manufactured from part-recycled/ 100% recyclable aluminium in 6005A T6 alloy

Nine different wall height dimensions, providing a strong, flexible or rigid edge for all hard landscape surfaces, including asphalt, resin-bonded or loose gravel, blocks, bricks or paving slabs

Overlaying of a worn surface with new asphalt can be neatly carried out by fastening 25 mm AluExcel to the old surface and resurfacing with a new wearing course

18 mm edge for resin-bound gravel applications

Uniclass 2015

Pr_35_90_22_52 Metal edgingsPrimary

CAWS

Q10/200 Special

Product range

Aluminium Edging

Specification data - Metal edgings

Product Reference

AluExcel Aluminium Edge Restraint

Type

101032

15 mm-high flexible edging.

101033

15 mm-high rigid edging.

101010

18 mm-high flexible edging.

101011

18 mm-high rigid edging.

101012

25 mm-high flexible edging.

101013

25 mm-high rigid edging.

101014

40 mm-high flexible edging.

101015

40 mm-high rigid edging.

101016

50 mm-high flexible edging.

101017

50 mm-high rigid edging.

101018

65 mm-high flexible edging.

101019

65 mm-high rigid edging.

101020

75 mm-high flexible edging.

101021

75 mm-high rigid edging.

101023

100 mm-high rigid edging.

101024

120 mm-high flexible edging.

101026

120 mm-high rigid edging.

101028

150 mm-high flexible edging.

101030

150 mm-high rigid edging.

101029

150 mm-high flexible reversed edging.

101031

150 mm-high rigid reversed edging.

Finish

Mill finish (silver)

Standard.

Anodized

Optional.

Powder coated, RAL

Optional. Insert colour requirements (any RAL colour).

Fixings

Concrete nails

Screws

Spiral landscape spikes

Standard fixing

Accessories

None

90° welded corners

Small connector strip

Large connector strip

Standard product features

Features:

  • Manufactured from part-recycled/ 100% recyclable aluminium in 6005A T6 alloy.
  • Nine different wall height dimensions, providing a strong, flexible or rigid edge for all hard landscape surfaces, including asphalt, resin-bonded or loose gravel, blocks, bricks or paving slabs.
  • Overlaying of a worn surface with new asphalt can be neatly carried out by fastening 25 mm AluExcel to the old surface and resurfacing with a new wearing course.
  • 18 mm edge for resin-bound gravel applications.

Design:

  • Aluminium angle section with horizontal base section, incorporating holes for fixing to the substrate and punched 'keyhole' slots for flexing where required.
  • A joining piece is supplied and fits into a slot along the length of the edging, keeping one section aligned with the next.
  • All sizes now available as optional rigid format for true straight lines where required.

Length:

2500 mm.

Installation:

  • Substrate to be levelled and AluExcel laid on MOT Type 1 roadstone or similarly approved material.
  • Levels can be adjusted using lean mix (dry) concrete/ sharp sand and cement if required.
  • Bedding on a lean mix (dry) sharp sand and cement ensures that edging is fully supported along its length. This is essential to avoid 'bridging' between the edging and the sub-base.
  • It is recommended to set out corners first and work way from them.
  • Sliding joint connectors are slid into channels provided, and an approximate gap of 10 mm should be left for thermal expansion.
  • A small concrete haunch may be used if additional support is required, but is not essential.
  • Maximum asphalt temperature recommended is 180°C.
  • Where AluExcel is being installed in conjunction with hot lay tarmacadam, there must be a minimum expansion joint of 3 mm between each 2.5 m length.
  • It is recommended that rigid format profiles are used for straight lines and flexible profiles for radiuses.

Product Options

Type:

- Size (h x l x w):

  • 101032: 15 x 30 mm. 5 mm top edge; Length: 2.4 m; Flexible.
  • 101033: 15 x 30 mm. 5 mm top edge; Length: 2.4 m; Rigid.
  • 101010: 18 x 30 mm. 5 mm top edge. 2.4m length.
  • 101011: 18 x 30 mm. 5 mm top edge; Length: 2.4 m; Rigid.
  • 101012: 25 x 32 mm. 5 mm top edge; Length: 2.4 m; Flexible.
  • 101013: 25 x 32 mm. 5 mm top edge; Length: 2.4 m; Rigid.
  • 101014: 40 x 45 mm. 6 mm top edge; Length: 2.4 m; Flexible.
  • 101015: 40 x 45 mm. 6 mm top edge; Length: 2.4 m; Rigid.
  • 101016: 50 x 45 mm. 6 mm top edge; Length: 2.4 m; Flexible.
  • 101017: 50 x 45 mm. 6 mm top edge; Length: 2.4 m; Rigid.
  • 101018: 65 x 45 mm. 6 mm top edge; Length: 2.4 m; Flexible.
  • 101019: 65 x 45 mm. 6 mm top edge; Length: 2.4 m; Rigid.
  • 101020: 75 x 70 mm. 6.5 mm top edge; Length: 2.4 m; Flexible.
  • 101021: 75 x 70 mm. 6.5 mm top edge; Length: 2.4 m; Rigid.
  • 101022: 100 x 70 mm. 6.5 mm top edge; Length: 2.4 m; Flexible.
  • 101023: 100 x 70 mm. 6.5 mm top edge; Length: 2.4 m; Rigid.
  • 101024: 120 x 70 mm. 7 mm top edge; Length: 2.4 m; Flexible.
  • 101026: 120 x 70 mm. 7 mm top edge; Length: 2.4 m; Rigid.
  • 101028: 150 x 70 mm. 8 mm top edge; Length: 2.4 m; Flexible.
  • 101030: 150 x 70 mm. 8 mm top edge; Length: 2.4 m; Rigid.
  • 101029: 150 x 70 mm. 8 mm top edge; Length: 2.4 m; Flexible reversed.
  • 101031: 150 x 70 mm. 8 mm top edge; Length: 2.4 m; Rigid reversed.

Fixing:

  • Spiral landscape spikes, nails or screws, depending on the substrate.
  • When fixing into concrete, an automatic nail firing gun with 35–40 mm concrete nails can be used.

Corners:

  • 90° welded corners are available.
  • Corners are available as internal or external versions.
  • Other fabrications are available on request.

Circles:

Prefabricated circles can be made to required dimension.
