Alu-Clad Pivot Windows - Aluminum Clad Casement Window
Verified by manufacturer 29 days ago
Double glazed
Double glazed
Aluminium clad timber horizontal pivot windows.
Application
Suitable applications include:
- Office buildings.
- Public sector buildings such as healthcare and education.
- Multiple-occupancy buildings such as apartments and hotels.
Description
Horizontal-pivot windows have a central horizontal rotation axis. They are easy to operate, save space in the interior and have outstanding ventilation properties. The UNITAS hardware series by Gretsch-Unitas can be used for both rectangular and round horizontal-pivot windows with sash weights up to 300 kg. The adjustable turn-brake in the pivot holds the sash securely in any position, while still allowing the window to rotate 180°. Barrier-free solutions, whereby sashes can be moved without using any force, can be implemented, for example, by combining horizontal-pivot hardware with the ELTRAL K35 concealed motor-driven chain drive.
Features and benefits:
- Allow natural light and air to flood in.
- External colour options.
- Clean styling.
- Easy to operate.
- 180° rotation.
- Sash weights up to 300 kg.
- Adjustable turn-brake in the pivot holds the sash securely in any position.
- The UNITAS hardware series by Gretsch-Unitas can be used for both rectangular and round horizontal-pivot windows.
General information
Color | Clear Beige Black Blue Brown |
Material | Timber |
Shape | Square Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | L1/304 Wood windows L10/33 Proprietary windows L10/400 Composite windows |
Specification data - Composite window units
Classification data | |
Third-party certification | FSC certified. |
Dimensions and configurations | Manufacturer guidanceSize limits.
|
Product performance | |
Thermal | |
Whole window U-value | 1.2 W/m²K. |
Frame | |
Wood species | Engineered redwood. Guidance for specification option: Standard. Engineered hardwood. Guidance for specification option: Optional. European oak. Guidance for specification option: Optional. |
Chain of custody | FSC. |
Wood finishes | Stained. Painted. Manufacturer guidanceThree coat spray applied factory finish using water based micro-porous paint/ stain from TRC stain range. |
Metal finishes | |
Coating | Polyester powder coating. |
Colour | White, RAL 9016. Guidance for specification option: Standard. RAL, classic range. Guidance for specification option: Optional. Insert requirements. |
Ventilator | Through sash head trickle ventilator. Guidance for specification option: EA 1700, 4400, 5000 mm². |
Glazing or infill | |
Requirements | 28 mm Double glazed. Guidance for specification option: 4/20/4 Low-E - as standard for double glazed Pivot window. |
Hardware | UNITAS hardware series (Gretsch-Unitas). Guidance for specification option: Can be used for both rectangular and round horizontal-pivot windows with sash weights up to 300 kg. |
Operation | |
Type | Manual. ELTRAL K35 concealed motor-driven chain drive. |
Maximum weight | 300 kg. |
Sill projection | 110 mm. 150 mm. 180 mm. 210 mm. |
MoistureContent | 12–19%. Manufacturer guidanceWood moisture content. |
Glazing beads | Internally beaded. |
Perimeter spacer bar | White. Guidance for specification option: White warm edge perimeter spacer with white warm edge integral spacers as standard. Silver. Guidance for specification option: Optional. Black. Guidance for specification option: Optional. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Lithuania |
Material | Timber |
Case studies

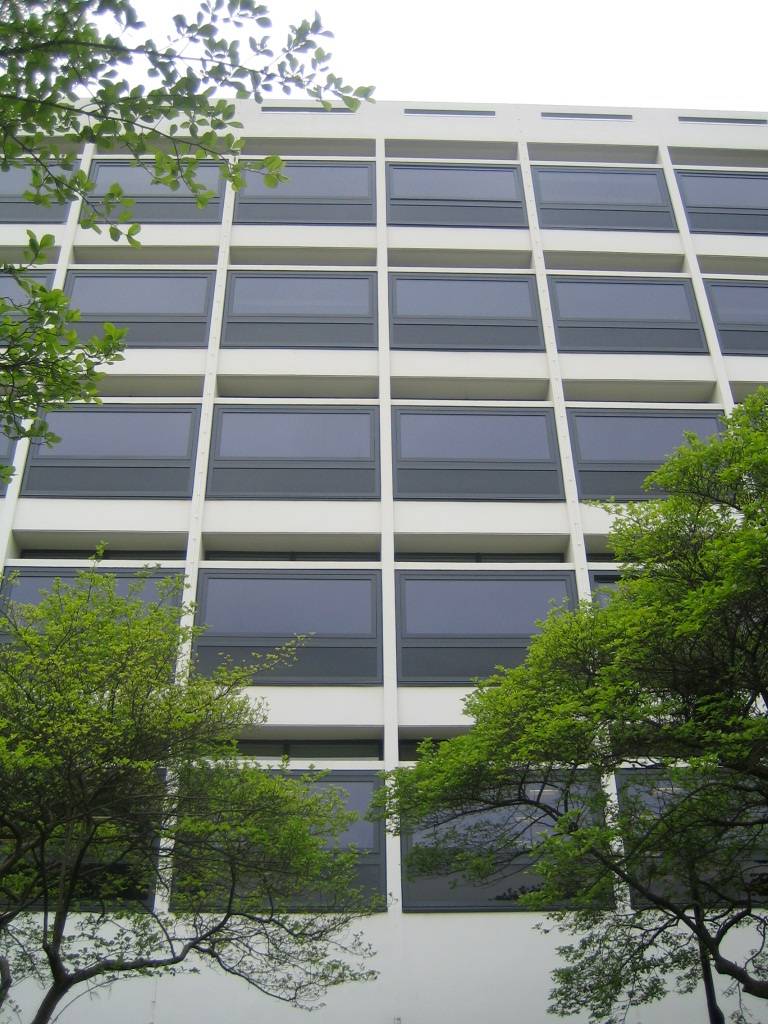

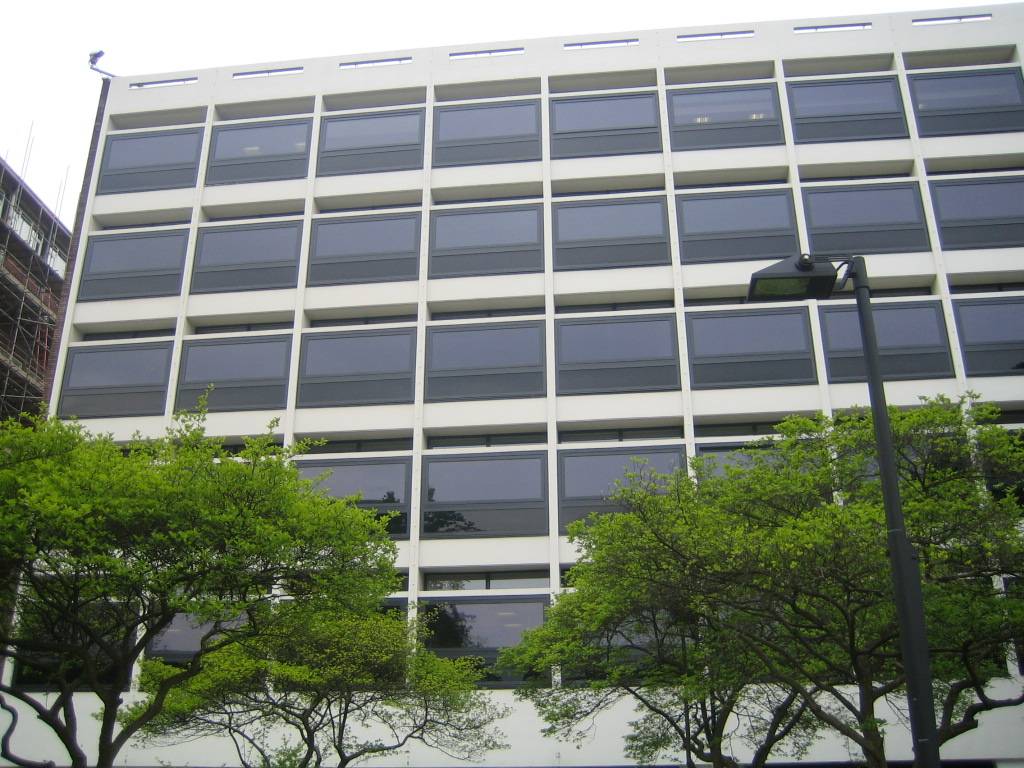

Roscoe Building, Manchester University
