Alperton Stainless Steel Bollard
Description

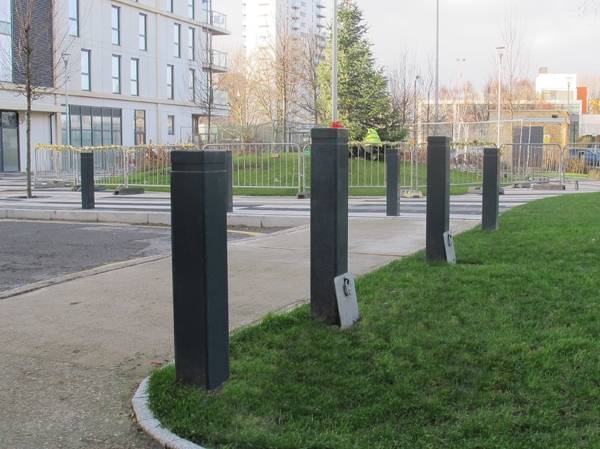

Square bollard with a minimal and clean design. The Alperton stainless steel bollard has a square profile and features a single or double neck recess. The bollards are available in heights of either 900 or 1000 mm; the latter can help the visually impaired and assist with the requirements of the DDA and BS 8300. The bollards can be supplied base plated or removable and the 120 mm square and 150 mm square versions can be supplied as a heavy duty anti-ram raid bollards.

General information
Specification data - Stainless steel bollards

Product Reference

Alperton Bollard

Type

ALP 311

Single neck, 120 x 120 mm, 900 mm high above ground.

ALP 312

Single neck, 150 x 150 mm, 900 mm high above ground.

ALP 313

Single neck, 200 x 200 mm, 900 mm high above ground.

ALP 511

Single neck, 120 x 120 mm, 1000 mm high above ground.

ALP 512

Single neck, 150 x 150 mm, 1000 mm high above ground.

ALP 513

Single neck, 200 x 200 mm, 1000 mm high above ground.

ALP 321

Double neck, 120 x 120 mm, 900 mm high above ground.

ALP 322

Double neck, 150 x 150 mm, 900 mm high above ground.

ALP 323

Double neck, 200 x 200 mm, 900 mm high above ground.

ALP 521

Double neck, 120 x 120 mm, 1000 mm high above ground.

ALP 522

Double neck, 150 x 150 mm, 1000 mm high above ground.

ALP 523

Double neck, 200 x 200 mm, 1000 mm high above ground.

Security bollard

Reinforced with steel core.

Standard bollard

Material/ Finish

Stainless steel, grade 1.4301 (304), bright polished

Stainless steel, grade 1.4301 (304), satin polished

Stainless steel, grade 1.4401 (316), bright polished

Stainless steel, grade 1.4401 (316), satin polished

Fixing

Base plated

Removable

Root fixed

Socket

Not required

F1 60

Small composite socket for 60 mm diameter bollards.

F1 75

Small composite socket for 75 mm diameter bollards.

F1 115

Large composite socket for 115 mm diameter bollards.

SOCKSS

Small steel socket for bollards <170 mm square.

SOCKLS

Large steel socket for bollards ˃170 mm square.

Tape

Not required

TAPE C

Red/ white chevron reflective tape.

TAPE R

Red reflective tape.

TAPE W

White reflective tape.

TAPE Y

Yellow reflective tape.

Standard product features

Height below ground (root fixed):

  • Security bollard: 600 mm.
  • Standard bollard: 300 mm.

Product Options

Socket:

  • Standard steel socket hinge plate for locking with an FB14 padlock or similar.
  • F1 series sockets can accommodate standard size circular bollards, or the bollards can include a welded on circular spigot for large diameter circular bollards and other shapes, such as square.
