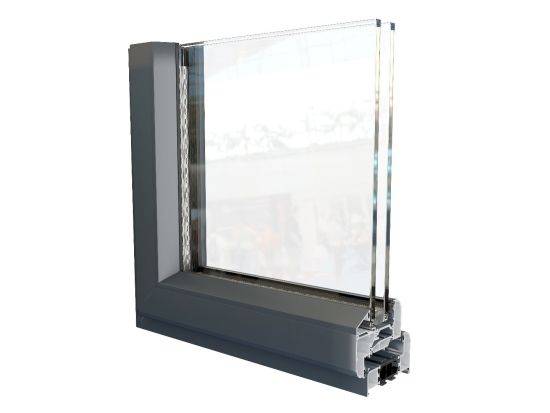

Alitherm 600 - Thermally Broken Casement Window

Name: Alitherm 600 - Thermally Broken Casement Window
Brand: Smart Architectural Aluminium
SKU: txtABT8tRnQrHBTodbdukg

Verified by manufacturer 3 months ago

Smart Architectural Aluminium

Product certifications:

QA Certificate
Certificate type
BRE Certificate
Certificate type
BSI Kitemark
Certificate type
Qualicoat approval
Certificate type
Secured By Design
Certificate type
BSI Kitemark
Certificate type

Thermally broken aluminium, side-hung, top-hung or fixed casement window system.

Jump to:

+44 (0)1934 876100 Website

Application

All general light-use applications, including commercial.

Description

Thermally broken aluminium side-hung, top-hung or fixed casement window system incorporating innovative polyamide thermal break technology, which creates a barrier between the cold air outside and warm air inside. This technology significantly reduces thermal transmittance and enhances the overall U-value of the product.

Alitherm 600 is available in a choice of standard and non-standard colours, including metallic, dual colour, Smart’s Sensations textured, and Alchemy anodized effect finishes.

Features and benefits:

An enhanced system designed to comply with the revisions to the Building Regulations (E&W), Document L compliant.
BRE Green Guide A+ Rating.
System can achieve Window Energy B Rating.
Marine grade 1.4401 (316) marine grade stainless steel hardware option.
Profiles feature an extended polyamide thermal break to enhance thermal performance.
Fabrication is by method of mechanical joints or crimped corners.
Ovolo, chamfered or square profiles.
British Standard Kitemarked system – KM 81580 and KM 81543.

General information

Color	Other
Finish	Powder-coated
Material	Aluminium
Shape	Square Rectangle
Length	Bespoke
Width	864 mm 1400 mm 2100 mm Bespoke
Height	1400 mm 1500 mm 2100 mm Bespoke
Warranty description	25 year Guidance for specification option: Warranty period for powder-coating.

Uniclass	Pr_30_59_98_02 Aluminium window unitsPrimary
CAWS	L10/25 Aluminium windows L10/330 Aluminium windows

Product range	Aluminium Windows

Specification data - Aluminium window units

Standard	- Manufacturer guidance Consult manufacturer and insert requirement.
Third-party certification	BSI Kitemark (BS 4873/PAS 24). Guidance for specification option: Certificate no.: KM 81580 (enhanced security aluminium window systems supplier).
Dimensions and configurations	700 x 1400 mm (maximum). Guidance for specification option: Side-hung: Insert requirement. 700 x 1400 mm (maximum). Guidance for specification option: Top-hung: Insert requirement. Manufacturer guidance W x H.
Product performance	-
Fire performance	-
Fire resistance	Manufacturer standard.
Weather performance	-
UK exposure category	Manufacturer standard.
Air permeability	To Class 4, 600 Pa.
Watertightness	To Class E, 1200 Pa.
Resistance to wind load	To Class AE, 2400 Pa.
Durability	-
Operation and strength characteristics	Manufacturer standard.
Safety	-
Anti-ligature standard	- Manufacturer guidance Consult manufacturer and insert requirement.
Security level	To PAS 24: 2022.
Environmental	-
Background ventilation	Manufacturer standard.
Acoustic performance rating	Manufacturer standard.
Thermal	-
Whole window U-value	1.3 W/m²K (maximum). Guidance for specification option: Depending on design and glass unit.
British Fenestration Rating Council Window Energy Rating	Can achieve Window Energy B Rating.
Frame	-
Profile	Chamfered. Ovolo. Square.
Finish as delivered	-
Coating	Marine quality powder coat.
Colour	Guidance for specification option: Insert single or dual colour requirement from metallic, dual colour, Smart’s Sensations textured, and Alchemy anodized effect finishes.
Film thickness (minimum)	Manufacturer standard.
Ventilator	Manufacturer standard.
Glazing or infill	-
Standard	- Manufacturer guidance Consult manufacturer and insert requirement.
Requirements	Guidance for specification option: Insert requirement, available 28–38 mm as double or triple glazed units.
Hardware	Manufacturer standard. Marine grade 1.4401 (316) stainless steel.
Operation	-
Type	Manual. Motorized.
Fixing features	Manufacturer standard.

Profile	Chamfered externally and flat internally.
Configuration	Side-hung. Top-hung.
FrameDepth	59.5 mm.
Sightline	63.5 mm.
Perimeter edge/ thermal break	Extended polyamide thermal break.
FrameMaterial	Aluminium.

Sustainability data

Country of material origin	Europe Guidance for specification option: Principally UK and EU suppliers.
Country of product manufacture	United Kingdom
Material	Aluminium
