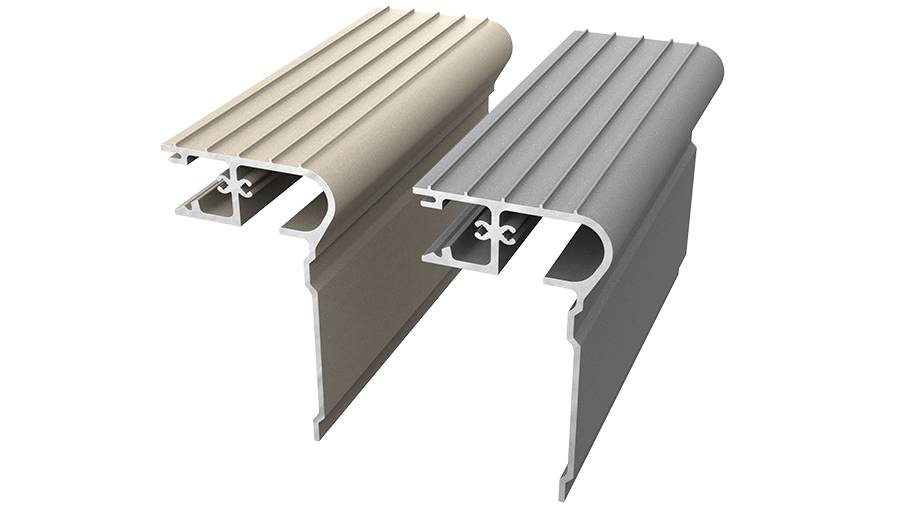

AliDeck Nosing Profile
Verified by manufacturer 1 month ago
Nosing to work in conjunction with all other AliDeck extrusions.
Application

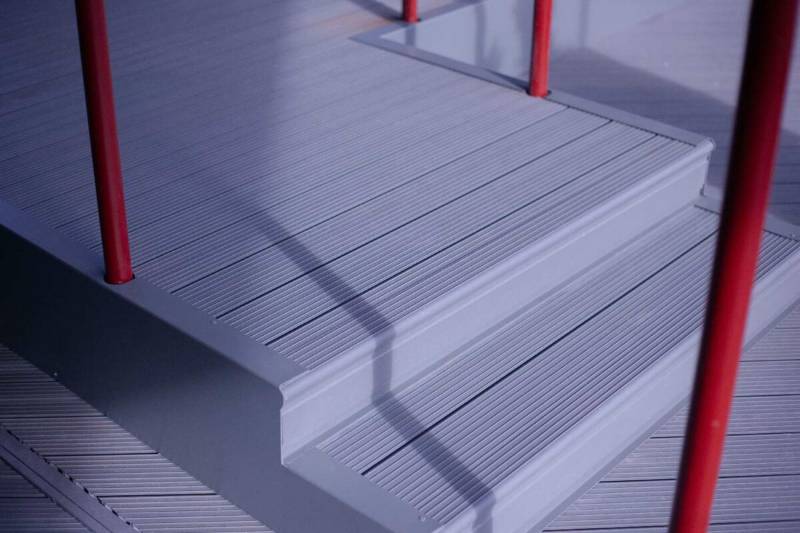

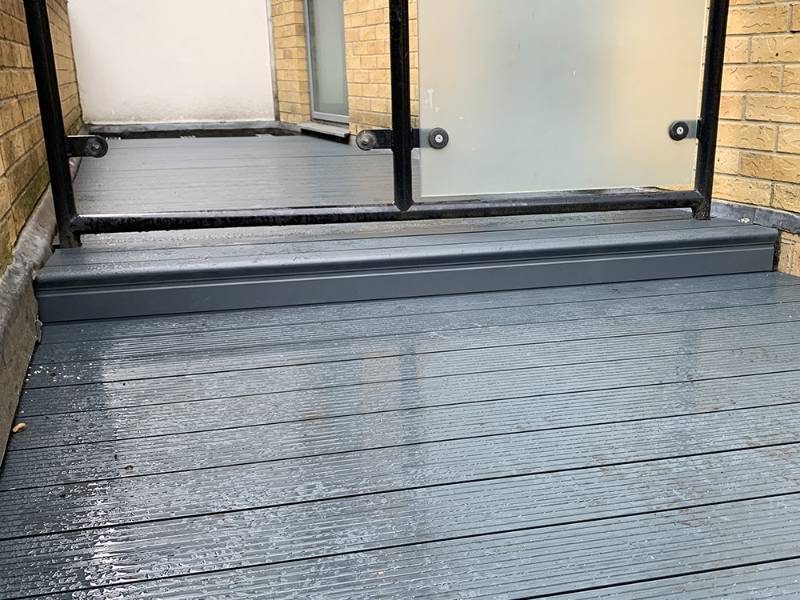

Suitable for use with 20mm and 30mm AliDeck aluminium decking boards to finish step and stair treads.
Description
Modular nosing profiles are designed to work in conjunction with all other AliDeck extrusions. When used with two of our aluminium decking boards, it is commercially compliant for tread specification (280 mm).
Features and benefits:
- Curved nose.
- Textured surface.
- Heat resistant.
- Low maintenance.
- Recyclable.
- Stable in all weather conditions.
- Fire Rated to A2-s1, d0
- Made In Britain
General information
Color | Black Brown Grey Beige Blue Manufacturer guidanceChoice of 13 Standard Colours. |
Finish | Powder-coated |
Material | Aluminium Guidance for specification option: 6063 T6 grade. |
Shape | Other |
Length | 6000 mm Bespoke |
Width | 74.5 mm 75 mm |
Height | 125 mm 70 mm |
Warranty description | 30 year |
Uniclass | |
CAWS | L30/310 Proprietary stairs L30/590 Applied stair nosings |
Product range |
Specification data - Rigid stair nosings
Classification data | |
Profile | Curved. |
Base section | |
Material | Aluminium. |
Size | |
Rise x going | 125 x 75 mm. |
Gauge | 20 mm. 30 mm. |
Colour | Anthracite Grey (RAL 7016). Grey Beige (RAL 1019). Stone Grey (RAL 7030). Quartz Grey (RAL 7039). Clay Brown (RAL 8003). Sepia Brown (RAL 8014). Beige Grey (RAL 7006). Jet Black (RAL 9005). |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium Guidance for specification option: 6063 T6 grade. |
Recyclability | 100% Guidance for specification option: Recyclable. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 67 % |
Expected Life | 60 year |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
AliDeck-System-Accessories-Data-Sheet
Case studies
AliDeck visit fantastic aluminium terrace decking installation at timber replacement project in London
ISWUK & 8build Specify AliDeck Senior Board & Balcony Drainage System at 3 Sheldon Square in Paddington, London
