Alarm-aFence® - Electric fence alarm system

Verified by manufacturer 1 month ago

Jacksons Fencing

Combined alarm and electric fence deterrent.

Jump to:
0800 408 4757 Website

Application

Logistics and distribution companies; power and water companies; oil refineries; high-risk applications.

Description

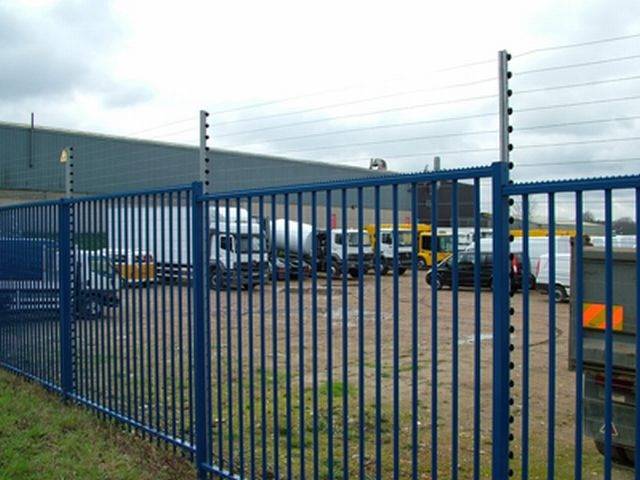

Combined alarm and electric fence deterrent, designed to provide a physical barrier that delivers a non-lethal electric shock and alerts the occupier of any attempted intrusion.


Features and benefits:

  • Alarm signal linked via the controller can be configured to activate sirens, lights, phone diallers, etc.
  • Delivers non-lethal electric shock.
  • Optional zoning of fence to isolate point of attempted breach.
  • Features high-tensile wires spaced at every 50–100 mm with a safe, high-voltage pulse sent down alternate wires every second.
  • Complies with all current standards, including IEC 60335 -2-76.
  • Installation and annual maintenance contracts available.
  • All systems are checked by manufacturer's in-house technicians to make sure that they comply with Jacksons' Code of Practice. Subject to a satisfactory check, a certificate of compliance is issued.
  • System activates 60 times a minute to maintain security.
  • Low incidence of false alarms.
  • Can be installed in almost any situation: can be attached to the top of most existing perimeter fences, walls and sliding/ swing gates.
  • Low maintenance and operating costs.
  • Manufacturer recommends that 'Danger' signs are used every 8–10 m and change in direction along a fence line, incorporating security extras; capable of causing injury even through misuse.

General information

Color

Other

Material

Metal

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_14_67_28 Electric security fencing systemsPrimary

CAWS

Q40/160 Electric security fencing

Q40/30 Proprietary fencing

Q40/430 Proprietary fencing

Specification data - Electric security fencing systems

Standard

To BS 1722-17.

Wire

High-tensile.

Energizer

12 V lead acid battery.

Siren output

12 V d.c.

Strobe output

12 V d.c.

Charging voltage

18 V a.c.

Power consumption

10 W.

Output

5 J/ 5700 V.

Sustainability data

Contains Red List materials

No
