AirRotex-H Air Rotation Air Conditioning Unit - Heat Pump

Verified by manufacturer 1 day ago

Frame Size 1

Powrmatic Ltd Variant:

Hybrid gas and electric heat pump.

Jump to:
+44 (0)1460 53535 Website

Application

Suitable for use in applications such as:

  • Distribution centres.
  • Warehouses.
  • Logistics and freight terminals.
  • E-commerce fulfilment centres.
  • Food and pharmaceutical storage.
  • Manufacturing plants.

Description

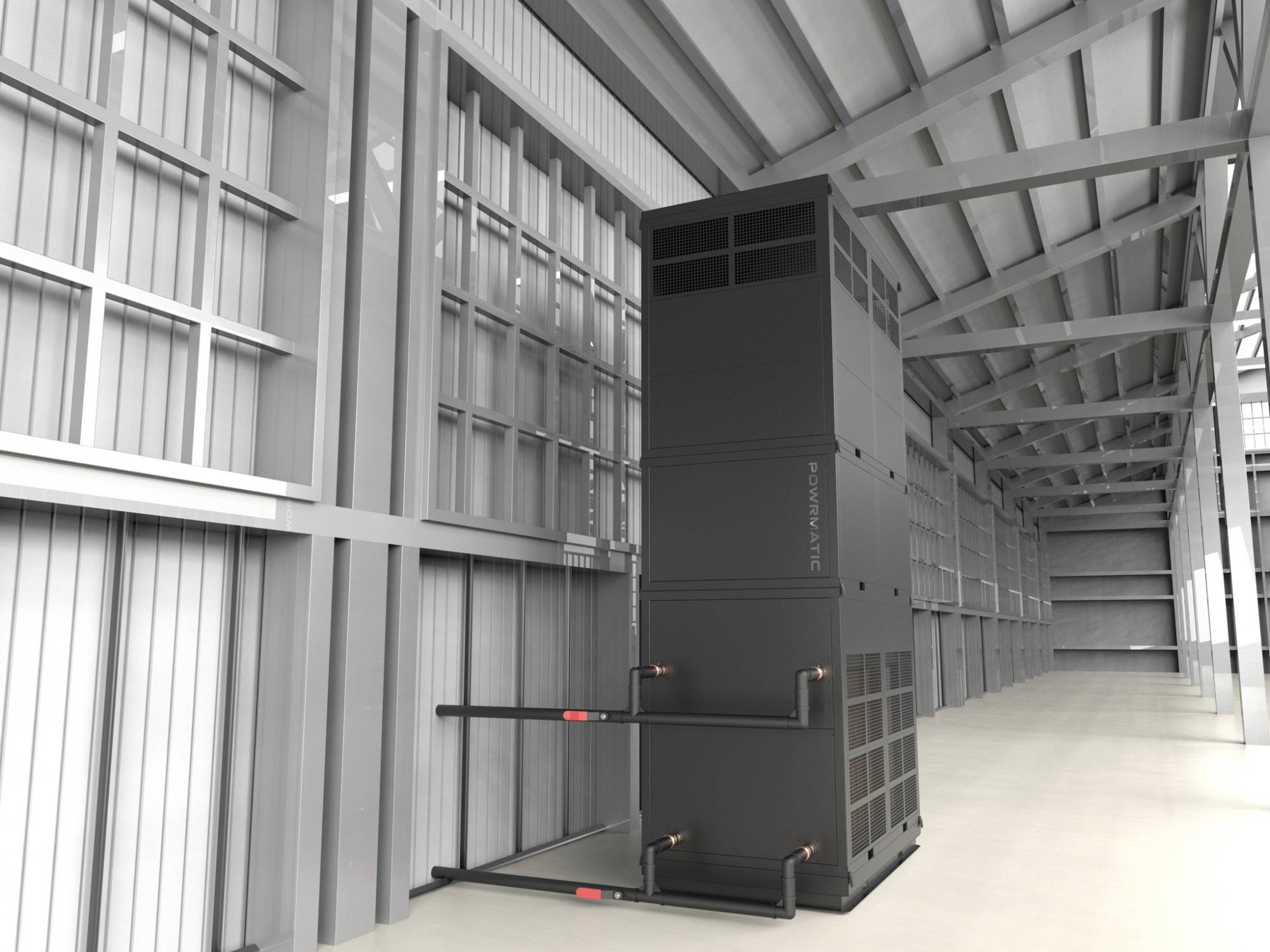

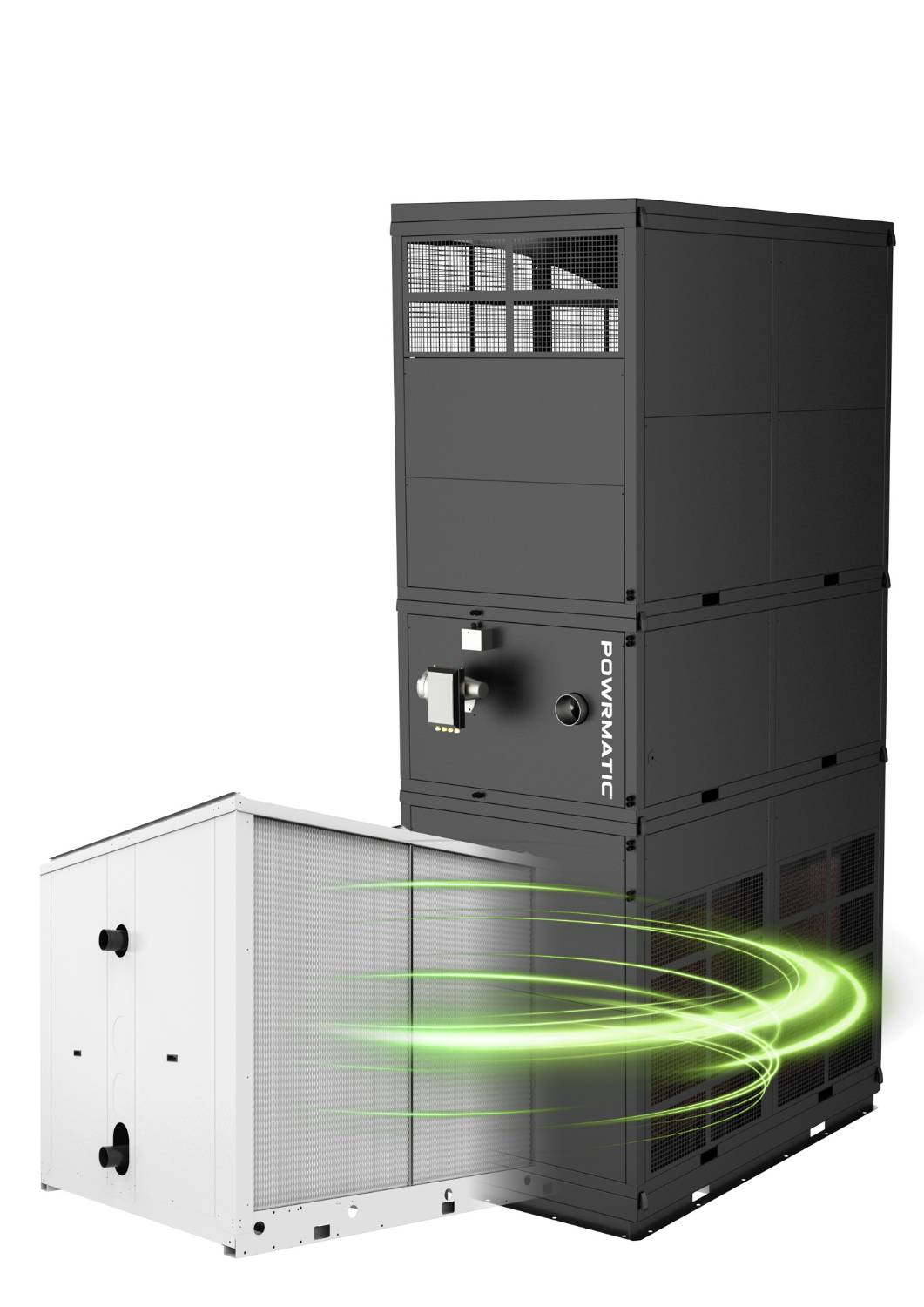

The Powrmatic AirRoteX-H is a hybrid air rotation heating, ventilation, and air conditioning (HVAC) unit engineered for large-scale commercial and industrial spaces. It combines an electric heat pump with a hydrogen-ready gas burner, offering flexible, cost-effective, and energy-efficient climate control across heating and cooling demands. This configuration ensures performance even in low external temperatures, supporting decarbonization and Net Zero goals.

Features and benefits:

  • Hybrid operation: Automatically switches between electric heat pump and gas burner based on external temperature (electric to 5°C, gas thereafter).
  • Hydrogen-ready: Gas burner system is compatible with future hydrogen infrastructure.
  • Air rotation technology: Provides uniform temperature across large spaces, eliminating stratification.
  • Advanced controls: building management systems (BMS) and MODBUS compatible for seamless integration and intelligent temperature control.
  • Low-GWP refrigerant: Utilises R454B to support environmental compliance and sustainability goals.
  • Smart fan control: Reversible electronically communicated (EC) fans modulate speed based on internal temperatures, improving efficiency.
  • Modular design: Sections allow for simplified delivery, installation, and maintenance.
  • No ductwork required: Eliminates need for rooftop units or extensive structural supports.
  • Full frost protection: Safeguards infrastructure and stored goods in cold environments.
  • High capacity: One unit can service up to 100 000 sq. ft.
  • Consistent air temperature: +/-2°C temperature stability throughout conditioned space.
  • BREEAM-aligned.

General information

Color

Grey

White

Material

Steel

Shape

Rectangle

Length

1250 mm

1518 mm

2026 mm

Manufacturer guidance

Depth.

Width

2350 mm

2991 mm

4007 mm

Height

5200 mm

6125 mm

8045 mm

12000 mm

Bespoke

Uniclass

Pr_70_60_37_02 Air-to-air heat pumpsPrimary

CAWS

T90/500 Air-to-air heat pumps

Specification data - Air-to-air heat pumps

Classification data

Heat pump type

Self-contained.

Mode

Heating and cooling.

Integrated services fittings

Gas burner.

Output

-

Heating

100–200 kW.

Guidance for specification option:

  • Heat pump output: 50–100 kW.
  • Gas output: 50–100 kW.

Manufacturer guidance

Total heat output.

Cooling

50–100 kW.

Manufacturer guidance

Total cooling output.

Fan

-

Type

Reversible EC fan.

Refrigerant

R454B.

Power supply

22–45 kW.

Gas

5–11 m³/h.

Manufacturer guidance

Total gas requirement.

Height

Guidance for specification option:

5200–12000 mm. Consult manufacturer for options and insert requirements.

Depth

1250 mm.

Width

2350 mm.

AirFlowRate

6–14 m³/s.

Sustainability data

Material

Steel

Literature

Powrmatic AirRoteX Trade Brochure 1.0

Powrmatic AirRoteX Trade Brochure 1.0

Powrmatic AirRoteX-H Technical Specification

Powrmatic AirRoteX-H Technical Specification
