Air Flex High Speed PVC Roller Door - Roller Shutter

Verified by manufacturer 4 months ago

UK Roller Shutters Ltd

Self-repairing rapid roll-up door.

Jump to:
+44 (0)1384 221743 Website

Application

Suitable uses include:

  • Food manufacturing factories.
  • Production halls.
  • Processing facilities.
  • Loading bays.
  • A variety of other food production facilities.

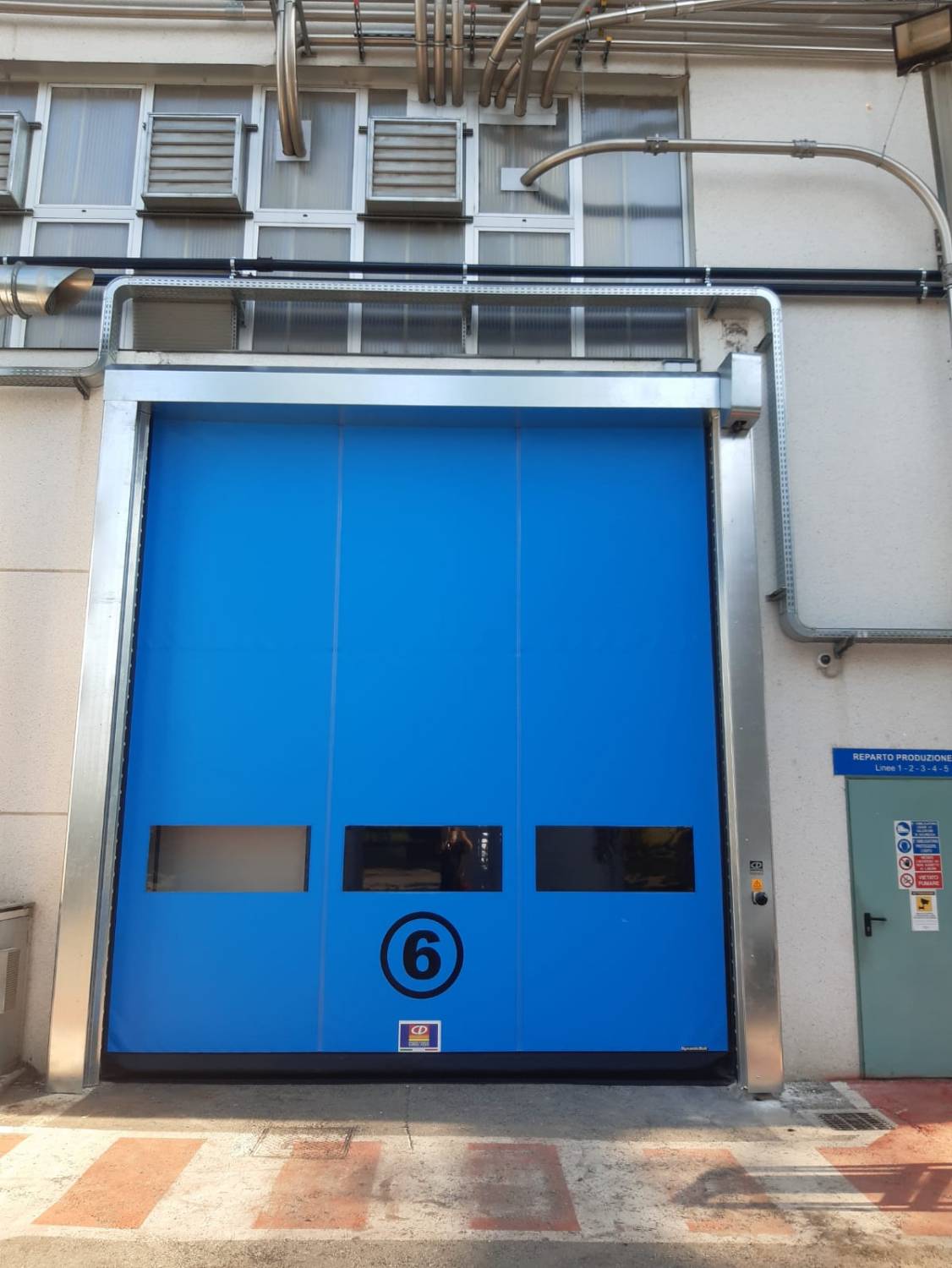

Description

Designed for use in buildings where physical separation is needed even when the main curtain is left open. This intelligent separation is achieved by a horizontal airflow that is triggered when the opening movement starts. This horizontal airflow continues to run until the door is completely closed.


Features and benefits:

  • Enables physical separation between rooms by means of a horizontal air blade, even when the door is open.
  • Protection against the entry of infections and as a barrier for viruses and bacteria.
  • Availability of ventilation with heated air, as a thermal barrier for refrigerated areas.
  • Touchless controls are available which can be suitable for sterile environments due to the degree of tightness and ease of cleaning.
  • A variety of solutions are available depending on your technological and environmental needs.

General information

Material

Polyvinyl chloride (PVC)

Guidance for specification option:

Curtain coating.

Steel

Guidance for specification option:

Galvanized or stainless steel frame.

Shape

Rectangle

Warranty description

One year

Guidance for specification option:

On electrical parts.

Uniclass

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/610 Roller shutters/ curtains

L20/570 High-speed doors

Specification data - Roller shutters

Opening sizes

-

Manufacturer guidance

Bespoke, available on request.

Performance

-

Resistance to wind load

Class 2.

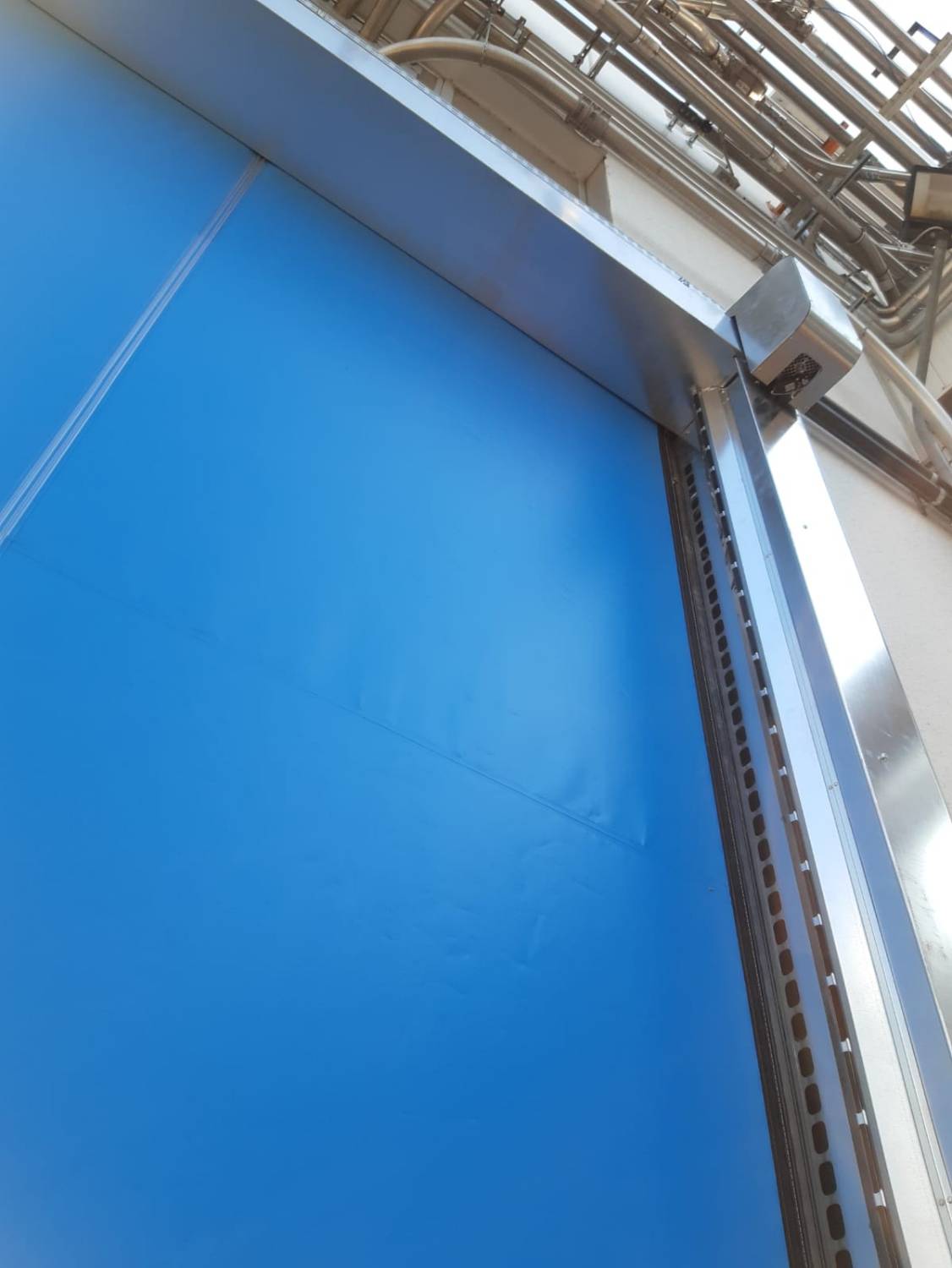

Frame and guides

-

Material

Galvanized steel.

Guidance for specification option:

Standard frame.

Stainless steel AISI 441 - AISI 316.

Guidance for specification option:

Standard frame.

Acciai Inox AISI 441 - AISI 316

Guidance for specification option:

Optional frame.

Operation

-

Mode

Automatic.

Finish

Polyvinyl chloride (PVC).

Guidance for specification option:

Standard curtain coating (1100g/m²).

Food grade (FDA) curtain.

Guidance for specification option:

Optional curtain.

Guides

Standard.

Heated guides/motor.

Guidance for specification option:

For cold room applications.

Dimensions

4500 x 4500 mm.

Manufacturer guidance

Maximum dimensions.

Speed

Up to 2 m/second.

Operating temperature range

-10°C to +50°C.

MotorPosition

Lateral.

Cycles

1 million cycles.

Manufacturer guidance

Working life.

Duty cycle

3 cycles/min.

Sustainability data

Material

Polyvinyl chloride (PVC)

Guidance for specification option:

Curtain coating.

Steel

Guidance for specification option:

Galvanized or stainless steel frame.

Literature

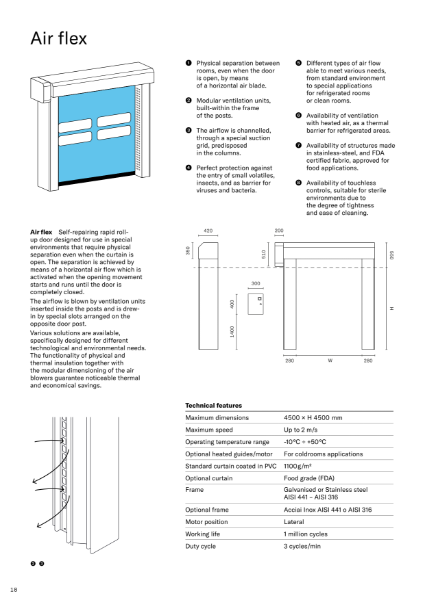

Air-Flex Brochure
