Air / Dirt Separator
Verified by manufacturer 8 months ago

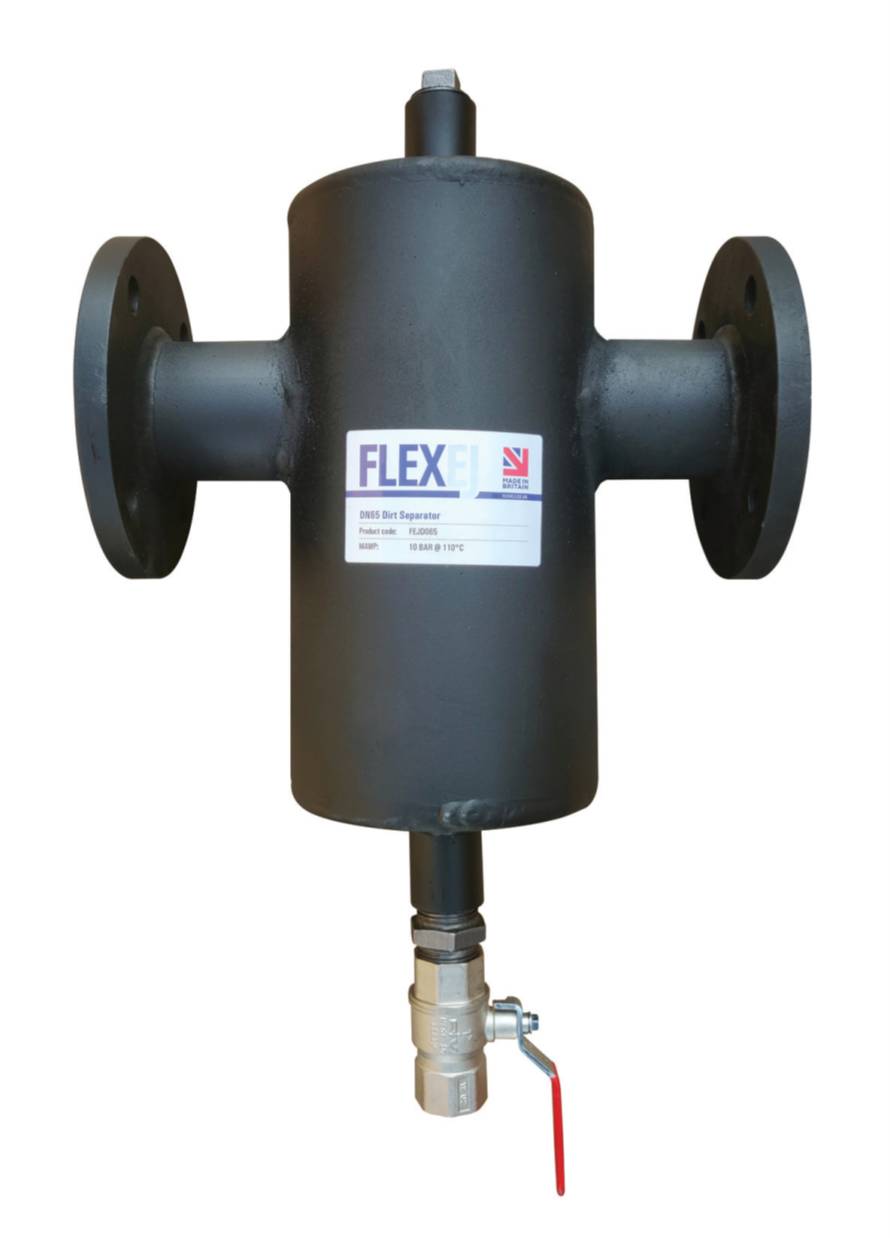

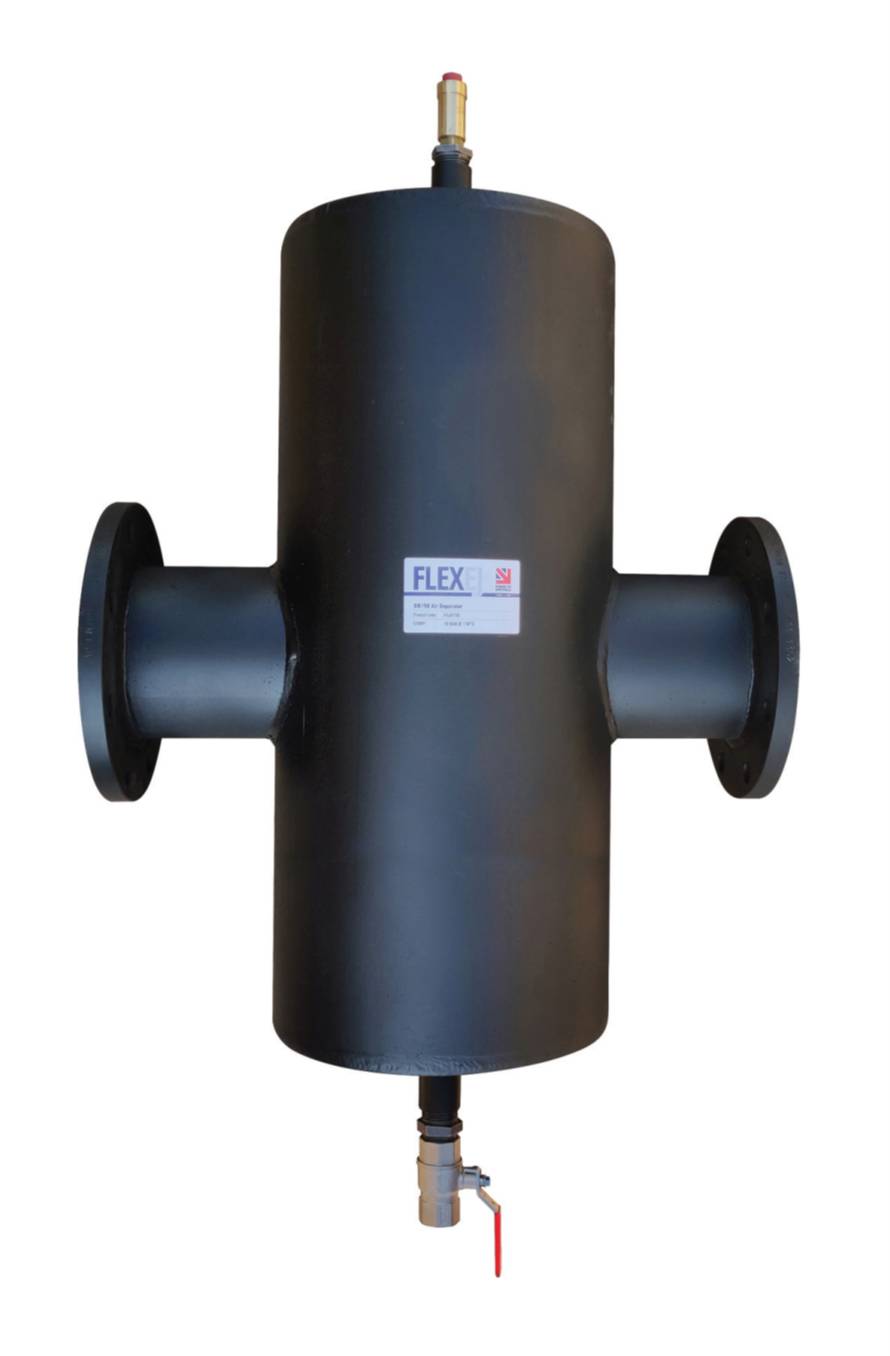

Air & Dirt Separator - FEJAXD032 - DN32 (1¼”)
Air & Dirt Separator - FEJAXD032 - DN32 (1¼”)
A range of air and dirt separators for use in both heating and cooling systems.
Application
For heating water and cooling water services; not suitable for drinking water.
Description
FlexEJ Air, Dirt and Air & Dirt Separators can be used in both heating and cooling systems.
Features and benefits:
- Removes air bubbles and dirt from HVAC piping systems.
- Manufactured in the UK.
- Robust and cost effective.
General information
Color | Black |
Finish | Painted |
Material | Carbon steel |
Shape | Other |
Length | 300 mm 350 mm 460 mm 630 mm |
Width | Bespoke |
Height | 555 mm 560 mm 665 mm 705 mm 710 mm |
Warranty description | One year |
Uniclass | |
CAWS | T90/110 Heating system T90/110 Heating system |
Specification data - Dirt separators
Arrangement | Carbon steel body, with stainless steel air bubble coalescing brush, Flamco Flexvent AAV and DN25 drain valve. |
Material | Body: Carbon steel; Internals: Stainless steel. |
Connections | Threaded BSPT male. |
Length | 300 mm. |
Height | 665 mm. |
Body | DN100. |
Size | DN32 (1¼”). |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Literature
Product Data Sheet - Air & Dirt Separator
Product Data Sheet - Dirt Separator
Product Data Sheet - Air Separator
