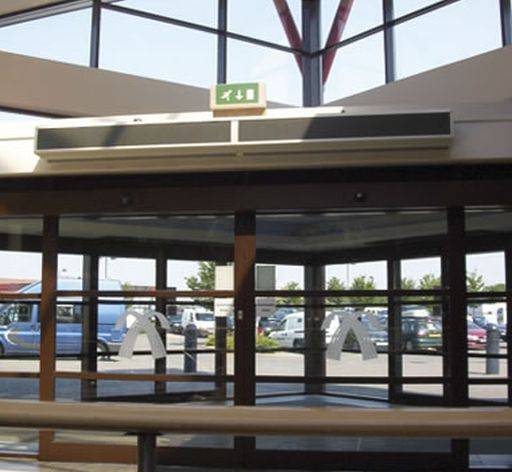

DAB surface-mounted high power commercial air curtains.

Jump to:

Description

A range of commercial electric air curtains.

Features and benefits:

Compact size with thermostatic control as standard.

Water value actuation.

Multiple units operated as one system.

Powerful airstream.

Auto electronic control as standard.

BMS/ BEMS connections.

Supplied with integral bracket (requires 8 mm threaded drop rod not supplied).

Supplied with a three year warranty.

General information

Color	Light grey
Material	Steel and ABS
Size	1057 x 360 x 390 mm
WarrantyDescription	3 years

Uniclass 2015	Pr_70_60_36_02 Air curtainsPrimary

Specification data - Air curtains

Product Reference

DAB

Type

DAB10A

Ambient. Size: 1057 x 360 x 390 mm. Air volume 3000 m³/h (maximum). Noise level: ≥ 58 dB (A).

DAB10AR

Ambient recessed. Size: 1224 x 639 x 337 mm. Air volume: 3000 m³/h (maximum). Noise level: ≥ 58 dB (A).

DABE

Electric. Size 1057 x 360 x 390 mm. Air volume: 3000 m³/h (maximum). 12 kW heat output. Noise level: ≥ 58 dB (A).

DAB10ER

Electric recessed. Size: 1224 x 639 x 337 mm. Air volume: 3000 m³/h (maximum). 12 kW heat output. Noise level: ≥ 58 dB (A).

DAB10W

LPHW. Size: 1057 x 360 x 390 mm. Air volume: 2500 m³/h (maximum). 12 kW heat output. Noise level: ≥ 57 dB (A).

DAB10WR

LPHW recessed. Size: 1224 x 639 x 337 mm. Air volume: 2500 m³/h (maximum). 12 kW heat output. Noise level: ≥ 57 dB (A).

DAB15A

Ambient. Size: 1557 x 360 x 390 mm. Air volume: 3500 m³/h (maximum). Noise level: ≥ 59 dB (A).

DAB15AR

Ambient recessed. Size: 1724 x 639 x 337 mm. Air volume: 3500 m³/h (maximum). Noise level: ≥ 59 dB (A).

DAB15E

Electric. Size: 1557 x 360 x 390 mm. Air volume: 4000 m³/h (maximum). 18 kW heat output. Noise level: ≥ 59 dB (A).

DAB15ER

Electric recessed. Size: 1724 x 639 x 337 mm. Air volume: 4000 m³/h (maximum). 18 kW heat output. Noise level: ≥ 59 dB (A).

DAB15W

LPHW. Recessed. Size: 1557 x 360 x 390 mm. Air volume: 3500 m³/h (maximum). 18 kW heat output. Noise level: ≥ 58 dB (A).

DAB15WR

LPHW recessed. Size: 1724 x 639 x 337 mm. Air volume: 3500 m³/h (maximum). 18 kW heat output. Noise level: ≥ 58 dB (A).

DAB20A

Ambient. Size: 2114 x 360 x 390 mm. Air volume: 6000 m³/h (maximum). Noise level: ≥ 60 dB (A). Parts of the Modular range are supplied as two units.

DAB20AR

Ambient recessed. Size: 2448 x 639 x 337 mm. Air volume: 6000 m³/h (maximum). Noise level: ≥ 60 dB (A).

DAB20E*

Electric. Size: 2114 x 360 x 390 mm. Air volume: 6000 m³/h (maximum). 24 kW heat output. Noise level: ≥ 60 dB (A).

DAB20ER

Electric recessed. Size: 2448 x 639 x 337 mm. Air volume: 6000 m³/h (maximum). 24 kW heat output. Noise level: ≥ 60 dB (A).

DAB20W

LPHW. Size: 2114 x 360 x 390 mm. Air volume: 5000 m³/h (maximum). 24 kW heat output. Noise level: ≥ 59 dB (A).

DAB20WR

LPHW recessed. Size: 2448 x 639 x 337 mm. Air volume: 5000 m³/h (maximum). 24 kW heat output. Noise level: ≥ 59 dB (A).

Standard product features

Technical characteristics:

Airstream width: DAB10: 1 m, DAB15: 1.5 m or DAB20: 2 m.

Mounting height/ air throw (maximum): 4 m.

Air volume (low–high): 8.6–13.5 m/s, model dependant.

Temperature output, low/ high [Δ T]: 12–15/ 14–20°C, model dependant.

Blowers: Two tangential blowers (150 mm impellers), except DAB20 which has four blowers.

Voltage: 400 V ~ 3PN. (230 V ~ 1PN for DAB10–20AR and DAB10–20WR).

Supply rating (Amps per phase): Varies depending on model, consult technical literature for details.

Safety: Motor thermal protection.

Construction/ Finish: Steel with RAL 9010 finish.

Approvals: CE, EN 60335-1,-2–30.

Ingress protection: IPX0.

- DAB10–20W and DAB10–20WR only:

Water coil: Designed for 82/ 71°C flow and return temperatures.

Water flow rate: 0.27 L/s, except for DAB15W and15WR which are 0.43 L/s.

Pressure drop: 6.0 kPa, except from DAB15W and 15WR which are 2.8 kPa.

Control:

- Type:

Hard wired double gang sized control panel for recessed or surface mounting.

- System:

Electronic low voltage. Supplied with wall controls connected via CAT5 patch cables with RJ45 terminations (data signals only). Master/ slave (daisy-chain) connection for single control over a maximum of ten units as one.

- Functions:

Twin fan speeds, twin heat settings, fan run-on circuit (3 minutes), BMS/ BEMS links, door sensor connections, thermostat connections, built-in tamperproof thermostat with control wheel. Auxiliary input for interlocks.

- Type:

Hard wired double gang sized control panel for recessed or surface mounting.

Ceiling aperture size:

DAB10AR/ 10ER/ 10WR: 1160 x 577 mm.

DAB15AR/ 15ER/ 15WR: 1660 x 577 mm.

DAB20AR/ 20ER/ 20WR: 2320 x 577 mm.

Grille size (w x h, open area):

- Outlet:

DAB10W: 1000 x 90 mm.

DAB15W: 1500 x 90 mm.

DAB20W: 2000 x 90 mm.

- Inlet:

DAB10W: 1000 x 265 mm.

DAB15W: 1500 x 265 mm.

DAB20W: 2000 x 265 mm.

Digital objects

Platform	Compatible	Version	Certified to
Revit	Revit 2015	1	1.3
IFC	IFC2X3	1	1.3
IFC	IFC2X3	1	1.3

Download now from NBS National BIM Library

Literature

3. Commercial Brochure

Third party certifications

CE
EN60335-1 & 2-30
