Description

A range of commercial electric air curtains.

Features and benefits:

  • Compact size with thermostatic control as standard.
  • Water value actuation.
  • Multiple units operated as one system.
  • Powerful airstream.
  • Auto electronic control as standard.
  • BMS/ BEMS connections.
  • Supplied with integral bracket (requires 8 mm threaded drop rod not supplied).

Supplied with a three year warranty.

General information
Color

Grey

Material

Steel and ABS

Size

1224 x 639 x 267 mm

WarrantyDescription

3 years

Uniclass 2015
Air curtains (Pr_70_60_36_02)Primary
Specification data - Air curtains
Product Reference

CAB

Type

CAB10A

Size: 1065 x 262 x 321 mm. Air volume: 1200 m³/h (maximum). Noise level: ≥ 54 dB (A).

CAB10E

Size: 1065 x 262 x 321 mm. Air volume: 1200 m³/h (maximum). 9.0/ 4.5 kW heat output. Noise level: ≥ 54 dB (A).

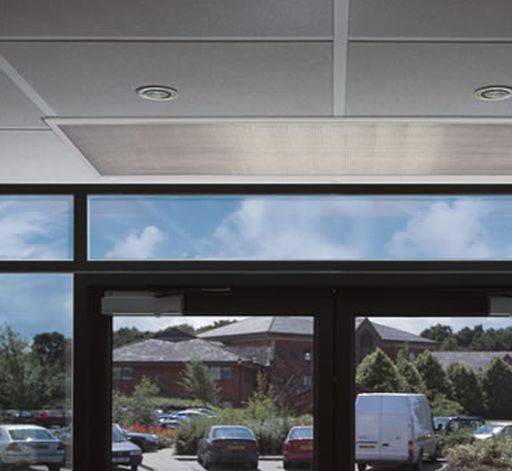

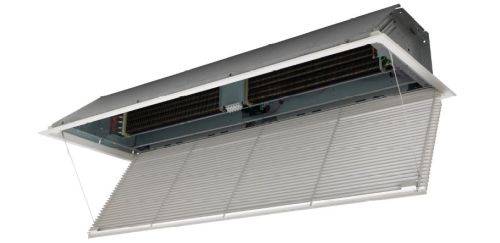

CAB10ER

Recessed. Size: 1224 x 639 x 267 mm. Air volume: 1200 m³/h (maximum). 9.0/ 4.5 kW heat output. Noise level: ≥ 58 dB (A).

CAB15A

Size: 1569 x 262 x 321mm. Air volume: 1800 m³/h (maximum). Noise level: ≥ 55 dB (A).

CAB15E

Size: 1569 x 262 x 321 mm. Air volume: 1800 m³/h (maximum). 13.5/ 6.75 kW heat output. Noise level: ≥ 55 dB (A).

CAB15ER

Recessed. Size: 1724 x 639 x 267 mm. Air volume: 1800 m³/h (maximum). 13.5/ 6.75 kW heat output. Noise level: ≥ 58 dB (A).

CAB20A

Size: 2130 x 262 x 321 mm. Air volume: 2400 m³/h (maximum). Noise level: ≥ 56 dB (A). Part of the Modular range are supplied as two units.

CAB20E

Size: 2130 x 262 x 321 mm. Air volume: 2400 m³/h (maximum). 18.0/ 9.0 kW heat output. Noise level: ≥ 56 dB (A).

CAB20ER

Recessed. Size: 2448 x 639 x 267 mm. Air volume: 2400 m³/h (maximum). 18.0/ 9.0 kW heat output. Noise level: ≥ 58 dB (A).

Standard product features

Technical characteristics:

  • Airstream width: CAB10A/CAB10E/ 10ER: 1 m, CAB15A/CAB15E/ 15ER: 1.5 m or CAB20E/CAB20E/ 20ER: 2 m.
  • Mounting height/ air throw (maximum): 3 m.
  • Air volume (low–high): 5.2–9 m/s, model dependant.
  • Temperature output, low/ high [Δ T]: 23/ 36–39°C, model dependant.
  • Blowers: Two tangential blowers (100 mm impellers), except CAB20E/ 20ER which has four blowers.
  • Voltage: 400 V ~ 3PN.
  • Supply rating (Amps per phase): CAB10E/ 10ER: 13.8, CAB15E/ 15ER: 20.8 or CAB20E/ 20ER: 13.8 x 2.
  • Safety: Motor thermal protection.
  • Construction/ Finish: Steel and ABS with RAL 9010 finish.
  • Approvals: CE, EN 60335-1,-2–30.
  • Ingress protection: IPX0.

Control:

- Type:

Hard wired double gang sized control panel for recessed or surface mounting.

- System:

Electronic low voltage. Supplied with wall controls connected via CAT5 patch cables with RJ45 terminations (data signals only). Master/ slave (daisy-chain) connection for single control over a maximum of ten units as one.

- Functions:

Twin fan speeds, twin heat settings, fan run-on circuit (3 minutes), BMS/ BEMS links, door sensor connections, thermostat connections, built-in tamperproof thermostat with control wheel. Auxiliary input for interlocks.

Ceiling aperture size:

  • CAB10ER: 1160 x 575 mm.
  • CAB15ER: 1660 x 575 mm.
  • CAB20ER: 2386 x 575 mm.

Grille size (w x h, open area):

- Outlet:

  • CAB10E: 1000 x 55 mm.
  • CAB15E: 1500 x 55 mm.
  • CAB20E: 2000 x 55 mm.

- Inlet:

  • CAB10E: 1000 x 175 mm.
  • CAB15E: 1500 x 175 mm.
  • CAB20E: 2000 x 175 mm.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2015 1 1.3
IFC
IFC2X3 1 1.3
IFC
IFC2X3 1 1.3
Download now from NBS National BIM Library
Literature
Third party certifications
  • CE
  • EN60335-1 & 2-30
