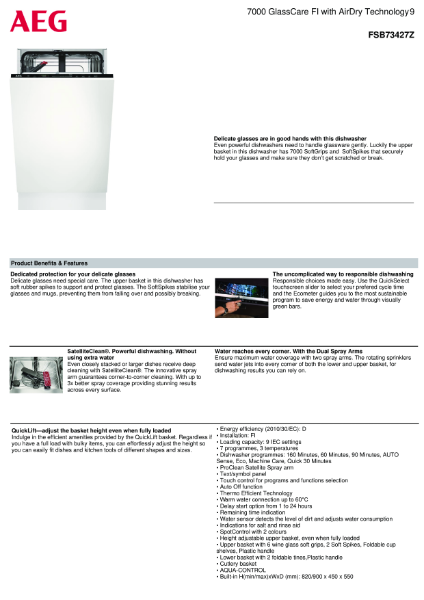

Integrated dishwasher.
For domestic use.
Integrated dishwasher. Responsible choices made easy. Use the QuickSelect touchscreen slider to select your preferred cycle time and the Ecometer guides you to the most sustainable program to save energy and water through visually green bars.
With SatelliteClean®. The innovative spray arm guarantees corner-to-corner cleaning. With up to 3x better spray coverage providing stunning results across every surface.
Features and benefits:
Color | White |
Shape | Rectangle |
Length | 550 mm Guidance for specification option: Depth |
Width | 450 mm |
Height | 900 mm Guidance for specification option: Maximum. Adjustable 820–900 mm. |
Warranty description | Two year |
Uniclass | |
CAWS | N12/400 Dishwashing machines N12/400 Dishwashing machines |
Description | Integrated dishwasher. |
Manufacturer | Electrolux Group. |
Installation | Integrated. |
Arrangement | Nine place settings. |
Material and finish | White-coated steel. |
Dimensions | |
Height (maximum) | 900 mm (adjustable 820–900 mm). |
Width (maximum) | 446 mm. |
Depth (maximum) | 550 mm. |
Rating | 1.95 kW. |
Electrical supply | 220–240 V, 50 Hz. |
Water connections | Cold or hot. |
Environmental rating | E. |
Water consumption (maximum) | 9.9 L. |
Drying performance | Manufacturer guidanceAirDry delivers up to 3x better drying performance when compared to closed-door systems. |
Noise level at 1 m (maximum) | 46 dB. |
Programmes | |
Number (minimum) | Seven.Guidance for specification option: 160 minutes, 60 minutes, 90 minutes, AUTO sense, ECO, machine care, quick 30 minutes. |
Features | Beam on floor two coloured, buzzer, Delay start 1–24 hour, drying phase, GlassCare, machine care, program selected, rinse aid, salt, XtraPower. |
Special features | SatelliteClean®, QuickSelect touchscreen slider.Guidance for specification option: QuickSelect touchscreen slider to select your preferred cycle time and the Ecometer guides you to the most sustainable program to save energy and water through visually green bars. |
Water supply | Hot or cold. |
HoseLength | 150 mm (inlet), 150 mm (outlet). |
Country of product manufacture | Europe |
Manufacturing plant location |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
