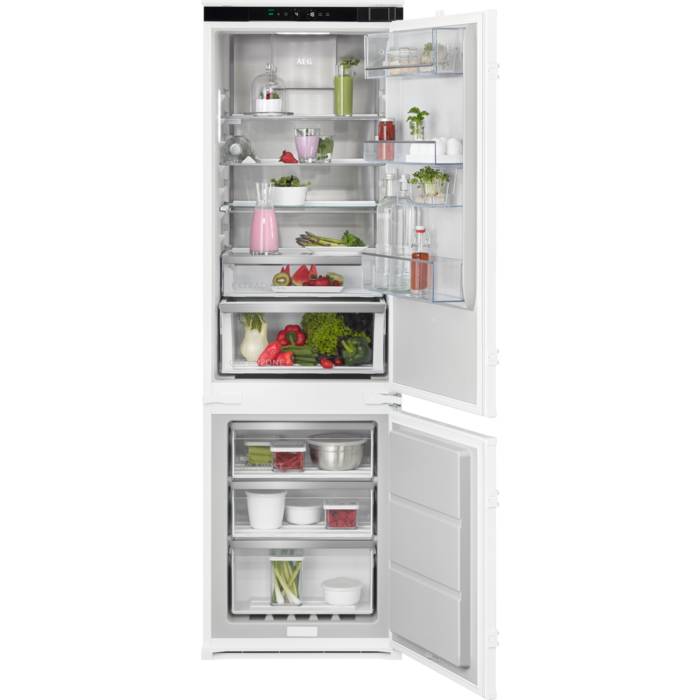

AEG ECOLINE 70/30 COOLING 360° INTEGRATED FRIDGE FREEZER 177.2CM - TSC8M181CS
Verified by manufacturer 4 months ago
Integrated fridge freezer.
Application
For domestic use.
Description
The 8000 Cooling 360° fridge freezer has multiple air channels to deliver consistent cooling.
This protects food on every shelf and can help to reduce food waste by 28%. Stainless steel creates an elegant, premium look for your kitchen.
Features and benefits:
- The GreenZone+ drawer eliminates excess humidity while preserving the right amount of moisture for your veggies. This preserves up to 95% of vitamins after 11 days
- TwinTech® No Frost you never have to defrost the freezer. Its dual cooling system keeps food 60% more hydrated than fridges with one evaporator.* By not using dry freezer air, it maintains ideal humidity and keeps food from drying out.
- Electronic temperature control.
- Child proof control panel.
- Coolmatic.
- Refrigerator lighting: 1, Luna – 1 top and 2 sides
- Visual and acoustic high temperature alarm.
- Visible external door open indicator with audible warning alarm.
- 197 L gross fridge capacity.
- 192 L net fridge capacity.
- Door shelves.
- Removable egg tray.
General information
Color | White |
Material | Steel |
Shape | Rectangle |
Length | 549 mm Guidance for specification option: Depth |
Width | 560 mm |
Height | 1780 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N11/360 Appliances N11/40 Appliances |
Specification data - Fridge-freezers
Climatic class | N.SN.ST.T. |
Installation | Built-in. |
Material and finish | White-coated steel. |
Format | Fridge on top. |
Dimensions | |
Height (maximum) | 1772 mm. |
Width (maximum) | 546 mm. |
Depth (maximum) | 549 mm. |
Refrigerator | |
Net storage | 192 L. |
Drawers | One, full-width. |
Shelves | Two full-width shelves and one FlexiShelf. |
Door arrangement | Three full-width door shelves dairy compartment, Egg trays for 12 eggs. |
Features | Electronic temperature control, child proof control panel. |
Freezer | |
Freezing capacity | 7.5 kg/24 h. |
Drawers | Three, transparent. |
Shelves | None. |
Door arrangement | Reversible. |
Features | Automatic defrost, frost free. |
Electrical supply | 220–240 V, 50 Hz. |
EU energy label rating (minimum) | C. |
Ambient temperature | 10°C. |
Noise | 35 dB. |
Sustainability data
Country of product manufacture | Europe |
Material | Steel |
Manufacturing plant location |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
TSC8M181CS - Data Sheet
TSC8M181CS - User Manual
TSC8M181CS_925556018_eLabel
TSC8M181CS - Product Information Sheet
