Adjustable Track Shelving

Verified by manufacturer over a year ago

Hygenius® Adjustable Track Shelving - Four Tier

Hygenius Variant:

Adjustable track shelving available in a range of sizes.

Jump to:
BOS
+44 (0)1738 633184 Website

Application

Suitable for use in healthcare environments including acute and primary care and staff areas in mental health environments.

Description

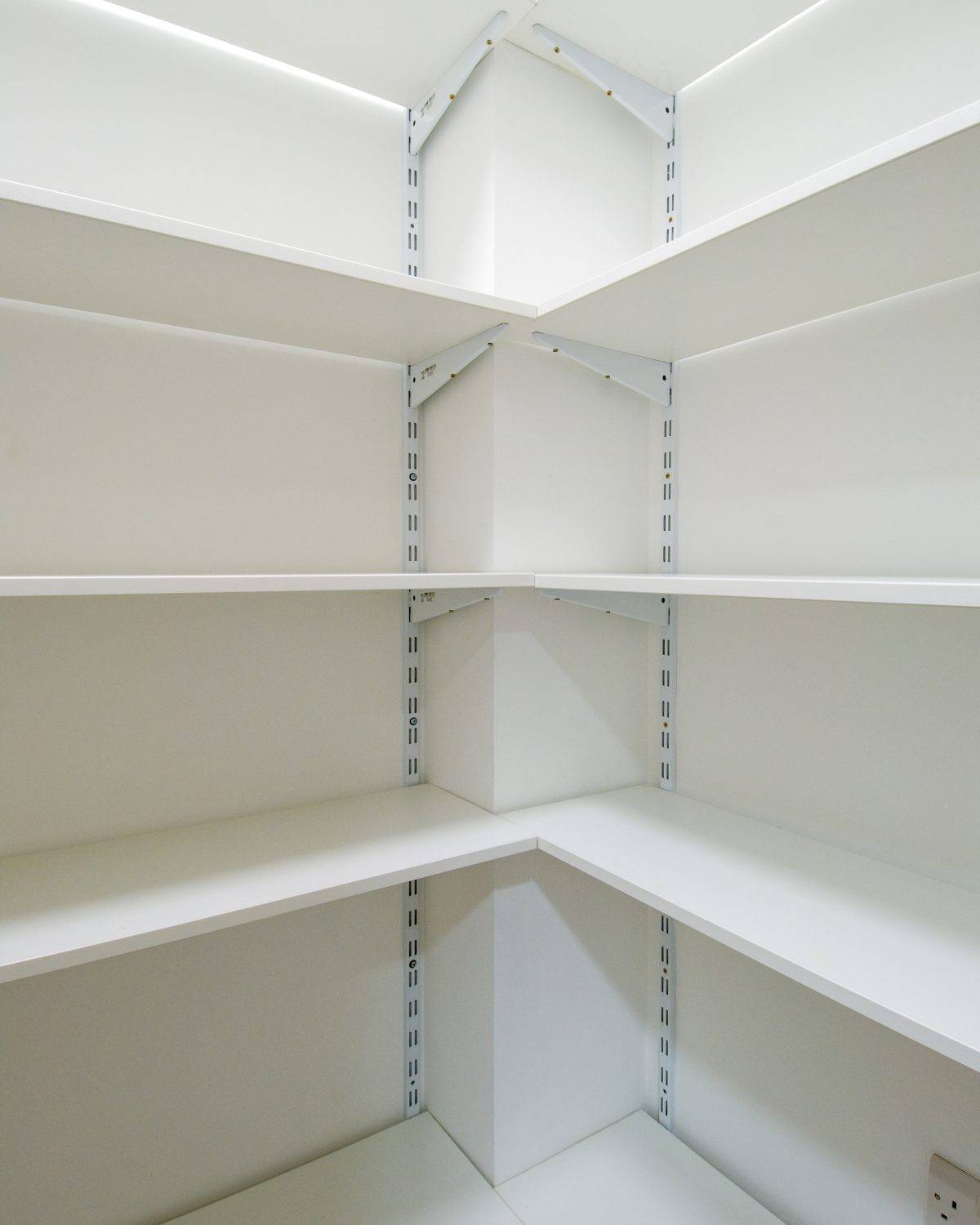

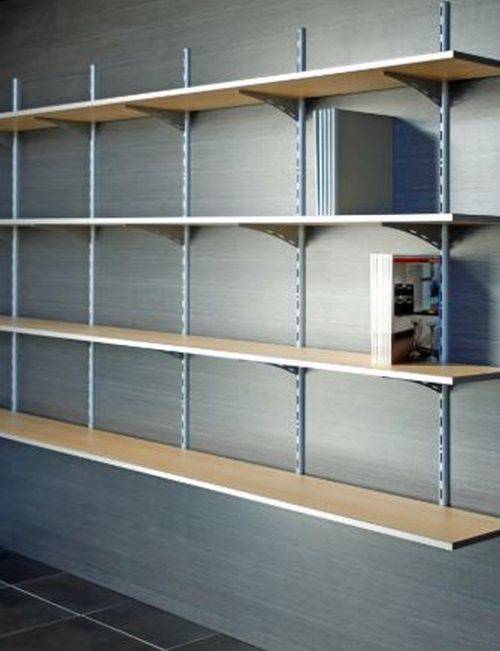

Wall mounted adjustable track shelving suitable for store areas, books and records. Melamine facing to shelves provide an easy clean surface for infection control and cleaning teams.


Features and benefits:

  • Constructed from 18 mm melamine faced particleboard 660 kg/m³, certified in accordance with EN312.
  • 2 mm high impact ABS lipping to all edges.
  • Uprights and brackets finished white powder-coated, with anti-microbial protection.

General information

Color

-

Manufacturer guidance

Finishes from Hygenius® Colour Options range.

Finish

Laminated

Material

Particleboard

Shape

Rectangle

Width

200 mm

300 mm

400 mm

450 mm

500 mm

Show more

Manufacturer guidance

Shelf depth.

Height

18 mm

Manufacturer guidance

Shelf thickness.

Warranty description

Lifetime

Uniclass

Pr_40_30_78_78 ShelvesPrimary

CAWS

N10/160 Shelving systems

N10/30 Shelving systems

Specification data - Shelves

Material

Melamine faced particle board/ acrylonitrile butadiene styrene (ABS).

Guidance for specification option:

Melamine faced particleboard (720 kg/m³), structural performance to BS 5669 / 2 mm thick, high impact ABS lipping.

Dimensions

-

Thickness

18 mm.

Configuration

Four Tier.

Shelf depth

200 mm.

300 mm.

400 mm.

450 mm.

500 mm.

Show more

Form

Wall-mounted.

Finish and colour

Melamine.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit

Revit 2017

1
