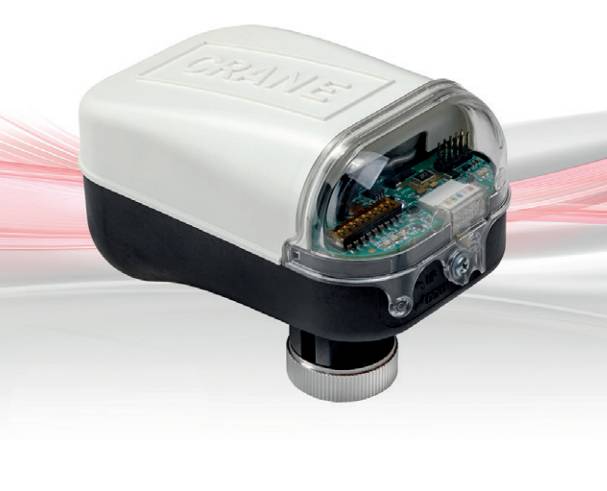

ACTMDBUS Modbus Actuator - Modulating Actuator with Modbus
Verified by manufacturer 2 months ago
Modulating actuator with Modbus, providing reduced commissioning time and costs and system optimisation.
Application
Provision of remote and intelligent valve setting, modulating control and indicated flow rate feedback through a fast and reliable Modbus communication protocol for HVAC applications.
Compatible with the Crane FS range of D995 Peak Pro PICVs from DN15 up to DN50 as well as the Dominator Eco.
Description
Modulating actuator with Modbus.
Features and benefits:
- Reduced commissioning time and costs due to remote commissioning via the Building Management System (BMS) or Crane configurator tool.
- System optimization using the indicated flow rate and position feedback.
- Reduced installation labour and cabling costs due to daisy chaining between actuators.
- Reduced downtime due to error feedback via the BMS.
- Optimized system efficiency and user comfort due to fast responding actuator.
- Isolation function with Class IV leakage when paired with Crane FS D995 PICV and DE40.
- Linear and Equal Percentage Control – configurable control characteristic to suit different applications.
General information
Color | White |
Finish | Smooth |
Material | Plastic Guidance for specification option: Casing. |
Shape | Other |

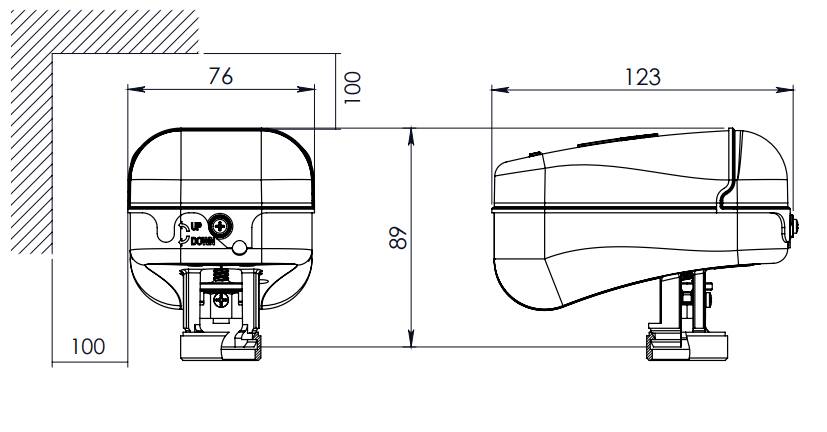

Length | 123 mm |
Width | 76 mm |
Height | 89 mm |
Uniclass | |
CAWS | T90/435 Motorized valves |
Specification data - Motor-driven valve actuators
Standards | EMC 2014/30/UE according to EN 61326-1:2013. |
Actuator type | Electric. |
Action | Linear and equal percentage control. |
Torque | Force: 300 N. |
Stroke | 90°. |
Operation | Modulating. |
Electrical supply | 24 V a.c./ d.c.Guidance for specification option: ±10%. Transformer sizing: 30 VA. Consumption: Supercapacitor charging: 12 W; moving: 6 W; holding position: 1.5 W. |
Ancillaries | Modbus communication protocol.Guidance for specification option: For HVAC applications. |
Speed | 5 s/mm (default) or 3 s/mm. Guidance for specification option: Configurable via Modbus. Speed in emergency positioning: 3 s/mm. |
Ingress protection | IP54. |
Weight | 0.4 kg. |
Operating temperature | -5–55°C. |
