Active Travel Kerb - Highway U - 380-400 - Concrete Kerbs
Verified by manufacturer 11 days ago
BRE Certificate
Certificate type
Constructionline
Certificate type
Ethical Trading Initiative (ETI)
Certificate type
Federation Stone GB
Certificate type
ISO 9001 Quality Management
Certificate type
Precast and washed concrete kerbs.
Application
Commonly used for city centres and shared spaces to provide a good visual separation and more character. They are also designed to cope with the inevitable mounting by vans and trucks for loading and unloading without them tipping or being damaged (aspects of the Dutch Sustainable Safety system of Duurzaam Veilig). The long term advantage being a terms of lower repair and maintenance
Description
Designed and manufactured in Holland, these genuine Dutch kerbs are available in 3 colours of standard concrete and 11 colours of natural stone aggregate topped Kellen Lavaro.
- Precisely manufactured to high tolerances.
- Washed surface provides a high slip resistance from day one of install.
General information
Color | Black Grey Other |
Finish | Coarse |
Material | Precast concrete |
Shape | Rectangle |
Length | 1000 mm |
Width | 400 mm 700 mm |
Height | 250 mm |
Uniclass | |
CAWS | Q10/112 Precast concrete Q10/150 Concrete block Q10/110 Proprietary precast concrete Q10/10 Precast concrete |
Specification data - Concrete kerbs
Standard | To BS EN 1340. |
Physical properties | |
Colour | Light Grey Concrete.Dark Grey Concrete.Black Concrete.Grijs Bont 070.Zwart 100.Zwart/Groen 130.Grijs 012.Wit 701.Grijs/Zwart 30.Grijs/Zwart 32.Zwart/Glisando 160.Rood/Zwart 250.Bruin 300.Wit/Zwart 705. |
Finish | Washed. |
Dimensions | 400 x 250 x 1000 mm. |
Recycled content (minimum) | 15%. |

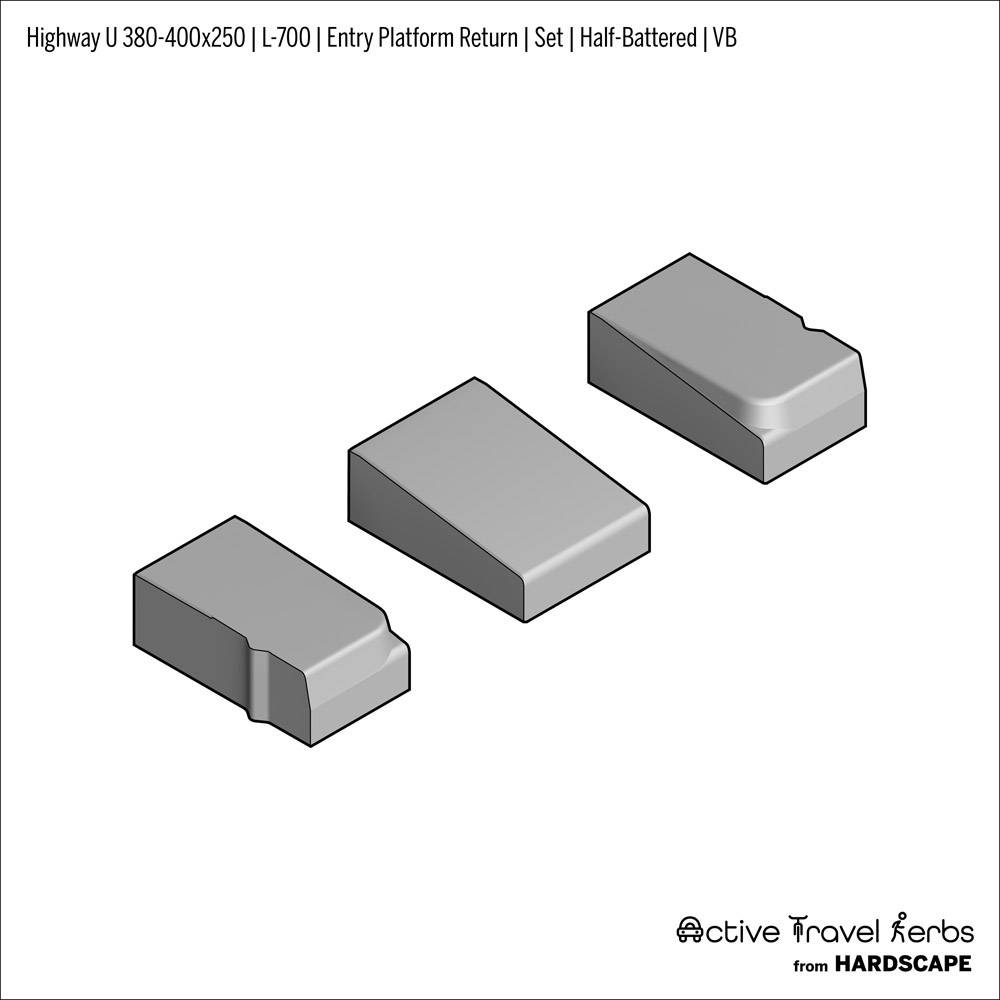

Kerb | 380–400 x 250 mm, Straight, VB, length 1000 mm. 380–400 x 250 mm, Radius external, 2 m, VB, length 785 mm. 380–400 x 250 mm, Radius external, 4 m, VB, length 785 mm. 380–400 x 250 mm, Radius external, 5 m, VB, length 980 mm. 380–400 x 250 mm, Radius external, 7 m, VB, length 1000 mm. |
Type | Concrete. Lavaro. |
Weight Range | 159–229 kg. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Netherlands |
Country of product manufacture | Netherlands |
Material | Precast concrete |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.11 kg COâ‚‚ eq/kg Self declared Manufacturer guidanceSelf declared by manufacturer |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 15 % Guidance for specification option: Minimum. |
Expected Life | 50 year |
Third party certifications
BRE Certificate
BES6002_Issue 2
Constructionline
Constructionline Silver Member Certificate
Constructionline
Constructionline Social Value Certification
Ethical Trading Initiative (ETI)
Ethical Trading Initiative
Federation Stone GB
Hardscape Group Ltd - Stone Fed - 2022 Certificate
ISO 9001 Quality Management
ISO 9001
