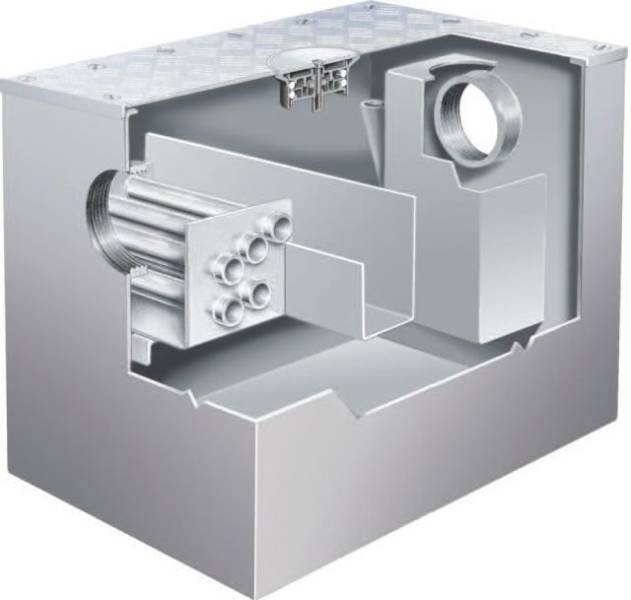

Actimatic grease converter

Description

Designed to provide a natural means of permanently converting grease to biodegradable products. Wade Actimatic maintains a micro-bacterial culture within the grease converter to deal with kitchen effluent.

Converters are manufactured from stainless steel with stainless steel covers and are fully recessed at ground floor level. Wade International also manufacture freestanding grease converters and also units for building into intermediate floors.

General information

CAWS

R12/419 Grease traps and converters

Product range

Grease Converters

Specification data

Product Reference

6030XT

210 litre capacity; 4" BSP threaded inlet/ outlet.

6060XT

410 litre capacity; 4" BSP threaded inlet/ outlet.

6080XT

625 litre capacity; 4" BSP threaded inlet/ outlet.

6215

1250 litre capacity; 6" BSP threaded inlet/ outlet.

6225

2100 litre capacity; 6" BSP threaded inlet/ outlet.

Inlet spigot adapter

T103 100 mm spigot adapter

For BS 416 cast iron pipe.

T105 100 mm spigot adapter

For BS 437 cast iron pipe.

T106 150 mm spigot adapter

For BS 437 cast iron pipe.

T1704 110 mm spigot adapter

For plastics pipe.

T303 160 mm spigot adapter

For plastics pipe.

T501 100 mm spigot adapter

For 100 mm SuperSleve pipe.

T502 150 mm spigot adapter

For 150 mm SuperSleve pipe.

Contractor's choice

As drawing ___

Outlet spigot adapter

T103 100 mm spigot adapter

For BS 416 cast iron pipe.

T105 100 mm spigot adapter

For BS 437 cast iron pipe.

T106 150 mm spigot adapter

For BS 437 cast iron pipe.

T1704 110 mm spigot adapter

For 110 mm plastics pipe.

T303 160 mm spigot adapter

For 160 mm plastics pipe.

T501 100 mm spigot adapter

For 100 mm SuperSleve pipe.

T502 150 mm spigot adapter

For 150 mm SuperSleve pipe.

Contractor's choice

As drawing ___

Automatic dosing system

ADU

Automatic Closing Unit for Actimatic liquid.

Not required

Required

Product Options

Spigot adapter:

Threaded adapters to connect inlet and outlet pipework to converter.

Automatic dosing system:

A mains powered dispenser unit is available for use with Actimatic liquid. The unit automatically doses the converter once daily at a time selected by the user.
