Fully recessed ground floor.
Designed to provide a natural means of permanently converting grease to biodegradable products. Wade Actimatic maintains a micro-bacterial culture within the grease converter to deal with kitchen effluent.

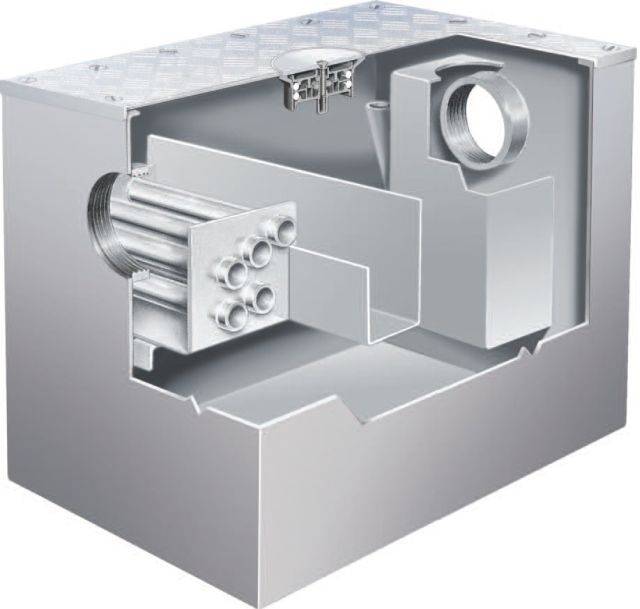

Converters are manufactured from stainless steel with stainless steel covers and are fully recessed at ground floor level. Wade International also manufacture freestanding grease converters and also units for building into intermediate floors.
Uniclass 2015 | |
CAWS | R12/419 Grease traps and converters |
Product Reference | 6030XT210 litre capacity; 4" BSP threaded inlet/ outlet. 6060XT410 litre capacity; 4" BSP threaded inlet/ outlet. 6080XT625 litre capacity; 4" BSP threaded inlet/ outlet. 62151250 litre capacity; 6" BSP threaded inlet/ outlet. 62252100 litre capacity; 6" BSP threaded inlet/ outlet. |
Inlet spigot adapter | T103 100 mm spigot adapterFor BS 416 cast iron pipe. T105 100 mm spigot adapterFor BS 437 cast iron pipe. T106 150 mm spigot adapterFor BS 437 cast iron pipe. T1704 110 mm spigot adapterFor plastics pipe. T303 160 mm spigot adapterFor plastics pipe. T501 100 mm spigot adapterFor 100 mm SuperSleve pipe. T502 150 mm spigot adapterFor 150 mm SuperSleve pipe. Contractor's choiceAs drawing ___ |
Outlet spigot adapter | T103 100 mm spigot adapterFor BS 416 cast iron pipe. T105 100 mm spigot adapterFor BS 437 cast iron pipe. T106 150 mm spigot adapterFor BS 437 cast iron pipe. T1704 110 mm spigot adapterFor 110 mm plastics pipe. T303 160 mm spigot adapterFor 160 mm plastics pipe. T501 100 mm spigot adapterFor 100 mm SuperSleve pipe. T502 150 mm spigot adapterFor 150 mm SuperSleve pipe. Contractor's choiceAs drawing ___ |
Automatic dosing system | ADUAutomatic Closing Unit for Actimatic liquid. Not requiredRequired |
Product Options | Spigot adapter: Threaded adapters to connect inlet and outlet pipework to converter. Automatic dosing system: A mains powered dispenser unit is available for use with Actimatic liquid. The unit automatically doses the converter once daily at a time selected by the user. |
