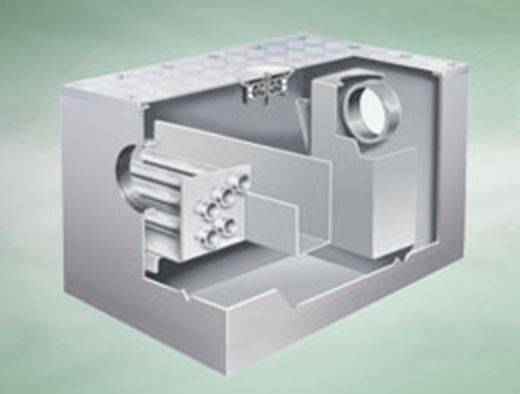

Actimatic grease converter, floor standing
Description

Designed to provide a natural means of permanently converting grease to biodegradable products. Wade Actimatic maintains a micro-bacterial culture within the grease converter to deal with kitchen effluent.

Converters are manufactured from stainless steel with stainless steel covers and are floor standing. Wade International also manufactures units for building into ground and intermediate floors.

General information

Uniclass 2015

Pr_65_52_25_06 Below-ground grease traps and convertersPrimary

CAWS

R11/380 Grease traps and converters

Specification data - Below-ground grease traps and converters

Product Reference

6020LR

160 litre capacity; 4" BSP threaded inlet/ outlet.

6022LR

160 litre capacity; 2" BSP threaded inlet/outlet.

6030

210 litre capacity; 4" BSP threaded inlet/ outlet.

6032LR

290 litre capacity; 2" BSP threaded inlet/ outlet.

6035LR

290 litre capacity; 4" BSP threaded inlet/outlet.

6060

410 litre capacity; 4" BSP threaded inlet/ outlet.

6080

625 litre capacity; 4" BSP threaded inlet/ outlet.

Inlet spigot adapter

T103 100 mm spigot adapter

For BS 416 cast iron pipe.

T105 100 mm spigot adapter

For BS 437 cast iron pipe.

T1704 110 mm spigot adapter

For plastics pipe.

T501 100 mm spigot adapter

For 100 mm SuperSleve pipe.

WT103 100 mm spigot adapter

For plastics pipe.

WT105 100 mm spigot adapter

For BS 416 cast iron pipe.

Contractor's choice

As drawing ___

Outlet spigot adapter

T103 100 mm spigot adapter

For BS 416 cast iron pipe.

T105 100 mm spigot adapter

For BS 437 cast iron pipe.

T1704 110 mm spigot adapter

For plastics pipe.

T501 100 mm spigot adapter

For 100 mm SuperSleve pipe.

WT103 100 mm spigot adapter

For plastics pipe.

WT105 100 mm spigot adapter

For BS 416 cast iron pipe.

Contractor's choice

As drawing ___

Automatic dosing system

ADU

Automatic Closing Unit for Actimatic liquid.

Not required

Required

Product Options

Spigot adapter:

Threaded adapters to connect inlet and outlet pipework to converter.

Automatic dosing system:

A mains powered dispenser unit is available for use with Actimatic liquid. The unit automatically doses the converter once daily at a time selected by the user.
