This product is no longer available

Application

  • Utilities.
  • Rings roads, highways and motorways.
  • Road, rail and underground.
  • Airports.
  • Retail.
  • Industrial units.

Description

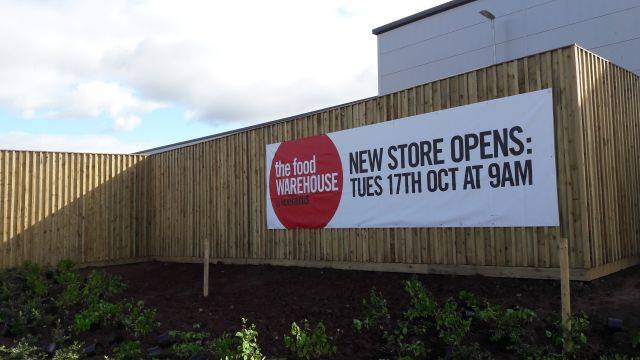

Acoustic timber fencing for noise reduction.

Excessive noise can be problematic in residential, industrial, commercial, education, road, rail, sports, leisure and other applications. Fortunately acoustic fencing, barriers and walls make substantial improvements due to their high levels of attenuation. For this reason, acoustic fencing is often used as a boundary fence adjacent to motorways and other busy roads that are close to residential areas.

Sound reduction:

- 5 m distance from noise:

  • 2 m high: 13.6 dB.
  • 2.5 m high: 16.5 dB.
  • 3 m high: 17.4 dB.

- 10 m distance from noise:

  • 2 m high: 11.3 dB.
  • 2.5 m high: 13.5 dB.
  • 3 m high: 14.1 dB.

- 15 m distance from noise:

  • 2 m high: 10.3 dB.
  • 2.5 m high: 12.5 dB.
  • 3 m high: 12.9 dB.

- 20 m distance from noise:

  • 2 m high: 9.2 dB
  • 2.5 m high: 11.9 dB.
  • 3 m high: 12.4 dB.

Applications:

  • Utilities.
  • Rings roads, highways and motorways.
  • Road, rail and underground.
  • Airports.
  • Retail.
  • Industrial units.

General information
Size

As drawing

Insert details.

As schedule

Insert details.

Finish

Pressure treated

Uniclass 2015
Ss_25_14_63_95 Wood close boarded fencing systemsPrimary
Specification data - Wood close boarded fencing systems
Product Reference

Acoustic Fencing TB-AC-603

Size

As drawing

Insert details.

As schedule

Insert details.

Standard product features

Panel thickness:

25 mm.

Finish:

Pressure treated.

Posts:

Galvanized steel.
