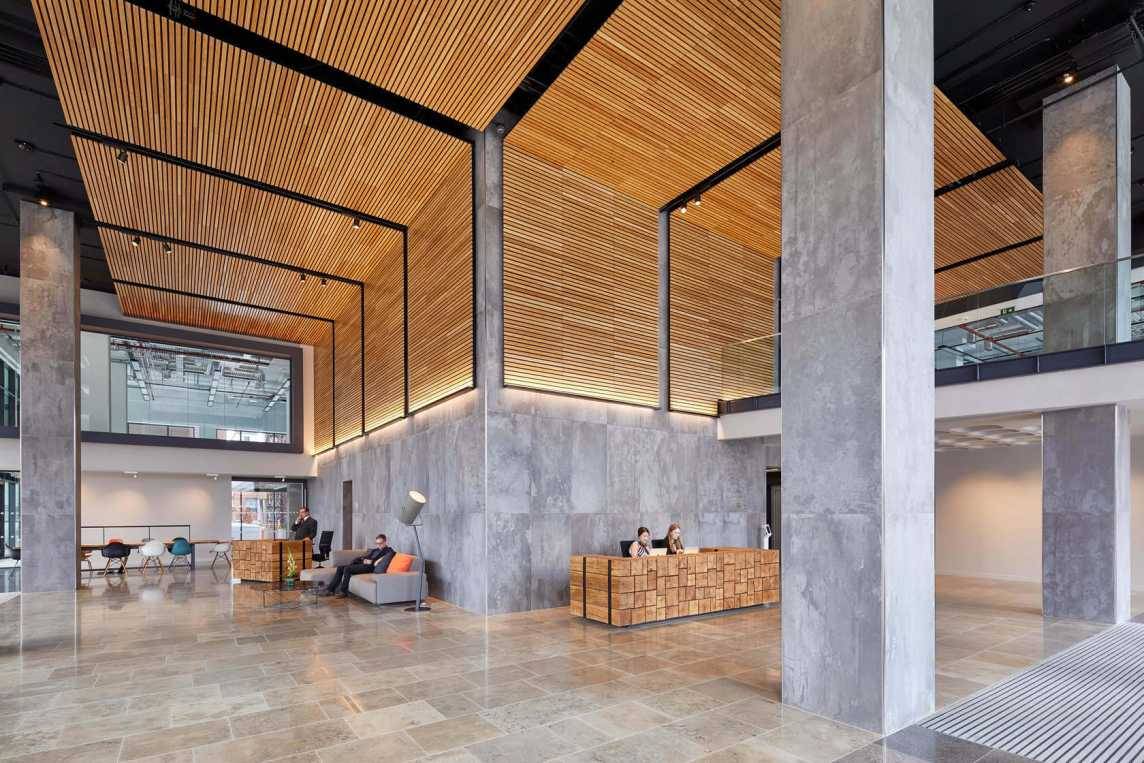

Design-flexible acoustic panels made from wooden slats - proprietary suspended ceiling systems for internal applications.
Application
For internal suspended ceiling lining applications.
Acoustic panelling (up to Class A rated).
Anti-viral coating/ infection control.
Euroclass B Reaction to Fire panels. EN13501-1.
Pre-tested options and project specific testing available.
Description
BCL timber ceilings - acoustic panel systems that offer increased design and performance flexibility for creating wooden slatted ceilings for large commercial spaces.
BCL's open-configurable approach offers thousands of design options, whilst harnessing the efficiency benefits of prefabrication, to deliver high-performance acoustic timber ceilings, sized according to layouts - removing any cutting or modification on site and allowing faster, more efficient installation with less on-site waste.
Features and benefits:
- Full systems fire testing to EN 13501-1.
- BIM level 4 full system design (in Revit or similar).
- Integrated services/ lighting.
- SIDOS compliant ‘bomb-blast’ grids available (including bespoke).
- Flexible wood panel sizes to suit layouts - no cutting = < 1% waste.
- Secret-fixings - wood slats age better and coatings last longer.
- Solid wooden slats - natural variation and beauty.
- FSC® and PEFC certified - Full BREEAM Mat03 credits.
- High recycled content (typically 20%).
- High natural/ organic content (typically 65%).
- Bespoke fire retardant colour coatings.
- Coloured acoustic fabrics.
- Anti-viral/ bacterial infection control options.
- Direct installation service.
BCL offer multiple suspended ceiling grid options, depending on your application and acoustic panel performance requirements, including:
- Fully Demountable - Particularly suitable for flat low level timber ceilings, requiring regular access. Panels lay-into an PPC aluminium sub-grid, which can be fully concealed (CD-1, CD-2) or can be an exposed 'Tegular' system. (ED-1).
- Fixed/ Semi-demountable - Usually used for high-level, pitched, or suspended wood ceilings that require more security. Panels screw-up to underside of aluminium sub-grid and can be mechanically unscrewed for demounting if necessary.
- Fixed/ Curved - Allowing the creation of complex curved surfaces. Timber panels are 'hung' to aluminium tubular sub-grid to create dramatic curves in your suspended ceiling.
- Bomb-blast/ Tethering - Additional options to allow extra security or compliance with special regulations (e.g. SIDOS, DREEAM etc.).
General information
Color | Beige Black Bronze Brown Copper |
Finish | Woodgrain Wood grain Lacquered Stained Anti-microbial |
Material | Wood Timber Aluminium Bamboo Birch plywood |
Shape | Rectangle Square Other Oval Rhombus |
Length | Bespoke |
Width | Bespoke |
Height | 19 mm 44 mm 69 mm 94 mm 119 mm |
Warranty description | 30 year |
Uniclass | |
CAWS | K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system |
Specification data - Modular suspended ceiling systems
System performance | Manufacturer guidanceUp to Class A acoustic (BS EN ISO 11654) and up to Euroclass B-s2, d0 Reaction to Fire (EN 13501-1). Consult manufacturer for fire and acoustic testing and performance details. |
Ceiling support | CD-1 Concealed Demountable.Guidance for specification option: Panels 'lay-in' to a fully concealed T-bar sub-grid and can be easily lifted, tilted and demounted from grid (with or without safety tethers). CD-2 Concealed Demountable Baffle.Guidance for specification option: Baffle style panels 'lay-in' to a fully concealed T-bar sub-grid and can be easily lifted, tilted and demounted from grid (with or without safety tethers). CS-1 Concealed Semi-fixed.Guidance for specification option: Panels 'screw-up' to the underside of fully concealed T-bar sub-grid, can be mechanically unscrewed to demount if required. CF-1 Concealed Fixed (curved areas).Guidance for specification option: Panels 'hang' to a fully concealed tubular sub-grid using suspension hooks. ED-1 Exposed TEGULAR Demountable.Guidance for specification option: 600 x 600 mm square panels 'lay-in' to exposed T-bar sub-grid and can be easily demounted. |
Ceiling units | 19 mm wide x 19 mm deep slats + 11 mm gap.Guidance for specification option: Class A acoustic. 19 mm wide x 44 mm deep slats + 21 mm gap.Guidance for specification option: Class A acoustic. 19 mm wide x 69 mm deep slats + 56 mm gap.Guidance for specification option: Class A acoustic. 19 mm wide x 94 mm deep slats + 51 mm gap.Guidance for specification option: Class A acoustic. 25 mm wide x 94 mm deep slats + 70 mm gap.Guidance for specification option: Class A acoustic. 25 mm wide x 119 mm deep slats + 95 mm gap.Guidance for specification option: Class A acoustic. 44 mm wide x 19 mm deep slats + 11 mm gap.Guidance for specification option: Class D acoustic. 44 mm wide x 19 mm deep slats + 16 mm gap.Guidance for specification option: Class C acoustic. 44 mm wide x 19 mm deep slats + 21 mm gap.Guidance for specification option: Class B acoustic. 44 mm wide x 19 mm deep slats + 31 mm gap.Guidance for specification option: Class A acoustic. 44 mm wide x 44 mm deep slats + 16 mm gap.Guidance for specification option: Class C acoustic. 44 mm wide x 44 mm deep slats + 21 mm gap.Guidance for specification option: Class B acoustic. 44 mm wide x 44 mm deep slats + 31 mm gap.Guidance for specification option: Class A acoustic. 44 mm wide x 144 mm deep + 106 mm gap.Guidance for specification option: Class A acoustic. 44 mm wide x 144 mm deep + 156 mm gap.Guidance for specification option: Class A acoustic. 69 mm wide x 19 mm deep slats + 21 mm gap.Guidance for specification option: Class C acoustic. 69 mm wide x 19 mm deep slats + 36 mm gap.Guidance for specification option: Class B acoustic. 94 mm wide x 19 mm deep slats + 8 mm gap.Guidance for specification option: Class D acoustic. 144 mm wide x 19 mm deep slats + 11 mm gap.Guidance for specification option: Class D acoustic. Random width 25, 44 & 94 mm wide slats + 15 mm gap.Guidance for specification option: Class C acoustic. Random width 25, 44 & 94 mm wide slats + 22 mm gap.Guidance for specification option: Class B acoustic. Random width 25, 44 & 94 mm wide slats + 31 mm gap.Guidance for specification option: Class A acoustic. |
Barriers in ceiling void | |
Fire barriers | Manufacturer guidanceInsert requirements or omit. |
Acoustic barriers | Manufacturer guidanceInsert requirements or omit. |
Plenum barriers | Manufacturer guidanceInsert requirements or omit. |
Acoustic insulation | Acoustic fabric + 25 mm insulation at 45 kg/m3. Acoustic fabric + 50 mm insulation at 45 kg/m3. 12 mm MDF backing board veneered (reflective). 12 mm MDF backing board painted (reflective). Open-screen (non-acoustic). Manufacturer guidanceThe acoustic fabric runs behind the timber slats and comes in several available ranges, varying in colours, texture and thickness. Multiple colours can also be combined across a system to generate distinctive looks or align with your client’s brand colours. |
Profile | Square edge. Rounded. Triangular. Multiple. Guidance for specification option: Multiple shapes can be combined to create varying textures in wood. Insert requirements. Bespoke. |
Timber species | Ash (US). Ash (EU). Ash (UK). Western Red Cedar. Larch (EU). |
Fabric colour | Plain - Ash. Plain - Grey. Plain - Lemon. Plain - Lilac. Plain - Orange. |
Third-party certification | Not required. FSC certified. PEFC certified. SIDOS (bomb-blast) compliant. GiB (Grown in Britain) certified. Manufacturer guidancePlease contact BCL to determine which timber is certified FSC® or PEFC according to your requirements. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | BCL panels are suitable for repurposing, easy to demount and modify or break-down into constituent parts for individual material recycling - typically 90–95% of a system can be easily recycled (based on material mass) |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 30 % Guidance for specification option: Typically. Varies depending on configuration - contact BCL directly for more information. |
Third party certifications
Constructionline Gold
Construction Line (Gold Certification)
ISO 9001 Quality Management
ISO 9001 : 2015 - Quality Management Systems
PEFC
PEFC Chain - of - Custody Certification (BMT-PEFC-COC-1589)
Constructionline
Social Value Certificate
Health & Safety Accreditation
SSIP Acclaim - Health & Safety Accreditation
TRADA
TRADA / Timber Development UK Certificate
Health & Safety Accreditation
TSHP - Risk Management
Grown in Britain - GiB
Grown in Britain - GiB - UK Chain - of - Custody Certification
Literature
BCL Acoustic Timber Systems Technical Information Handbook (new)
Acoustic Curved Timber Ceilings
National Assembly Wales - BCL Acoustic Timber Ceilings
V&A Acoustic Wood Ceiling System
BCL - Anti-viral Acoustic Fabric Range
Case studies
The Senedd, The National Assembly Building for Wales

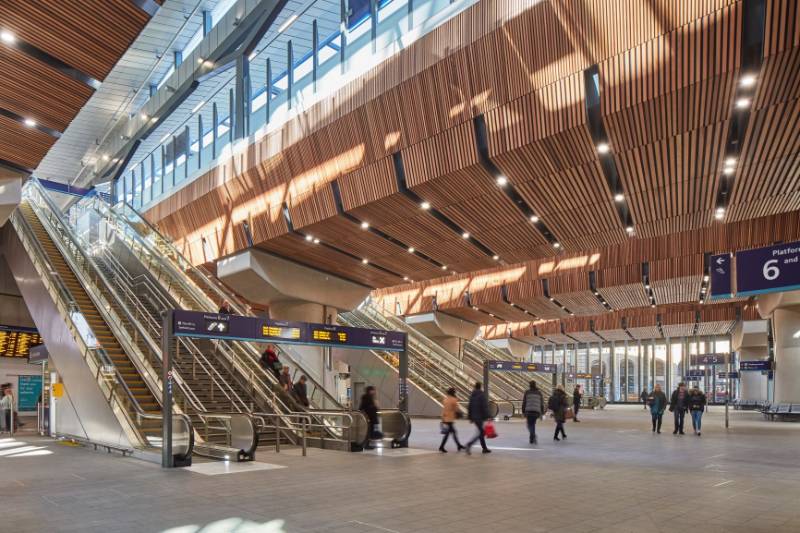

London Bridge Station (Network Rail)
