Acoustic Membrane

Application

  • Suitable for use under most floor finishes such as ceramic, natural stone tiles and soft floor coverings such as vinyl, wood and carpet. The matting has been developed for use in both commercial and residential buildings such as apartments, hotels, hospitals etc.
  • Suitable for refurbishment and new build.

Description

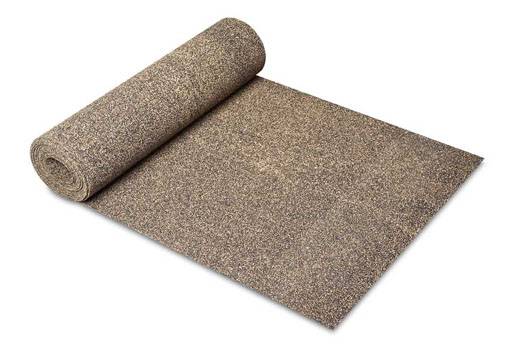

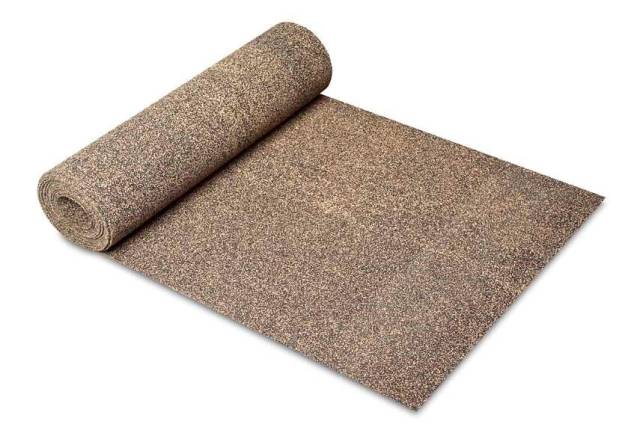

A resilient layer made of waste rubber and cork mixed with a polymer binder.


Features and benefits:

  • Easy to install.
  • 3 mm thick.
  • Ceramic and natural stone tiles.
  • 18 dB impact sound improvement achievable.
  • Good thermal properties.
  • Refurbishment and new build.
  • Building Regulations (E&W) Approved Document E compliant.

General information

Color

Black

Beige

Material

Cement

Shape

Formless

Size

1000 x 20 000 mm

WarrantyDescription

Life time guarantee when used and installed as manufacturers recommendations.

-

Uniclass 2015

Pr_25_57_06_71 Resilient layer insulationPrimary

CAWS

M42/10 Wood flooring

M42/110 Wood block flooring

M42/120 Mosaic parquet panel flooring

M50/150 Sheeting

M50/170 Carpeting

M50/20 Sheeting

M50/25 Carpeting

Specification data - Resilient layer insulation Enhanced data

Material

Waste rubber and cork mixed with a polymer binder.

Density

390 kg/m³.

Thickness

3 mm.

Sound insulation rating

18 dB.

Impact sound improvement achievable.

Dimensions

1000 x 20 000 mm.

Colour

Black.

Beige.

TensileStrength

0.6 N/mm².

ThermalConductivity

0.19 W/mK.

Heat conductivity.

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

2

1.3
Revit

Revit 2016

5

2.0
Download now from NBS National BIM Library
