NBS Source
ACO UniFace™ AL SMART
Compare variants

ACO UniFace™ AL SMART

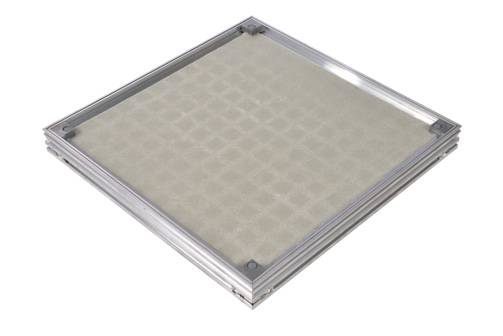

415157 - UniFace™ AL SMART 200 x 200mm Clear Opening Aluminium Recessed Cover Triple Sealed Overall Frame Size 300 x 300 x 50mm FACTA AAA

ACO Technologies plc Variant:

Designed to blend with hard and flexible floors.

Jump to:
+44 (0)1462 816666 www.aco.co.uk

Application

  • Offices.
  • Shopping centres.
  • Transport hubs.
  • Leisure facilities.
  • Residential.
  • Hospitals.
  • Education.
  • Warehousing.
  • Kitchens.
  • Landscaping.

Description

Aluminium and structural composite single recessed covers allow flooring material to be installed directly without the need for a concrete infill making them lighter to remove and faster to install. With a frame depth of only 50 mm, they are ideal for pedestrian traffic applications where installation depths are restricted. Range of size options available for clear openings of between 200 mm and 600 mm. FACTA class AAA.

General information

Shape

Rectangle

Square

Color

Silver

Finish

Polished

Material

Aluminium

Size

300 x 300 mm

400 x 400 mm

500 x 500 mm

550 x 550 mm

600 x 600 mm

Show more

Uniclass

Pr_65_52_01_02 Access covers, gratings and framesPrimary

CAWS

P30/301 Access covers, manhole tops and frames

Specification data - Access covers, gratings and frames Enhanced data

Standards

Fabricated Access Cover Trade Association (FACTA) Specification.

Finish

Polished.

Clear opening (minimum)

200 x 200 mm.

Load class (minimum)

FACTA AAA.

Frame or support

Frame supplied.

Integral accessories

415571 ACO UniFace™ Access Cover Galvanised Steel Lifting/Locking Key Set (2 x keys).

416959 ACO UniFace™ Access Cover 304 Stainless Steel Locking Screw Set (4 x screws and caps).

FrameDepth

50 mm.

FrameSize

300 x 300 mm.

Environmental information

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

25 %

Literature

ACO Floor Access Covers

ACO Floor Access Covers
