ACO UniFace™ AL SHALLOW
Compare variants

ACO UniFace™ AL SHALLOW

415140 - UniFace™ AL SHALLOW 200 x 200mm Clear Opening Aluminium Recessed Cover Triple Sealed Overall Frame Size 300 x 300 x 50mm FACTA AA

ACO Technologies plc Variant:

Designed to blend with hard and flexible floors.

Jump to:
+44 (0)1462 816666 www.aco.co.uk

Application

  • Offices.
  • Shopping centres.
  • Transport hubs.
  • Leisure facilities.
  • Residential.
  • Hospitals.
  • Education.
  • Warehousing.
  • Kitchens.
  • Landscaping.

Description

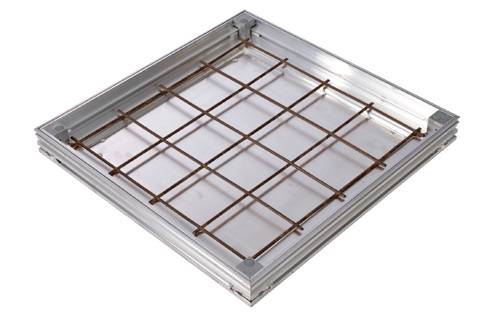

Aluminium single recessed covers with a frame depth of only 50 mm. Ideal for pedestrian traffic applications where installation depths are restricted. Wide range of size options available for clear openings of between 200 mm and 1200 mm. FACTA class AA.

General information

Shape

Rectangle

Square

Color

Silver

Finish

Polished

Material

Aluminium

Size

1000 x 1000 mm

1000 x 700 mm

1100 x 1100 mm

1100 x 700 mm

1100 x 900 mm

Show more

Uniclass

Pr_65_52_01_02 Access covers, gratings and framesPrimary

CAWS

P30/301 Access covers, manhole tops and frames

Specification data - Access covers, gratings and frames Enhanced data

Standards

Fabricated Access Cover Trade Association (FACTA) Specification.

Finish

Polished.

Clear opening (minimum)

200 x 200 mm.

Load class (minimum)

FACTA AA.

Frame or support

Frame supplied.

Integral accessories

415571 ACO UniFace™ Access Cover Galvanised Steel Lifting/Locking Key Set (2 x keys).

416959 ACO UniFace™ Access Cover 304 Stainless Steel Locking Screw Set (4 x screws and caps).

FrameDepth

50 mm.

FrameSize

300 x 300 mm.

Environmental information

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

25 %
