ACO S Range

0270 - ACO S Range S100 S1 Sloping Depth Drainage Channel with Cast Iron Rail 1000mm F 900

ACO Technologies plc Variant:

Surface drainage for heavy duty applications.

Jump to:
+44 (0)1462 816666 www.aco.co.uk

Application

  • Public landscaping.
  • Car parking.
  • HGV parking.
  • Petrol station forecourts.
  • Light industrial.
  • Heavy industrial.
  • Airport (airside).
  • Distribution yards.
  • Ports and dock side.
  • Security areas.
  • SuDs.

Description

ACO S Range is a channel drainage system designed to provide efficient removal of surface water in heavy duty applications.


Manufactured from Vienite, ACO high strength recycled polymer concrete, ACO S Range is tough channel drainage system with excellent chemical resistance. Integral cast iron edge rails provide maximum protection for the channel body.

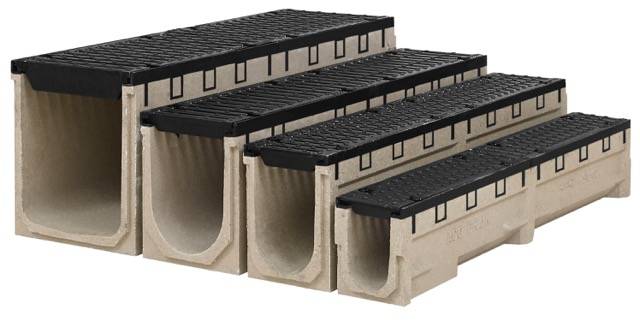

The S Range system is available in four widths, 100 mm, 150 mm, 200 mm and 300 mm has constant and sloping depths channels for optimum performance and system design.


The ACO S100 system has a choice of slotted, Heelguard™, intercept and solid cover ductile iron gratings to ensure a wide variety of applications are catered for. The ACO S150, S200 and S300 systems are supplied with slotted ductile iron gratings. All ACO S Range gratings come complete with bolts to ensure gratings can be locked and accessed when required.


The system is fully certified to BS EN 1433:2002 up to and including Load Class F 900 applications - suitable for extremely high wheel loads including ports, docks and aircraft pavements.


Sizes and gratings:

The S Range system is available in four widths, 100 mm, 150 mm, 200 mm and 300 mm has constant and sloping depths channels for optimum performance and system design.


ACO S100 has a choice of slotted, heelguard, intercept and solid cover gratings.


All gratings come complete with locking bolts.

General information

Color

Other

Natural.

Material

Polymer concrete

Size

1000 x 390 x 360 mm

1000 x 309 x 279 mm

1000 x 311 x 286 mm

1000 x 205 x 320 mm

1000 x 205 x 270 mm

Show more

Uniclass

Pr_65_52_24_24 Drainage channels with gratingsPrimary

CAWS

Q10/30 Linear slot drainage channel system

Q10/180 Drainage channel systems with gratings

Specification data - Drainage channels with gratings Enhanced data

Standard

To EN 1433:2002.

Material

Polymer concrete.

Gratings

-

Colour

Natural.

Load class (minimum)

F 900.

Integral accessories

0411 ACO S Range S100 S106 Closing endcap.

0413 ACO S Range S100 S206 Closing endcap.

0414 ACO S Range S100 S306 Closing endcap.

0415 ACO S Range S100 S108 Outlet endcap.

0416 ACO S Range S100 S208 Outlet endcap.

0418 ACO S Range S100 S308 Outlet endcap.

0419 ACO S Range S100 S109 Inlet endcap.

0420 ACO S Range S100 S209 Inlet endcap.

0421 ACO S Range S100 S309 Inlet endcap.

0858 ACO S Range S100 Step connector 60 mm.

4223 ACO S Range S100 Sump unit assembly with cast iron rail + silt bucket 500 mm F 900.

0056 ACO 820 Drain union PVC-U Ø110 mm.

0057 ACO 821 Drain union oval to round PVC-U 110/Ø160 mm.

0058 ACO 822 Drain union PVC-U Ø160 mm.

2640 ACO 920 Foul air trap PVC-U Ø110 mm.

2638 ACO 922 Foul air trap PVC-U Ø160 mm.

7931 ACO 940 Roddable foul air trap MDPE Ø110 mm.

7932 ACO 950 Roddable foul air trap MDPE Ø160 mm.

32599 ACO Polymer concrete repair kit.

33601 ACO Gully assembly and bucket 601F.

33602 ACO Gully assembly no bucket 602F.

33607 ACO Gully top assembly only 607F.

33604 ACO Grating and frame 604F.

7060 ACO Gully connector 615.

33603 ACO Gully intermediate unit 603.

33605 ACO Gully base unit 605.

33606 ACO Bucket polyethylene 606.

0776 ACO S Range S100 Intercept ductile iron grate 500 mm E 600.

4604 ACO S Range S100 Slotted ductile iron grate 500 mm F 900.

0774 ACO S Range S100 Heelguard™ ductile iron grate 500 mm F 900.

7626 ACO S Range S100 Solid ductile iron grate 500 mm F 900.

2324 ACO S Range Bolts only.

1367 ACO Grating lifting tool 835.

1450 ACO S Range S100 grating only ductile iron slotted 500 mm F 900.

0425 ACO S Range S100 grating only ductile iron heelguard 500 mm F 900.

2695 ACO S Range S100 grating only solid cover ductile iron 500 mm F 900.

0438 ACO S Range S100 grating only ductile iron intercept 500 mm E 600.

Channel

Linear.

Type of fall

Sloping.

Dimensions

1000 x 155 x 143 mm.

Length x Width x Depth.

Bore

U shape.
