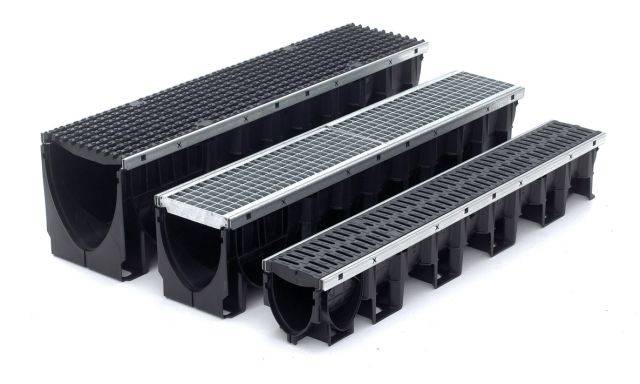

A 100 mm wide general purpose recycled polypropylene channel drainage system.
MultiDrain M100PPD is suitable for use in civic pedestrian areas, light use roadways, forecourts and car parks. It is not suitable for carriageways of public roads or motorways. The system comes complete with a wide range of gratings including BrickSlot tops, sump unit, accessories and unions for connection to sub-surface drainage.
Channel design improves flow velocity, promotes self cleansing
Choice of gratings and accessories
Choice of outlet options, gullies, sumps or channel knockouts
Easily cut to 500 mm lengths
Galvanized edge rail for improved strength
Grating fixing improves hydraulic capacity
Lightweight design is simple and fast to install
Strong and robust channel design
Q10/180 Drainage channel systems with gratings
BrickSlot galvanized steel access unit single slot offset
BrickSlot galvanized steel top single slot offset
BrickSlot galvanized steel access unit twinslot offset
BrickSlot galvanized steel top twinslot offset
BrickSlot galvanized steel access unit twinslot central
BrickSlot galvanized steel top twinslot central
Ductile iron solid cover
‘Heelguard™’ ductile iron
‘Heelguard™’ resin composite (black)
‘Heelguard™’ Intercept ductile iron
‘Heelguard™’ mesh galvanized steel
Intercept ductile iron
Intercept profile galvanized steel
Flag ductile iron
Leaf ductile iron
Mosaic ductile iron
Mesh galvanized steel
Perforated galvanized steel
Slotted ductile iron
Slotted galvanized steel
110 mm foul air trap
160 mm foul air trap
110 mm vertical outlet connector
160 mm vertical outlet connector
Shallow Universal Endcap
75 mm or 100 mm deep channel.
Sump unit with sediment bucket
Including 160 mm vertical outlet connector.
150 mm deep channel.
Universal Gully assembly comprising top, base, bucket and grating
Standard product features
Nominal bore size:
- Load class A15 (Pedestrian areas):
- Load class B125 (Cars and light vehicles):
Intercept profile galvanized steel.
- Load class C250 (Cars and light vans):
- Load class D400 (Cars, vans and HGV's, not suitable for carriageways or public roads):
