Application

  • Hotel kitchens.
  • Restaurants.
  • Hospital clinics and care homes.
  • Large catering establishments.
  • Factory and office canteens.
  • University catering facilities.

Description

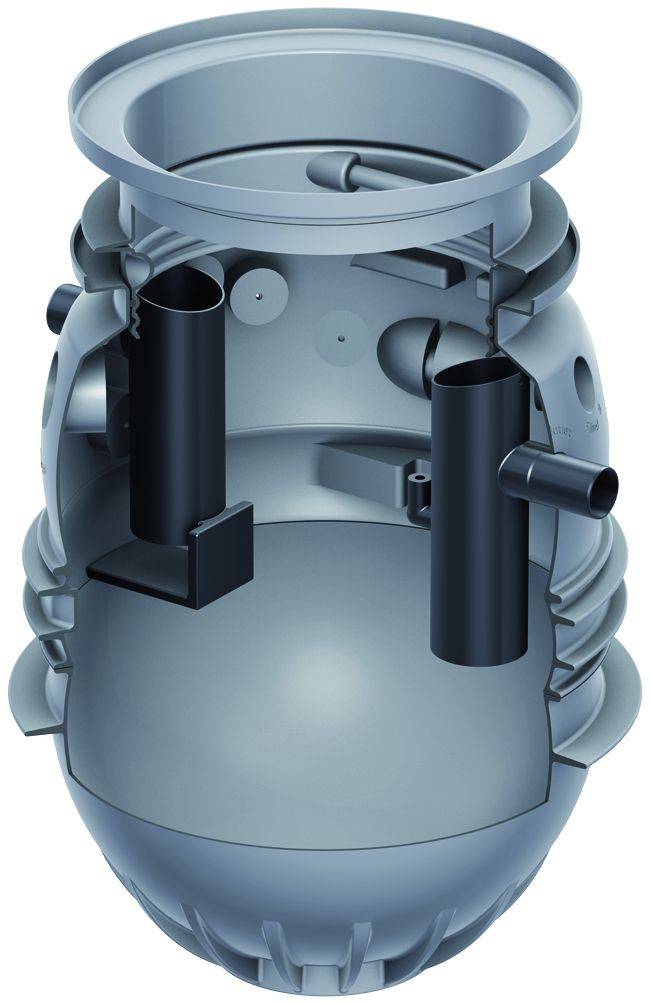

The ACO LipuMax range of below ground grease separators are designed to efficiently separate fats, oils and grease from wastewater.

Using advanced design, materials and manufacturing techniques, roto-moulding technology gives the below-ground tanks the structural integrity to withstand the rigours of site handling and installation as well as hydrostatic forces generated by changing ground water levels.

Delivering optimum durability and with a service life of 50 years, ACO LipuMax grease separators are manufactured, tested and certified in accordance with BS EN 1825.

Features and benefits:

  • Compact and rigid one-piece roto-moulded polyethylene construction.
  • Built-in rib structure provides positive features to key into surrounding concrete.
  • Buoyancy-proof shaft to the top edge of the manhole cover with no in-situ concreating required for D 400.
  • Full load class A15 to D400 capability to BS EN 124.
  • Optional concrete load distribution plate for D400 applications.
  • Certified in accordance with BS EN 1825.
  • High performance and durability.
  • Guaranteed product stability for 50 years
  • Resists ground water to service levels.
  • Reduced slab reinforcement requirements.
  • Reduces risk of drain blockages.
  • Helps keep your kitchen running.

Applications:

  • Hotel kitchens.
  • Restaurants.
  • Hospital clinics and care homes.
  • Large catering establishments.
  • Factory and office canteens.
  • University catering facilities.

Specification data

Product Reference

ACO LipuMax

Type

Lipumax P-B

Lipumax P-D

LipuMax P-DA

LipuMax P-DM

NominalCapacity

NS 2

NS 4

NS 5.5

NS 7

NS 8.5

NS 10

Load class

A15

B125

D400

Standard product features

Type:

  • Lipumax P-B: Emptying and cleaning via shaft manhole cover. Odour build-up during emptying and cleaning.
  • Lipumax P-D: Connection for direct suction. Odour build-up during cleaning.
  • LipuMax P-DA: Connection for direct suction. Completely automatic programme. No odour build-up.
  • LipuMax P-DM: Connection for direct suction. High pressure cleaning operated manually. No odour build-up.

Consult technical literature for further details including sludge trap, storage volume and sizes.
