ACO KerbDrain® SP455

ACO KerbDrain® SP455

Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

ACO Technologies plc

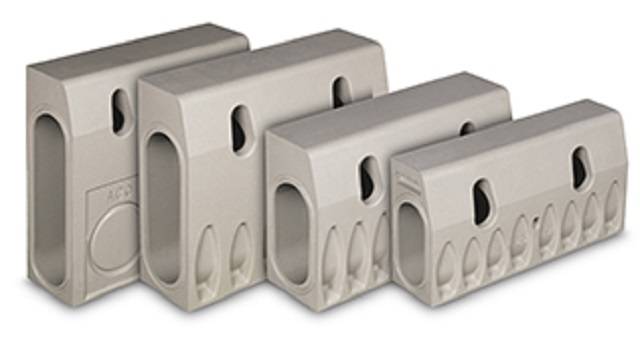

A recycled polymer concrete combined kerb drainage system, 455 mm deep, splayed profile to match a standard SP kerb stone.

Jump to:
+44 (0)1462 816666 www.aco.co.uk
Description

A recycled polymer concrete combined kerb drainage system, 455 mm deep, splayed profile to match a standard SP kerb stone.

ACO KerbDrain® SP455 is available in 0.5m lengths with the following components:

  • Access units
  • Gully units
  • Drop kerbs and centre stones for vehicle crossings
  • Perforated centre stone units
  • Transition units
  • End caps and unions

General information

Uniclass 2015

Pr_25_93_60_12 Combined drainage and kerb unitsPrimary

CAWS

Q10/190 Carriageway kerb and drainage channel systems

Specification data - Combined drainage and kerb units

Product Reference

KerbDrain ® SP455 access unit 500 mm D 400

KerbDrain® HB480 centre stone 915 mm D 400

KerbDrain® Heelguard™ insert for perforated centre stone

KerbDrain® SP380, HB405, HB480 And SP455 multifunctional end cap

KerbDrain® SP455 channel unit 500 mm D 400

KerbDrain® SP455 left-hand drop kerb 915 mm D 400

KerbDrain® SP455 right-hand drop kerb 915 mm D 400

KerbDrain® SP455/HB480 left-hand transition unit 500 mm D 400

KerbDrain® SP455/HB480 perforated centre stone 915 mm D 400

KerbDrain® SP455/HB480 right-hand transition unit 500 mm D 400

Standard product features

Catchment area:

1110 m².

Literature
Third party certifications
  • Kitemark : 538858
