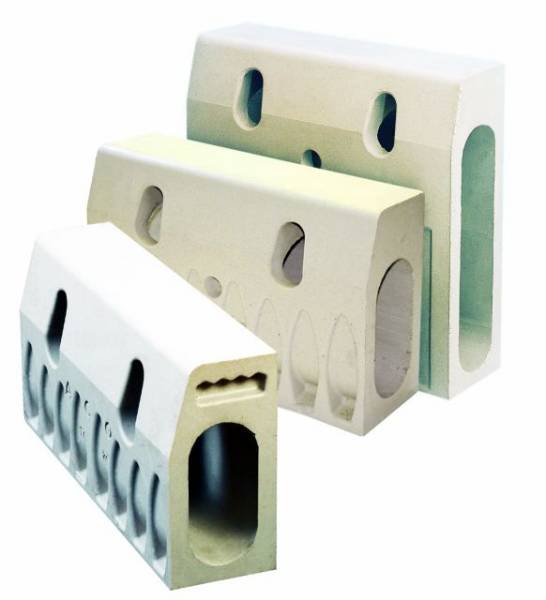

ACO KerbDrain SP480
BSI Kitemark
Certificate type
A recycled polymer concrete combined kerb drainage system, 480 mm deep, splayed profile.
A one-piece, lightweight polymer concrete combined kerb drainage unit for carriageways, roundabouts, local road schemes, car parking and many other applications. ACO KerbDrain conforms to BS EN 1433, load class D400, for kerbside installations. KerbDrain is Kitemarked and complies with the Specification for Highway Works clause 516.
Splayed kerb units are only available in 500 mm lengths and are intended for a maximum kerb upstand of 100 mm.
Uniclass 2015 | |
CAWS | Q10/190 Carriageway kerb and drainage channel systems |
Product Reference | KerbDrain SP480 |
Kerb upstand (maximum) | 100 mm |
Joints | - |
Type | Drain union, PVC-UFoul air trap, PVC-U |
Size | 110 mm diameter160 mm diameter200 mm diameter272 mm diameter |
Gully units | - |
Type | Top and shallow base assemblyTop and deep base assemblyTop and roddable deep base assemblyTop and road gully connector |
Accessories | Top assembly onlyGully bucket |
Accessories | Endcap, closingEndcap, LH inlet/ outletEndcap, RH inlet/ outlet |
Standard product features | Lengths: 500 mm. |
- Kitemark
