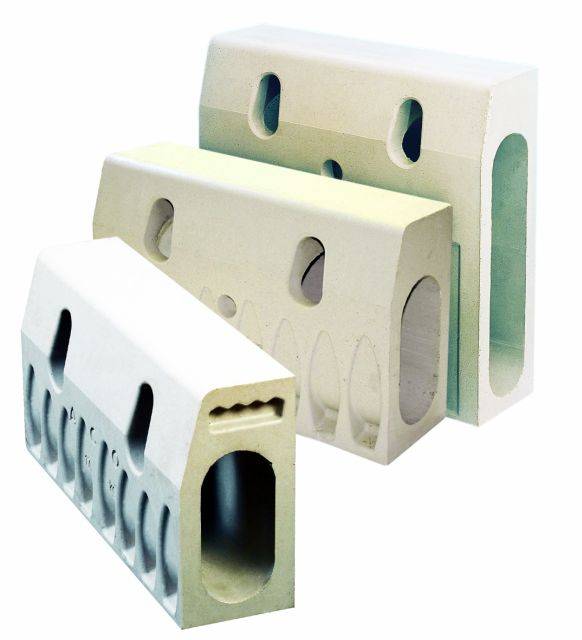

A recycled polymer concrete combined kerb drainage system, 480 mm deep, half battered HB1 profile.
A one-piece, lightweight polymer concrete combined kerb/ drainage unit for carriageways, roundabouts, local road schemes, car parking and many other applications. ACO KerbDrain conforms to BS EN 1433, load class D400, for kerbside installations. KerbDrain is Kitemarked and complies with the Specification for Highway Works clause 516.
Blind kerb units may also be used separately as cable ducts.
Q10/190 Carriageway kerb and drainage channel systems
Kerb upstand (maximum)
Top and shallow base assembly
Top and deep base assembly
Top and roddable deep base assembly
Top and road gully connector
Top assembly only
Bus stop kerb unit
Bus stop kerb LH transition assembly
Bus stop kerb RH transition assembly
Cable loop unit
Centre stone unit
Centre stone unit, perforated, straight
Drop kerb unit, LH
Drop kerb unit, RH
Endcap, junction channel inlet/ outlet
Endcap, LH inlet/ outlet
Endcap, RH inlet/ outlet
Rodding access unit
Standard product features
Standard kerb units are available in 500 mm lengths only.
