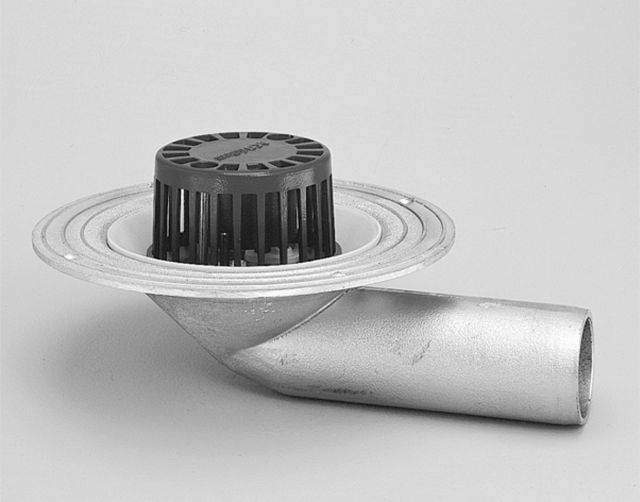

ACO HP 90° spigot outlet
Description

General purpose rainwater outlets with 90° angled spigot suitable for direct connection to cast iron pipework to BS 416 or BS EN 877 or to PVC ‘O’-ring socket pipe. Other connections can be made using ACO Building Drainage flexible couplings or heat shrink sleeving.

General information

Material

[Material, Gun-metal to BS 1400 available to special order. Gun-metal should be specified for use in conjunction with copper or lead-clad roofs or when connected to copper pipes]

LM6 grade aluminium alloy to BS 1490

Specification data

Product Reference

HP 90° spigot outlet

Type

290HP-D

50 mm nominal bore, dome grating.

390HP-D

75 mm nominal bore, dome grating.

490HP-D

100 mm nominal bore, dome grating.

Contractor's choice

As drawing ___

Outlet

Type and direction to suit pipework with suitable adaptors and connections

Accessories

2/3DS deck support

Outlet support plate to metal decks for codes 2 or 3 (50 or 75 mm) outlets.

4/6DS deck support

Outlet support plate to metal decks for codes 4 or 6 (100 or 150 mm) outlets.

2/3RR raising ring

128 mm high raising ring for codes 2 or 3 (50 or 75 mm) circular outlets.

4/6RR raising ring

128 mm high raising ring for codes 4 or 6 (100 or 150 mm) circular outlets.

2/3TG terrace grate

Terrace grate for use with raising ring to codes 2 or 3 (50 or 75 mm) circular outlets.

4/6TG terrace grate

Terrace grate for use with raising ring to codes 4 or 6 (100 or 150 mm) circular outlets.

Contractor's choice

As drawing ___

Standard product features

Material:

LM6 grade aluminium alloy to BS 1490.

Secure gratings:

Gratings are secured with stainless steel fixings that require either a socket wrench or spanner for removal and replacement.

Flow rate (35 mm head over outlet body):

  • 290HP-D: 1.7 L/s.
  • 390HP-D: 3.5 L/s.
  • 490HP-D: 7.0 L/s.

Area drained (rainfall intensity 75 mm/hr):

  • 290HP-D: 81 m².
  • 390HP-D: 171 m².
  • 490HP-D: 336 m².

Weight:

  • 290HP-D: 3.57 kg.
  • 390HP-D: 3.61 kg.
  • 490HP-D: 4.69 kg.

Product Options

Material:

Gun-metal to BS 1400 available to special order. Gun-metal should be specified for use in conjunction with copper or lead-clad roofs or when connected to copper pipes.

Accessories:

  • Deck supports are used where ACO Building Drainage HP rainwater outlets are installed in metal deck roof constructions, providing a stable and secure interface between the outlet and roof. Deck supports are manufactured from 1.5 mm steel sheet and finished primed in a red oxide paint finish. Suitable for all types of metal deck roofing.
  • Raising rings are used where it is necessary to raise the level of the dome grating above the outlet body, for example an inverted roof construction. With the exception of the balcony outlets (HP-BO) and gully outlets (HP-GO), raising rings will only accept dome gratings or terrace grates as the raising rings will not accept the standard flat grates.
  • Terrace grates are designed for installations with terraced paving slabs or block paviors. Terrace grates can only be used with circular raising rings. A slotted fixing detail allows 90° rotational movement to accommodate slab/ pavior patterns.
