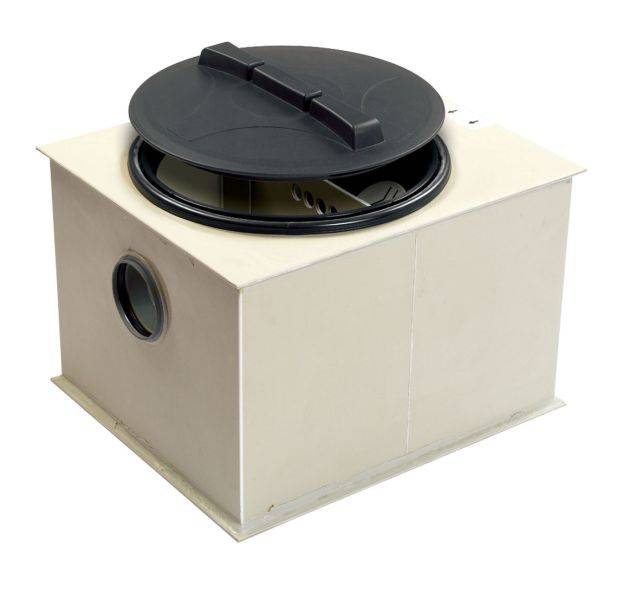

ACO Free Standing Polypropylene Biological Grease Traps
Description

A range of tough, lightweight, corrosion resistant polypropylene biological grease traps for internal above ground new build or refurbishment applications. A wide range of sizes suitable for kitchens, hotels, restaurants, canteens, fast food restaurants, public houses, social clubs and food processing factories. Optional automated dosing facilities for improved reliability and operator convenience.

General information
Features

Manufactured from tough corrosion resistant polypropylene

Lightweight removable polypropylene sediment bucket and roddable foul air trap

110 mm inlet/ outlet connections. Airtight screw-on cover

Uniclass 2015
Pr_65_52_25_06 Below-ground grease traps and convertersPrimary
CAWS

R11/380 Grease traps and converters

Specification data - Below-ground grease traps and converters
Product Reference

FSP50

FSP150

FSP250

Accessories

Not required

FS110/50/40

Conversion kit.

BODD

Battery operated dosing unit.

MODD

Mains operated dosing unit.

Mounting frame

For use with BODD or MODD and with 5 L of activator.

Waste fitting kit

Standard product features

Features:

  • Manufactured from tough corrosion resistant polypropylene.
  • Lightweight removable polypropylene sediment bucket and roddable foul air trap.
  • 110 mm inlet/ outlet connections. Airtight screw-on cover.

Product Options

Product reference:

FSP50:

  • Maximum capacity: 50 meals per day.
  • Maximum flow rate: 2 L/s.
  • Dimensions: 610 x 520 x 440 mm (l x w x h).

FSP150:

  • Maximum capacity: 150 meals per day.
  • Maximum flow rate: 4 L/s.
  • Dimensions: 760 x 660 x 540 mm (l x w x h).

FSP250:

  • Maximum capacity: 250 meals per day.
  • Maximum flow rate: 6 L/s.
  • Dimensions: 930 x 740 x 540 mm (l x w x h).

Accessories:

FS110/50/40:

  • Conversion kit to connect the grease trap to either 40 mm or 50 mm push fit or solvent welded waste pipes to BS 5254 and BS 5255. Kit comprises two off stainless steel 110 mm to 50 mm concentric male/ male reducers and appropriate plastic fitting connections. Depending upon the installation, flow limitations may be experienced.

BODD:

  • Microprocessor controlled dosing – delivers up to 75 mL of biological activator per minute, programmable via LCD display touch pad input panel.
  • Water resistant ABS enclosure conforms to IP 66.
  • Supplied with PVC tubing, tube connectors and operating instructions.
  • Operated by four 'D' cell batteries (not supplied).

MODD:

  • Microprocessor controlled dosing – delivers up to 210 mL of biological activator per minute, programmable via LCD display touch pad input panel.
  • Incorporates battery timeclock back up in the event of power failure.
  • Allows up to two traps to be dosed by one pump.
  • Water resistant ABS enclosure conforms to IP 66.
  • Supplied with PVC tubing, tube connectors and operating instructions.

Mounting frame:

  • Manufactured in brushed grade 304 stainless steel.
  • Houses 5 L activator.
  • Can be wall or floor mounted and has reversible door for right or left hand opening.
  • Dimensions: 642 x 265 x 170 mm (h x w x d).

Waste fitting kit:

  • Swept T connection connects all push fit and solvent weld 40 mm and 50 mm waste pipes to BS 5254 and BS 5255.
