ACO EuroCover®
Description

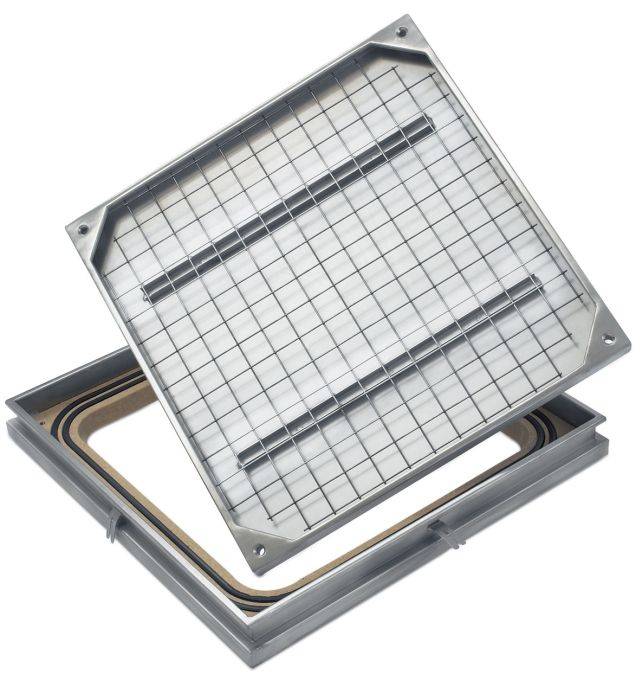

EuroCover® is a double sealed recessed access cover for use in such applications as food and drink processing plants, leisure centres, chemical and pharmaceutical plants, shopping centres and hospitals. EuroCover® is designed to solve the installation and service issues associated with traditional fabricated access covers. EuroCover® combines highly corrosion resistant austenitic stainless steel and polyester resin concrete to produce a reliable air/ water tight installation. Covers are supplied with a four-point locking system, creep-resistant double EPDM seal and grit seal between cover and frame

Suitable for floor finishes of up to 15 mm thickness.

General information

Material

304 grade austenitic stainless steel/ resin concrete

316 grade austenitic stainless steel/ resin concrete

Features

EuroCover® is designed to accept a wide range of flooring finishes including Epoxy, polyurethane and concrete screeds, terrazzo, ceramic tiles and vinyl sheet flooring

Specification data

Product Reference

EuroCover®

Type

See 'Options' below and insert product reference.

Material

304 grade austenitic stainless steel/ resin concrete

316 grade austenitic stainless steel/ resin concrete

Cast in frame

Corrosion resistant 304 grade austenitic stainless steel with integral anchors

Corrosion resistant 316 grade austenitic stainless steel with integral anchors

Accessories

Not required

49069 - EuroCover® lifting key

49562 - EuroCover® vinyl clamp kit 300 x 300 mm

49428 - EuroCover® vinyl clamp kit 450 x 450 mm

49429 - EuroCover® vinyl clamp kit 600 x 450 mm

49430 - EuroCover® vinyl clamp kit 600 x 600 mm

49563 - EuroCover® vinyl clamp kit 750 x 600 mm

49564 - EuroCover® vinyl clamp kit 750 x 750 mm

Standard product features

Features:

EuroCover® is designed to accept a wide range of flooring finishes including Epoxy, polyurethane and concrete screeds, terrazzo, ceramic tiles and vinyl sheet flooring.

Product Options

Type:

  • 49550 - EuroCover® 450 x 450 mm Double Sealed Access Cover - FACTA AAA.
  • 49551 - EuroCover® 600 x 450 mm Double Sealed Access Cover - FACTA AAA.
  • 49552 - EuroCover® 600 x 600 mm Double Sealed Access Cover - FACTA AAA.
  • 49553 - EuroCover® 450 x 450 mm Double Sealed Access Cover - FACTA D.
  • 49554 - EuroCover® 600 x 450 mm Double Sealed Access Cover - FACTA D.
  • 49555 - EuroCover® 600 x 600 mm Double Sealed Access Cover - FACTA D.
  • 49556 - EuroCover® 300 x 300 mm Double Sealed Access Cover - FACTA AAA.
  • 49557 - EuroCover® 300 x 300 mm Double Sealed Access Cover - FACTA D.
  • 49558 - EuroCover® 750 x 750 mm Double Sealed Access Cover - FACTA AAA.
  • 49559 - EuroCover® 750 x 750 mm Double Sealed Access Cover - FACTA D.
  • 49560 - EuroCover® 750 x 600 mm Double Sealed Access Cover - FACTA AAA.
  • 49561 - EuroCover® 750 x 600 mm Double Sealed Access Cover - FACTA D.

Material:

Corrosion resistant 304 grade austenitic stainless steel/ resin concrete construction. Also available in 316 grade austenitic stainless steel/resin concrete for superior corrosion resistance to special order.

Accessories:

For flexible sheet flooring applications the EuroCover® is available with the ACO Vinyl Seal® system which enables flexible vinyl sheet flooring to be fitted to stainless steel recessed access covers and frames.
