A range of compact stainless steel floor gullies for domestic, commercial and industrial applications.

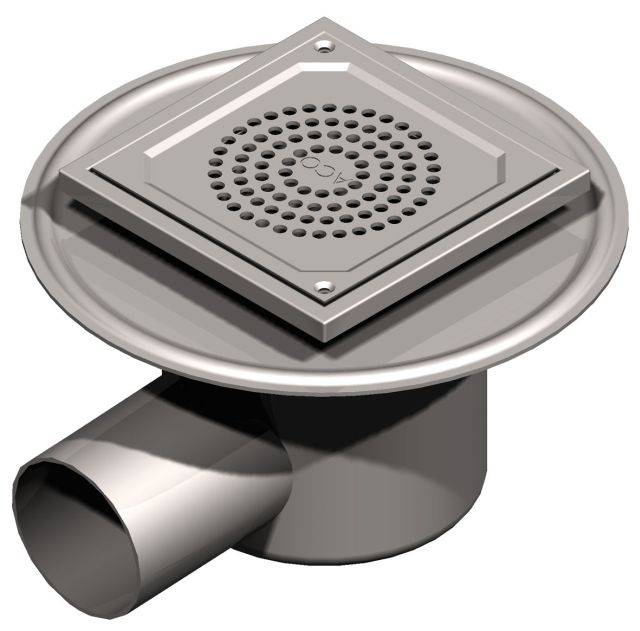

The EG150 range of Eurogullies are designed to provide hygienic, quick, simple and economic trapped drainage solutions for light industrial use, washrooms, ‘wet’ bathrooms, changing rooms, swimming pools, hotels, apartments and toilets. Manufactured in austenitic 304 grade stainless steel as standard, excellent corrosion resistance is guaranteed. Optional 316 grade stainless steel for aggressive applications is available on all gullies. ACO Building Drainage EG150 Eurogullies are supplied with perforated gratings as standard ensuring no risk to bare feet or stiletto heels.
FACTA load class: A
Removable in-line foul air trap fitted as standard, flow rate 1.2 L/s. 50 mm water seal meets requirements of BS EN 1253
Telescopic height variant providing full 360° rotation and +/- 7.5° pitch and roll adjustment
Smooth contour design minimizes bacteria traps
110 mm diameter vertical spigot outlet; 75 mm horizontal spigot outlet
Ends stops provided preventing accidental dismantling on telescopic variants
Three back inlet variant available, supplied with fully interchangeable adaptors to suit 32 mm / 1.25” to BS 5254 and 40 mm / 1.5” to BS 5255 waste pipes
R11/315 Floor drains
R11/5 Floor drains
EG150 Eurogullies for damp proof membrane bonding
Variable invert 212–242 mm.
Variable invert 212–242 mm c/w 3 side inlets.
Variable invert 120–150 mm.
Variable invert 213–243 mm c/w 3 side inlets.
Variable invert 120–150 mm c/w 3 side inlets.
Standard product features
ACO 157 Fixed Height Gully
ACO 157 Telescopic Gully
ACO 218 Fixed Height Gully
ACO 218 Telescopic Gully
ACO 357 Fixed Height Gully
ACO EG150 Eurogullies For Cementitious/ Resin Screed And Tile Application
ACO EG150 Eurogullies For Cementitious/ Resin Screed and Tile Applications With Top For Mesh Grate
ACO EG150 Eurogullies For Vinyl Sheet Flooring
ACO Fixed Height Eurogullies – Round
ACO Fixed Height Eurogullies – Square
