ACO EG150 Eurogullies For Cementitious/ Resin Screed and Tile Applications With Top For Mesh Grate

ACO EG150 Eurogullies For Cementitious/ Resin Screed and Tile Applications With Top For Mesh Grate

ACO Technologies plc

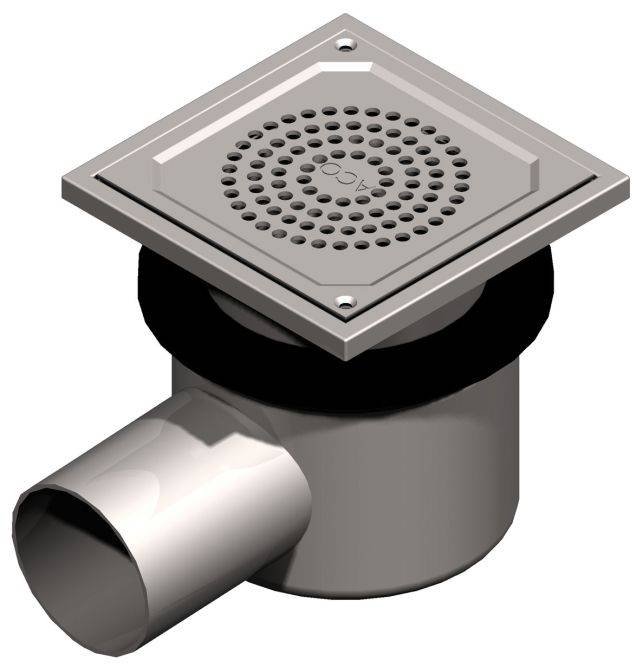

A range of compact stainless steel floor gullies for commercial and industrial applications.

Jump to:
+44 (0)1462 816666 www.aco.co.uk
Description

The EG150 range of Eurogullies are designed to provide hygienic, quick, simple and economic trapped drainage solutions for light industrial use, washrooms, ‘wet’ bathrooms, changing rooms, swimming pools, hotels, apartments and toilets. Manufactured in austenitic 304 grade stainless steel as standard, excellent corrosion resistance is guaranteed. Optional 316 grade stainless steel for aggressive applications is available on all gullies.

General information

Features

FACTA load class: A

Removable in-line foul air trap fitted as standard, flow rate 1.2 L/s. 50 mm water seal meets requirements of BS EN 1253

Telescopic height variant providing full 360° rotation and +/- 7.5° pitch and roll adjustment

Smooth contour design minimizes bacteria traps

110 mm diameter vertical spigot outlet; 75 mm horizontal spigot outlet

Show more

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/315 Floor drains

R11/5 Floor drains

Specification data - Floor gullies

Product Reference

EG150 Eurogullies for cementitious/ resin screed and tile applications with top for mesh grate

GullyType

EG150FVLM/110

Fixed invert 105 mm.

EG150TVM/110

Variable invert 212–242 mm.

EG150TVM3i/110

Variable invert 212–242 mm c/w 3 side inlets.

EG150THLM/110

Variable invert 120–150 mm.

EG150THLM3i/110

Variable invert 213–243 mm c/w 3 side inlets.

Steel grade

304

316

Mesh grate type

EG150AS

142 x 142 mm anti-slip mesh.

EG150PL

142 x 142 mm plain mesh.

Sieve

Not required

EG150SI

Standard product features

Features:

  • FACTA load class: A.
  • Removable in-line foul air trap fitted as standard, flow rate 1.2 L/s. 50 mm water seal meets requirements of BS EN 1253.
  • Telescopic height variant providing full 360° rotation and +/- 7.5° pitch and roll adjustment.
  • Smooth contour design minimizes bacteria traps.
  • 110 mm diameter vertical spigot outlet; 75 mm horizontal spigot outlet.
  • Ends stops provided preventing accidental dismantling on telescopic variants.
  • Three back inlet variant available, supplied with fully interchangeable adaptors to suit 32 mm / 1.25” to BS 5254 and 40 mm / 1.5” to BS 5255 waste pipes.

Product Options

Mesh grate:

A slip resistant or plain mesh grating is available.
