ACO Direct Couple Gullies
Description

A range of one-piece floor drains with vertical 110 mm dia outlet, optional odour trap and with a range of stainless steel and copper alloy gratings, airtight solid covers and accessories. Solid cover options allow rodding access to drainage systems.

General information

Material

[Material, Gratings and solid covers available in either stainless steel or copper alloy]

-

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/315 Floor drains

R11/5 Floor drains

Specification data - Floor gullies

Product Reference

Direct Couple Gullies

Body

ACO one piece circular, 168 mm diameter gully top for screed

ACO one piece circular, 225 mm for clamped sheet vinyl floor

ACO one piece square, 150 x 150 mm gully top for tiles and screed

ACO one piece square, 171 x 171 mm gully top for welded sheet vinyl floor

As drawing ___

As schedule ___

Grate

-

Material

304 stainless steel

Copper alloy

Style

Arco

Classic

Slip resistant perforated

Linea

Mondo

Perforated

Pop

Quadrato

Slotted

Standard

Traditional

Wave

Wellness

Solid covers

Supplied complete with double EPDM seal.

Accessories

Not required

300 mm slab penetration unit

Odour trap

Standard product features

Load class:

  • Gratings Load Class K3 to BS EN 1253.

Flow rate:

  • 1.2 litres/second.

Product Options

Material:

  • Gratings and solid covers available in either stainless steel or copper alloy.

Floor finish:

  • A range of products are available for use in tiled, sheet vinyl and resin/ screeded floors.

Body arrangement, size and grate options:

  • ACO one piece circular gully top, 168 mm diameter with 110 mm diameter vertical spigot outlet manufactured from 304 stainless steel for direct connection to underground drainage systems. Supplied without an odour trap. Suitable for screed applications. Lockable, circular slotted gratings are available in either 304 stainless steel or copper alloy.
  • ACO one piece circular sheet vinyl floor gully top complete with mechanical flooring clamp with 110 mm diameter spigot outlet manufactured from 304 stainless steel for direct connection to underground drainage systems. Supplied without an odour trap. Suitable for sheet vinyl applications. Gratings are available in either perforated or slotted style from either 304 stainless steel or copper alloy. A stainless steel grating is also available which offers enhanced grip.

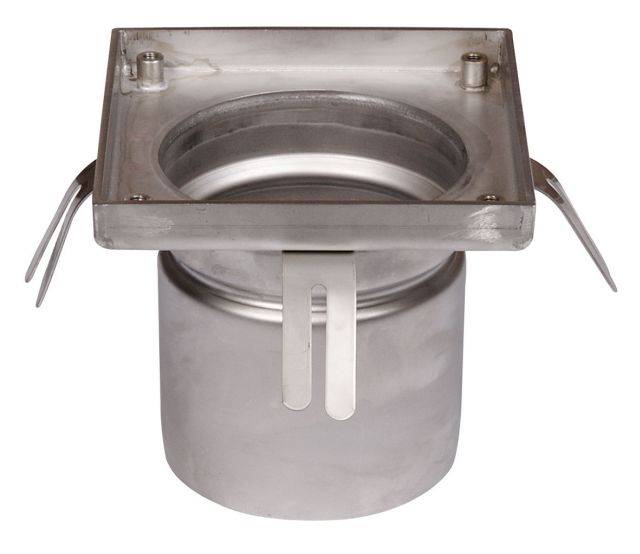

  • ACO one piece square gully top, 150 x 150 mm with 110 mm diameter spigot outlet manufactured from 304 stainless steel for direct connection to underground drainage systems. Supplied without an odour trap. Suitable for tiled and screed applications. Gratings are available in a variety of styles.
  • ACO one piece square gully top, 171 x 171 mm with 110 mm diameter spigot outlet manufactured from 304 stainless steel complete with ACO Vinyl Seal® for direct connection to underground drainage systems. Supplied without an odour trap. Suitable for sheet vinyl applications. Gratings are available in a variety of styles.
  • A range of stainless steel and copper alloy gratings and covers available. Solid covers supplied complete with EPDM double seal.
